8.1.1 Select UI Card (Select universal input card)

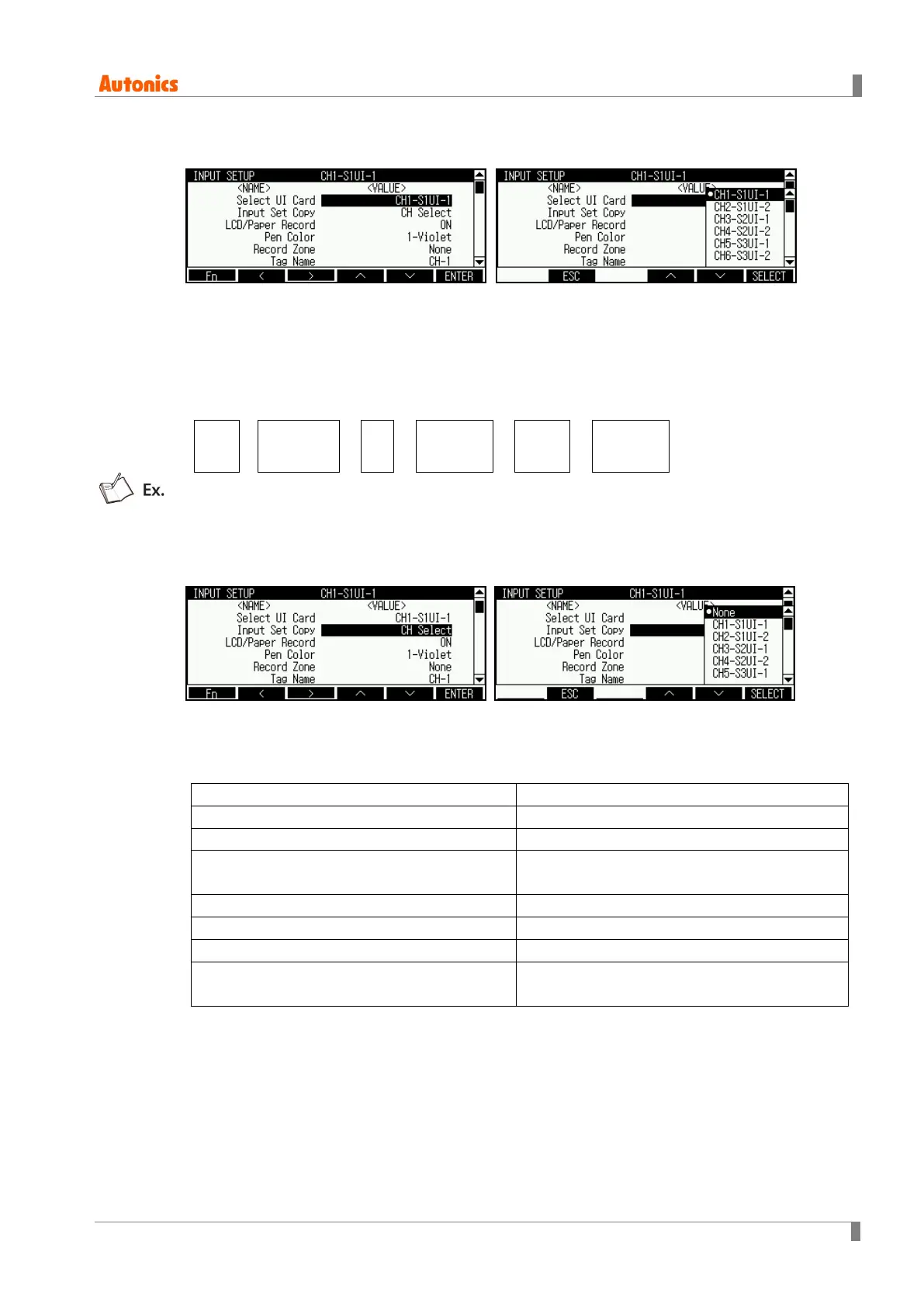

Select the channel of universal input card (KRN-UI2) to be set.
One universal input card has two channels.
KRN100 automatically searches slot connected universal input card (KRN-UI2) and displays as
channel as soon as power is ON.
Channel name form is as below.
CH
Channel
number
- S
Slot
number
UI -
card
input
CH06-S3UI-2: It means 6th channel and 2nd input of 3rd slot connected universal input card.
8.1.2 Input Set Copy (Copy input parameter)
You do not need to repeat the setting of same parameter for each channel. KRN100 copies set
values of the set-completed channel to other channels.
Copyable parameters are as following.
Input Type (Input specification) Range/Scale point (Decimal point)
Display/Temp Unit (Display/Temperature unit) Low Scale (Lower limit scale)
High Scale (Upper scale) Special Function (Special function)
Two Unit (Display the degree of a vacuum, static
pressure)
Reference Chanel (Reference channel)
Input Bias (Error correction) Span (Gradient adjustment)
Record Method (Data storage method) Filter Type (Input digital filter)
Filter Counter (The number of digital filter) Burnout Action (Display setting for break)
High Range & Graph Scale (Upper limit input value and
graph scale value)
Low Range & Graph Scale (Lower limit input value and
graph scale value)
Setting range: None/CH□-S□UI-□
Factory default: CH Select
