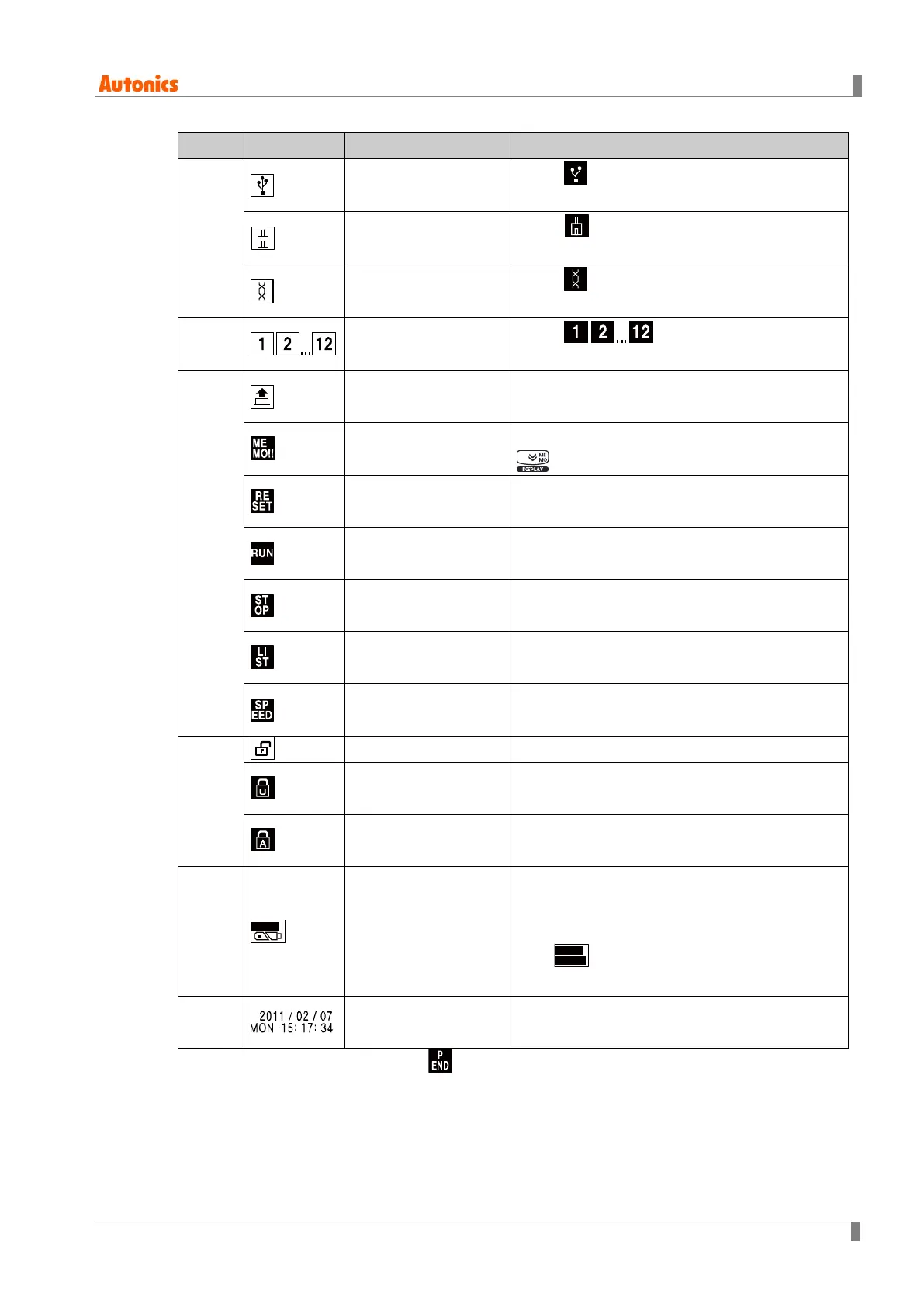

6 Display
© Copyright Reserved Autonics Co., Ltd. 37
3
USB communication
icon
Marks icon during Modbus RTU
communication using USB.
Ethernet
communication icon
Marks icon during ModBus TCP
communication using Ethernet.
RS485 communication
icon
Marks icon during Modbus RTU
communication using RS485.
4
Alarm ON icon
Marks channel icon which alarm
occurs.
5
Digital input(DI) icon
Marks the below icon according to input function
setting during digital input (DI).
Digital input(DI)- memo
icon
Marks it when digital memo of digital input or front
is input in recording status.
Digital input(DI)- alarm
reset icon
Marks it when alarm reset signal of digital input
(DI) is input.
Digital input(DI)- start
record icon
Marks it when start record signal of digital input
(DI) is input.
Digital input(DI)- stop
record icon
Marks it when stop record signal of digital input
(DI) is input.
Digital input(DI)- LIST
output icon
Marks it when LIST output signal of digital input
(DI) is input.
Digital input(DI)- record
speed icon
Marks it when changing record speed signal of
digital input (DI) is input.
6
Unlock icon Marks it for unlock status.
User(general user) lock
icon
Marks it for user (general user) lock status.
Administrator lock icon
Marks it for administrator and general user lock
status.
7
Inner and external
(USB) memory capacity
icon
Displays data capacity of internal memory as bar
graph. When an USB memory is connected, it
displays data capacity of an USB memory as bar
graph . If used memory capacity is over 90%
of total capacity, it flashes.
8
Date/Time display
Displays current date and time. In summer time
season, (S) mark is also displayed at front of year.
※1. If there is no recording paper, icon flashes. After replacing recording paper, P.END
BACKUP PRINT screen as below is activated.
Backup data recording function by P.END is same as RECORD BACKUP. Backup Data List
cannot be changed.
