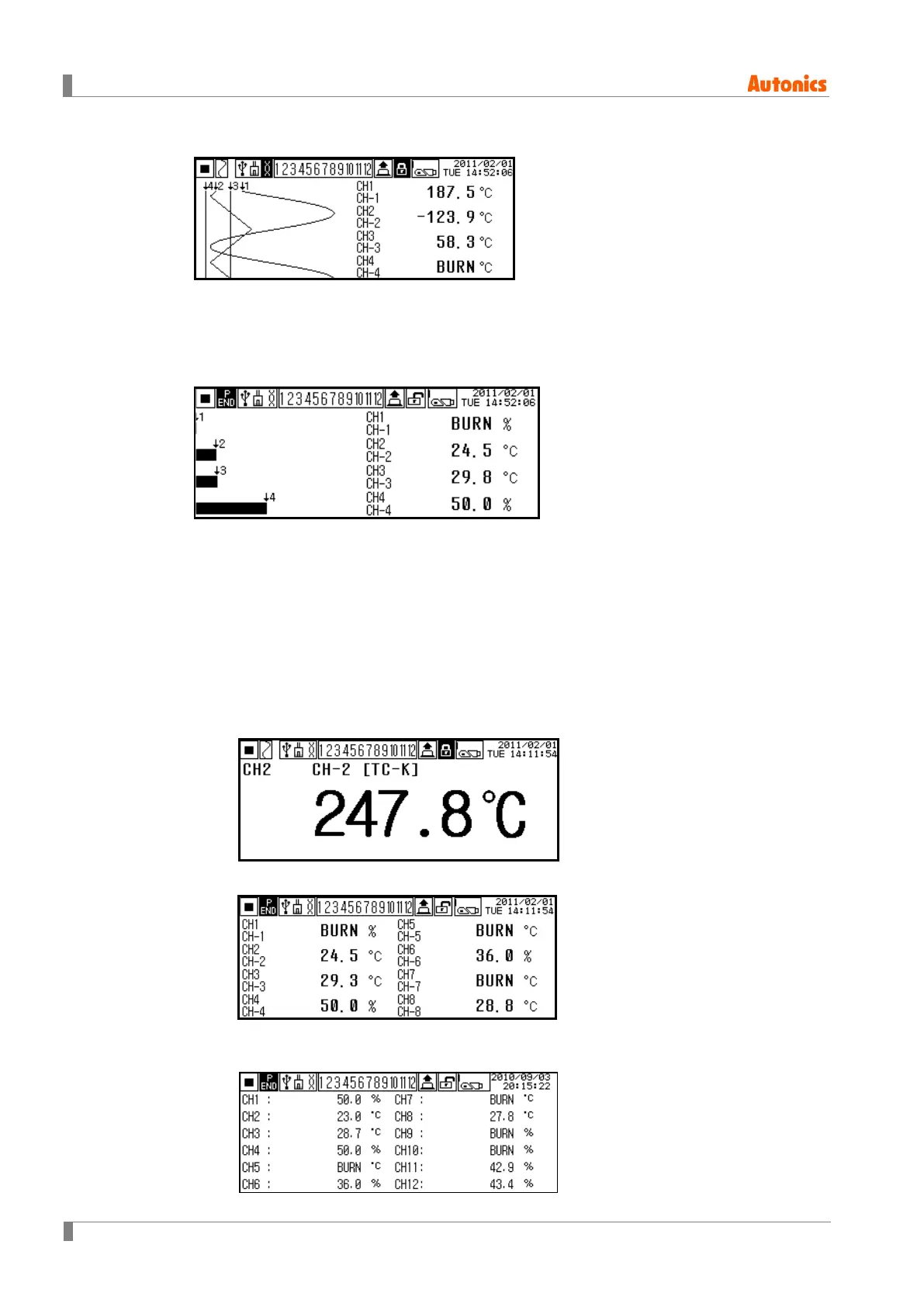

(1) Trend graph
Displays input measuring value of each channel as trend graph (left) and digital number
(right).
4 channels are displayed per one screen. To switch channel, please refer to “7.1.2 Channel
switch".
(2) Bar graph
Displays input measuring value of each channel as bar graph (left) and digital number
(right). You can easily check present measuring value within the set display range as level
(%).
4 channels are displayed per one screen. To switch channel, please refer to “7.1.2 Channel
switch".
(3) Digital number
Displays input measuring value of each channel as digital number.
Digital number display is divided as 1 channel digital number, 8 channels digital number, 12
channels digital number.
Display of 1 channel digital number: Displays 1 channel per 1 screen with big font size.
It has high visibility.
Display of 8 channels digital number: Displays 8 channels per 1 screen.
Display of 12 channels digital number: Displays 12 channels (all channels) per 1
screen.
