5 NVR System Setup
Camera: Select the camera you want to congure.
Detection Type: Choose the detection target objects.
Rule Number: Max. 4 rules available.
Rule Switch: Activate or inactivate the rule.
Rule type: Detection direction from B A or A B
Dynamic Marking: If you enable this option, a capture box will be displayed upon the detected objects in
both live view images and recording les.
1. Choose one of the Rule Number. It is the number of TD lines. You can draw a maximum of 4 lines.
2. Choose the detection target type.
3. To enable the detection in Rule Switch.
4. Choose a Rule type.
A B: NVR will only detect the action from side A to side B;
B A: NVR will only detect the action from side B to side A;
A B: NVR will detect the action from either side B to side A or side A to side B.

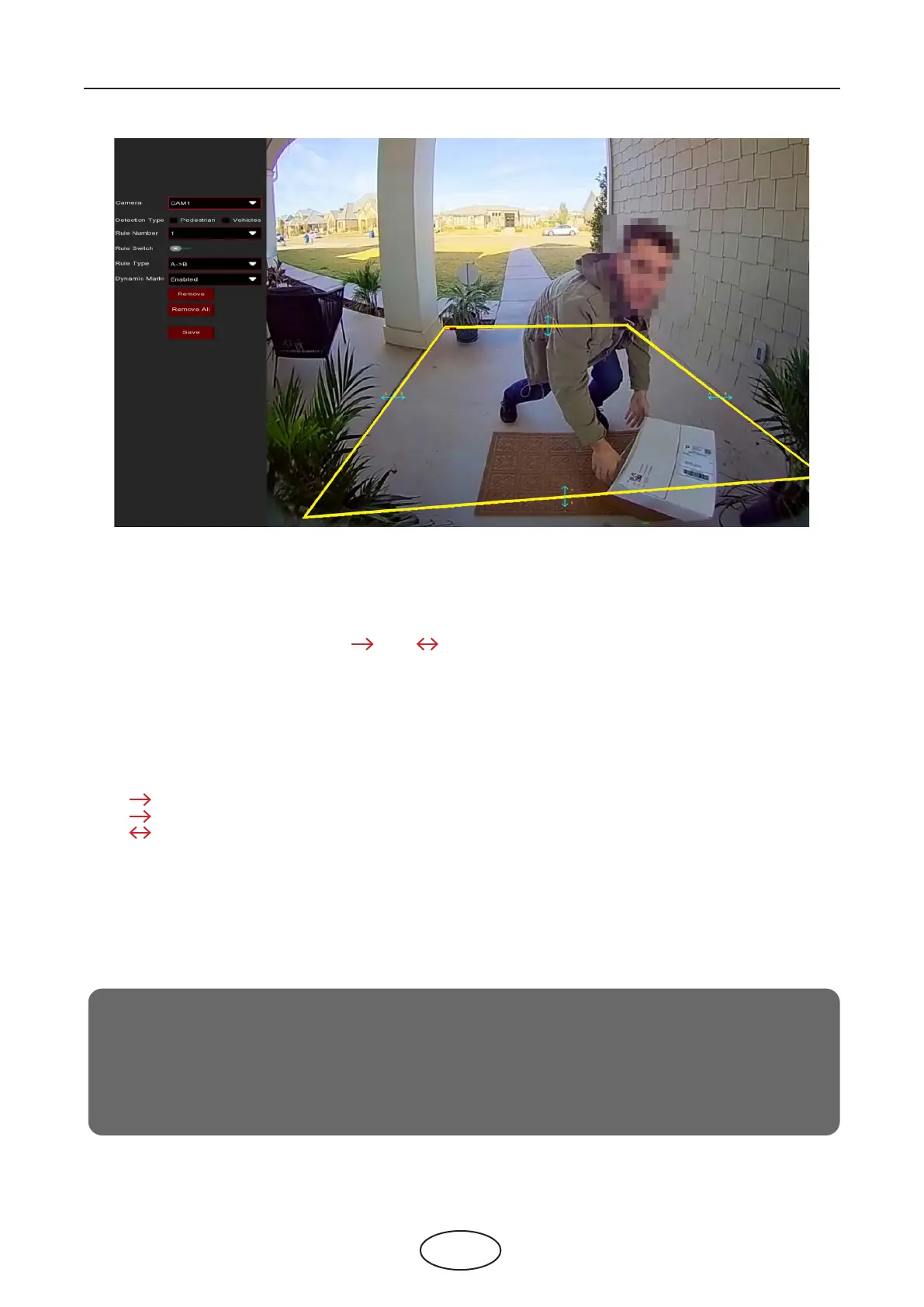

5. Use your mouse to click 4 points in the camera picture to draw a virtual line. The shape of the region
should be a convex polygon. Concave polygon will not be able to save.
6. Click Save to save your settings.
7. If you want to modify the position or shape of region, click the red box in the region, the borders of the
region will be changed to red color. Click and hold the left button of your mouse to move the position
of the region, or drag the corners to resize the region.
8. If you want to remove one of the regions from the camera picture, click the red box in the region and
then click the Remove button. Clicking Remove All will delete all regions.
Notice:
1.
The perimeter can not be too close to the edges/corners of the camera picture, this will fail to
trigger the detection when the target passes through the edges/corners.
2.
The shape of the regions can not be too narrow/small, this will fail to trigger the detection
when the target passes outside the perimeter.
