Table 36: Frequency Mode Parameters (cont'd.)
The drive frequency setpoint when the drive
is in the alternate run mode “Run Mode 2”.
Note that triggers can be used to transition
the drive between the normal running mode
and the alternate running modes “Run Mode
2” and “Run Mode 3”.
The drive frequency setpoint when the drive
is in the alternate run mode “Run Mode 3”.
Note that triggers can be used to transition
the drive between the normal running mode
and the alternate running modes “Run Mode
2” and “Run Mode 3”.
5.6.2
Current Control Mode
Control mode in which the drive speed is varied in an attempt to provide a fixed output current.
Current Control is sometimes used in gassy wells – when a pump encounters a gas pocket, the
load will be reduced, and the output current of the drive will drop. The drive will speed up in an
attempt to clear the gas pocket from the pump. If the gas pocket clears, the load will return, and
the drive speed will slow back to the speed needed to maintain the specified current setpoint.

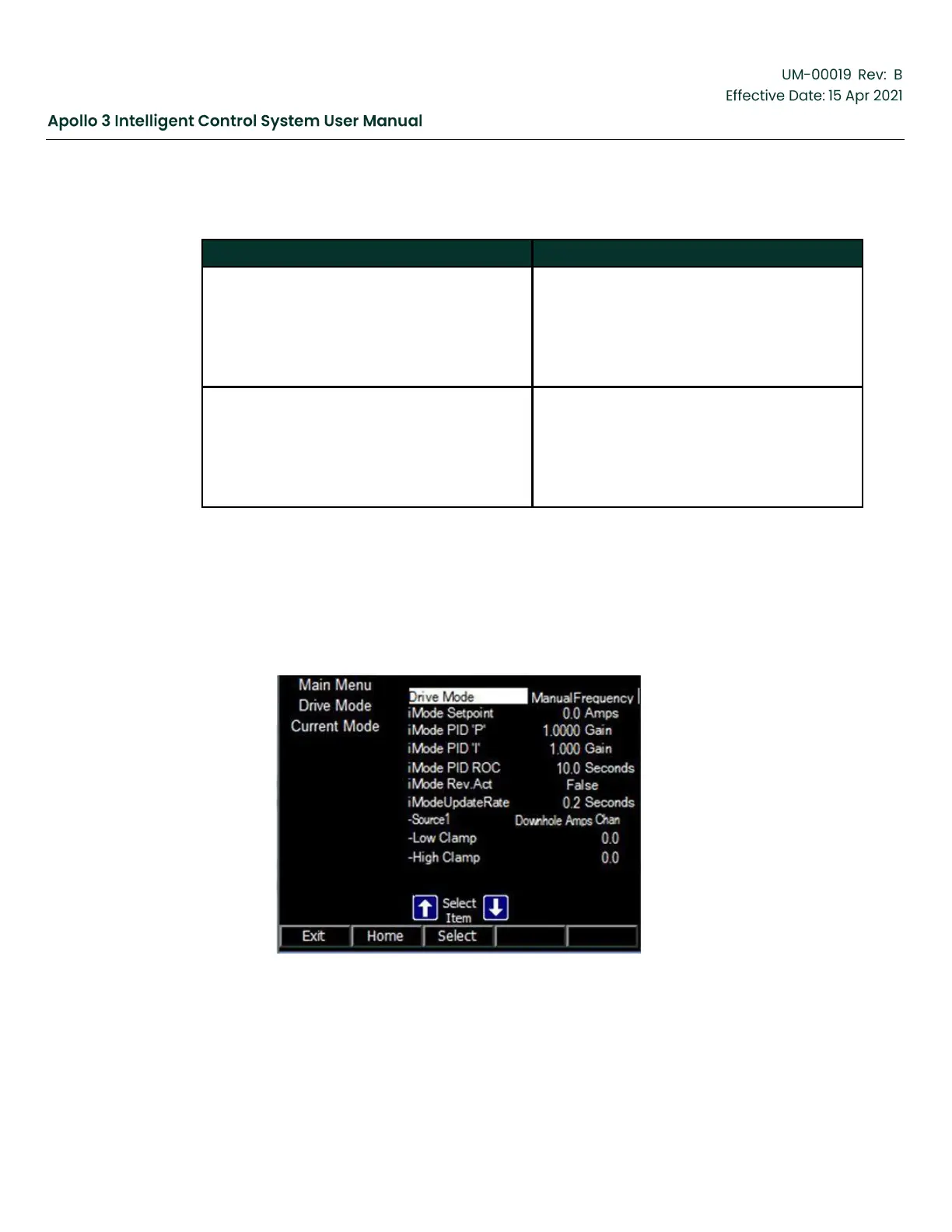

Figure 121: Current Control Mode Screen
