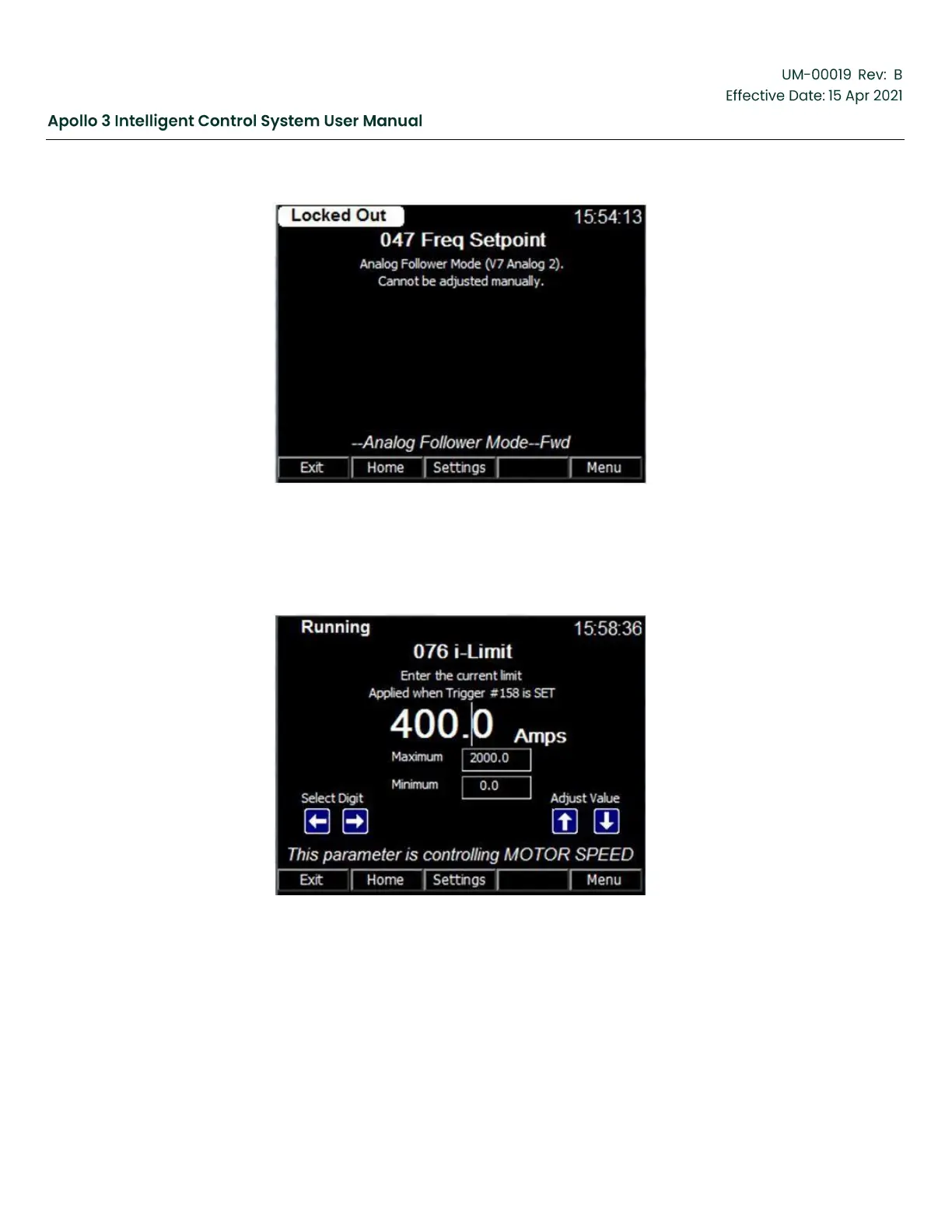

Figure 43: Setpoint Screen (Analog Follower Mode)
•
Limit: I-Limit is not a drive mode. However, if the I-Limit has been set and is currently
controlling the drive frequency, the I-Limit setting is displayed instead of the current drive
mode setpoint screen.
Figure 44: Setpoint Screen (I-Limit Controlling Pump Speed)
Keypad Functions:
F1: “Exit” – Exits the settings screen.
F2: “Home” – Closes the current screen and displays the Home screen.
