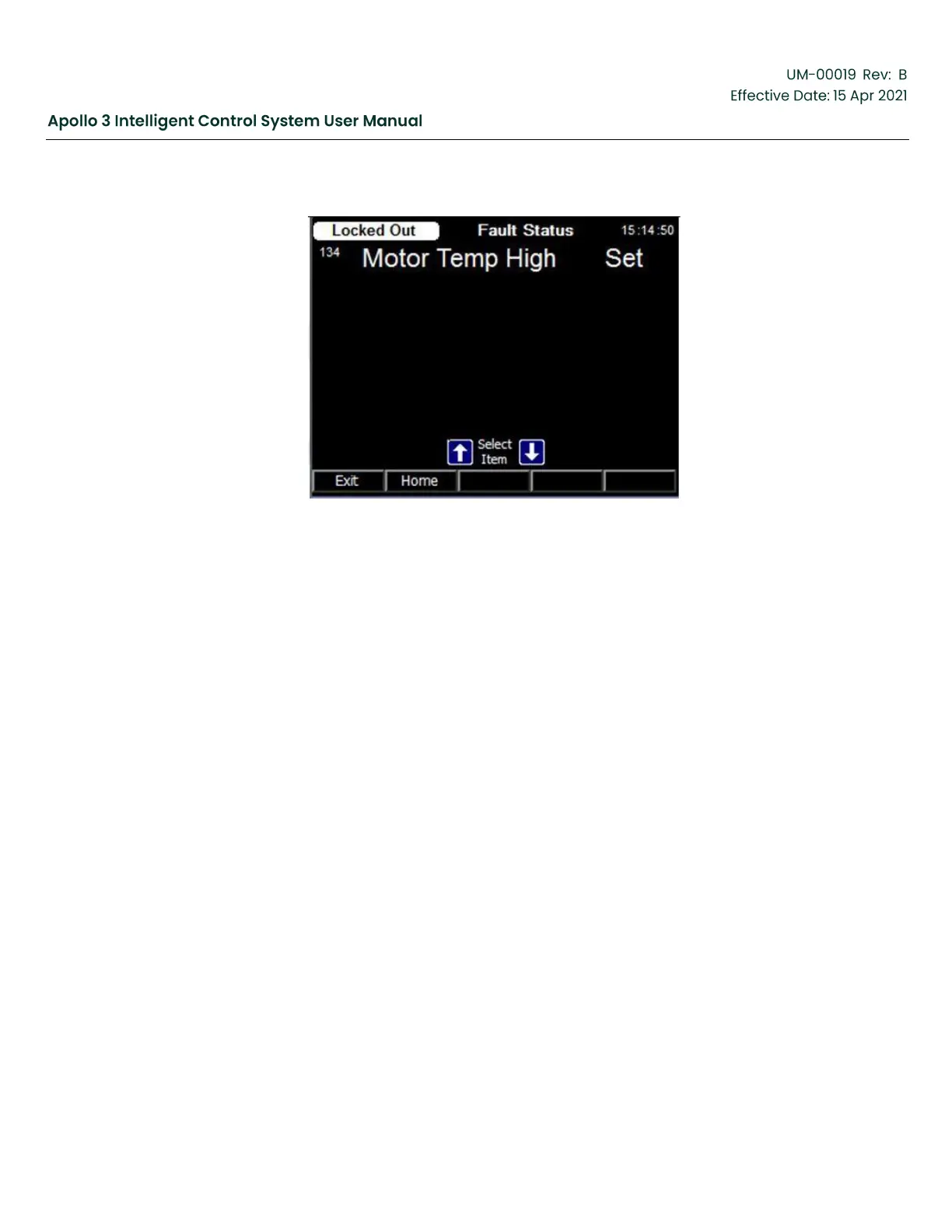

Figure 50: Fault Status Screen
Drive State: Stopped-FAULT
On a state transition to Stopped-FAULT, the Fault Status screen is automatically displayed.
The active fault or faults will be displayed.
The screen will have a Flashing warning displayed informing the user that the drive will automatically restart
after the listed fault(s) clear.
When the fault(s) clear, the drive will enter the restart state and the Restart Automatic screen will be
displayed.
