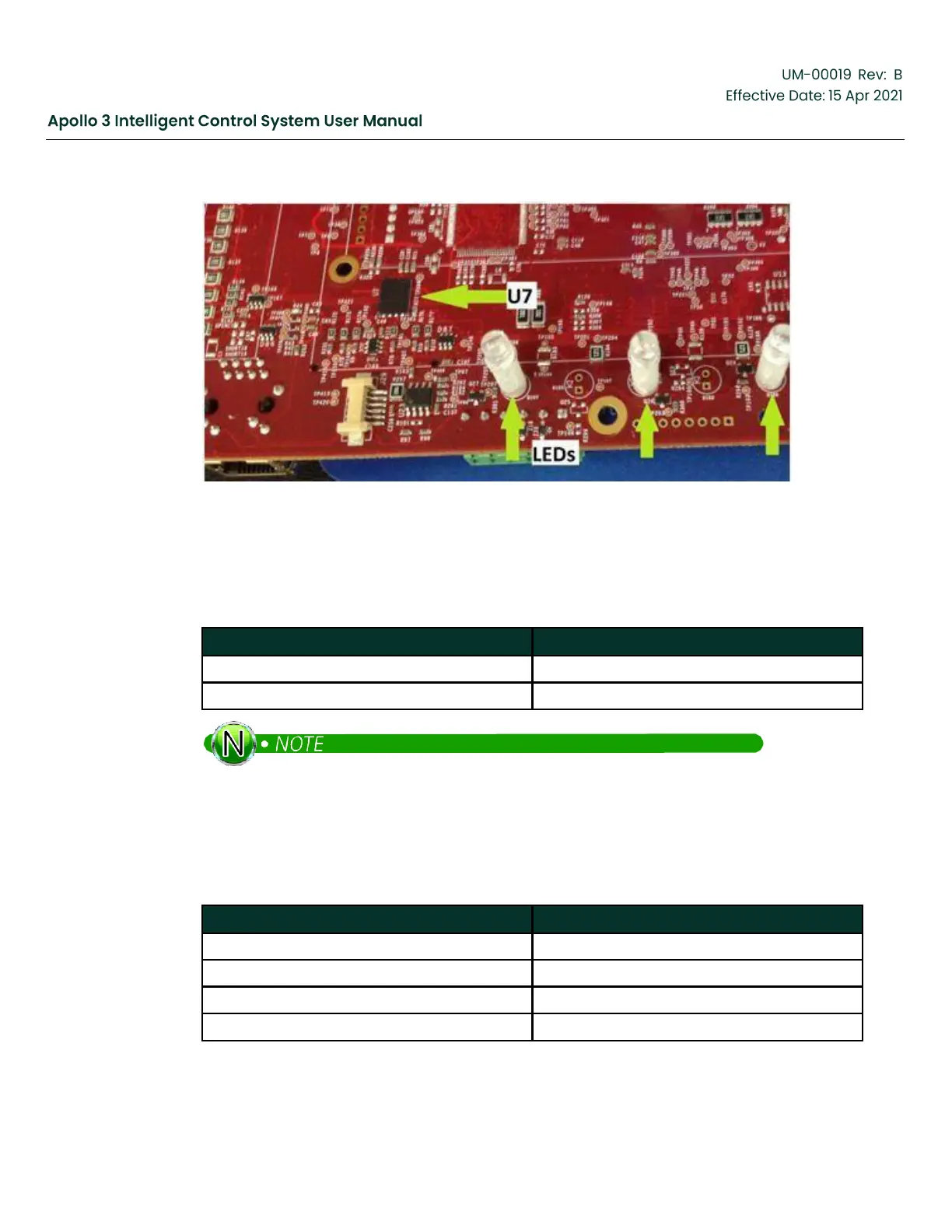

Figure 4: SPI Data Flash

The Expansion Port (COM2) can be configured as RS-232 or RS-485 by installing the

appropriate Expansion Port Module. Module part numbers are:

Table 4: Module Part Numbers

Module

Part Number

Expansion Port Module RS-232

129112

Expansion Port Module RS-485

800638

The Apollo system comes with the RS-232 port module pre-installed unless

special-ordered.

The following USB devices have been tested with the Apollo HMI and have been given a part

number.

Table 5: USB Devices Part Number

Device

Part Number

Wireless mini-keyboard

197705

4GByte USB Flash Drive

810280

USB to WIFI Adapter

197350

USB to RS-232 Serial Adapter

197349
