3.2.8

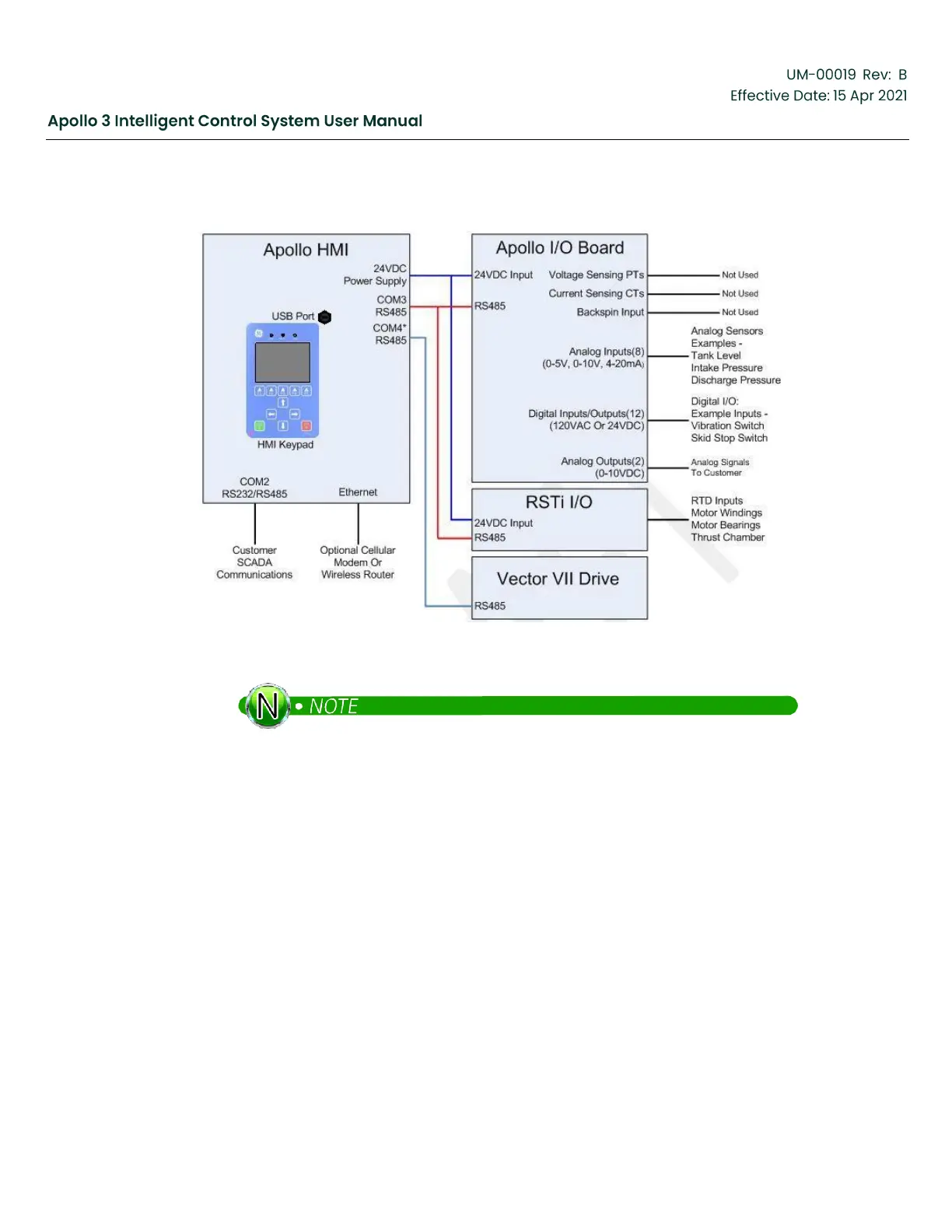

Block Diagram–Apollo System in a Vector VII or Vector Plus SPS Application
Figure 23: Apollo System in a Vector VII or Vector Plus SPS Application
•
The RSTi I/O is only required in systems with RTD sensors.
•
Apollo version 3 also works with the BH Vector Plus VSD.
3.3
Hardware Installation
The Apollo Intelligent Control System can be installed in new Baker Hughes manufactured Vector Plus
Variable Speed Drives. It can also be provided in component form suitable for installation in existing Baker
Hughes legacy drives.
New Vector Plus Variable Speed Drives equipped with the Apollo Intelligent Control System will have
the Apollo HMI installed at the factory. For new Vector Plus drive applications that require additional I/O
or a Baker Hughes Downhole sensor, the Apollo I/O Board Assembly and ESP DSI Assembly will
usually
also be installed at the factory.
The Apollo Intelligent Control System can be added to an existing Vector VII drive if that Vector VII drive is
equipped with the new style Vector VII Operator Control Panel.
