Page 181 of 277

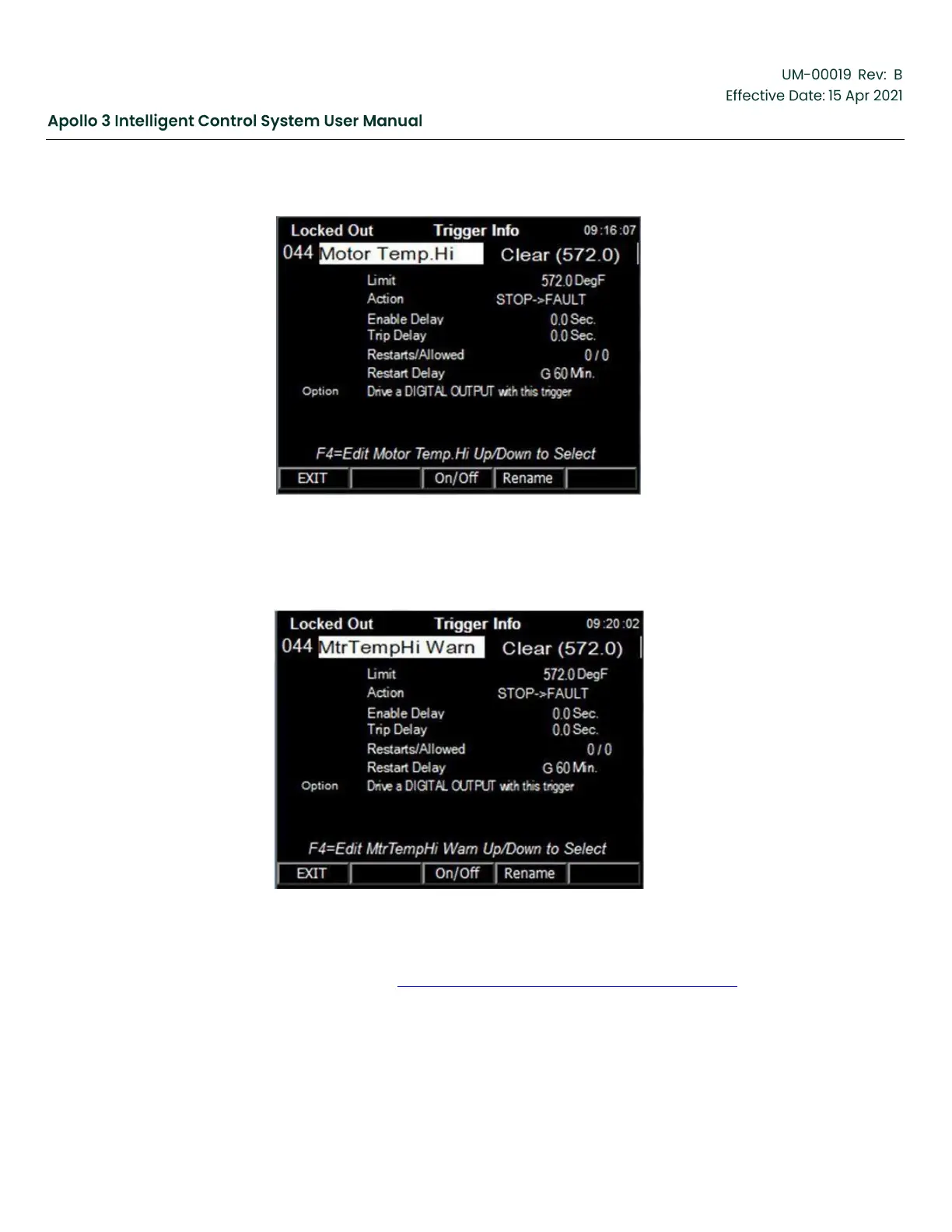

Figure 154: Temperature High Warning
4. In our example, the trigger is a warning. Use the Rename function to change the name to Motor Temp
High Warning (MtrTempHi Warn).
Figure 155: Final Trigger Info Screen
5. Select the Trigger Action and change it to Log->NoStart. Select the Limit and set it to 180 DegF. The
final Trigger Info screen is shown in Figure 156: Final Channel Info Screen , page 181.
