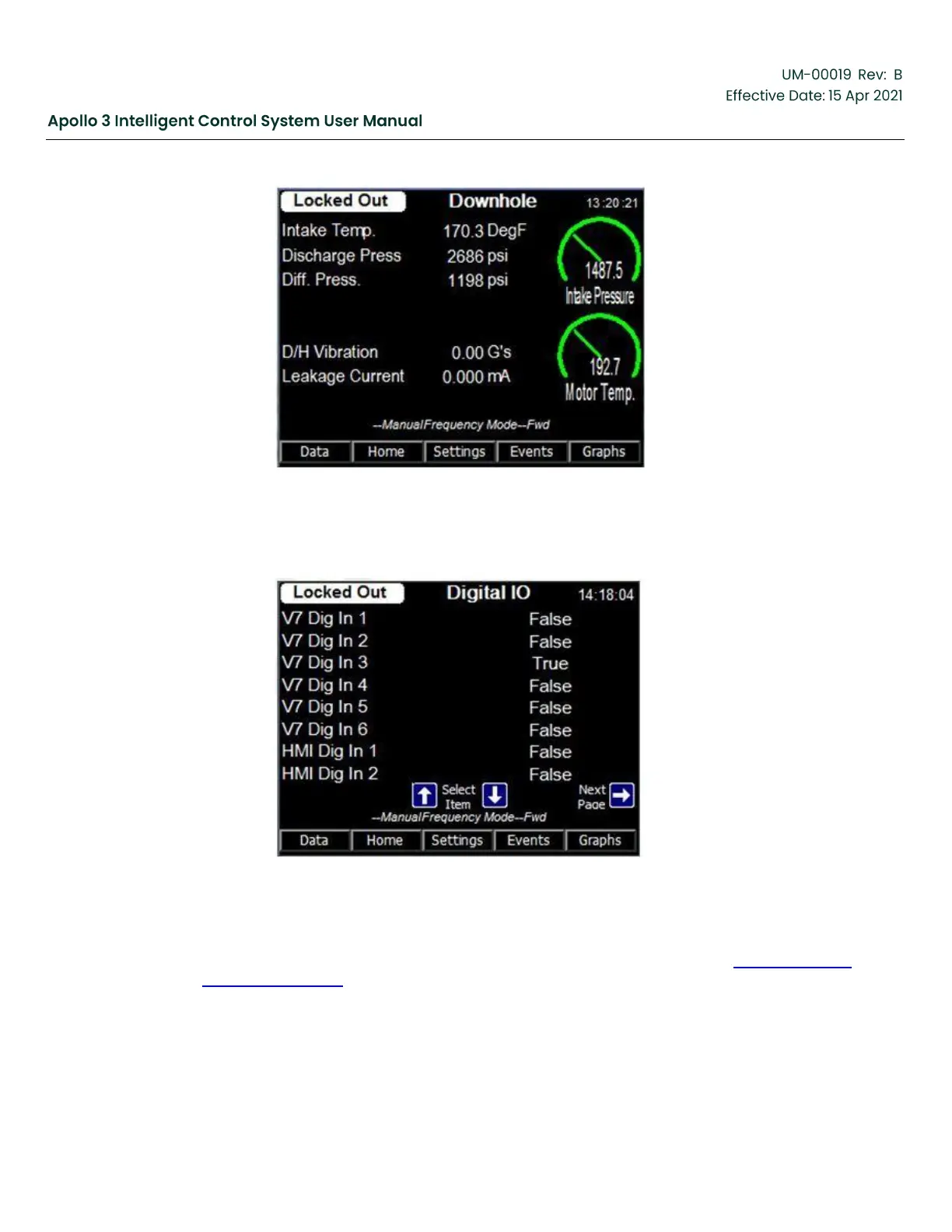

Figure 36: Downhole Screen
3.8.4
Digital I/O Screen
Figure 37: Digital I/O Screen
Function:
The Digital I/O screen displays the state of all the digital inputs in the system. Figure 37: Digital
I/O Screen, page 68 a minimal configuration. If an Apollo Extended I/O board is configured in the
system, its digital I/O will be shown on this screen. This screen cannot be edited.
Screen Data:
To Next Page
