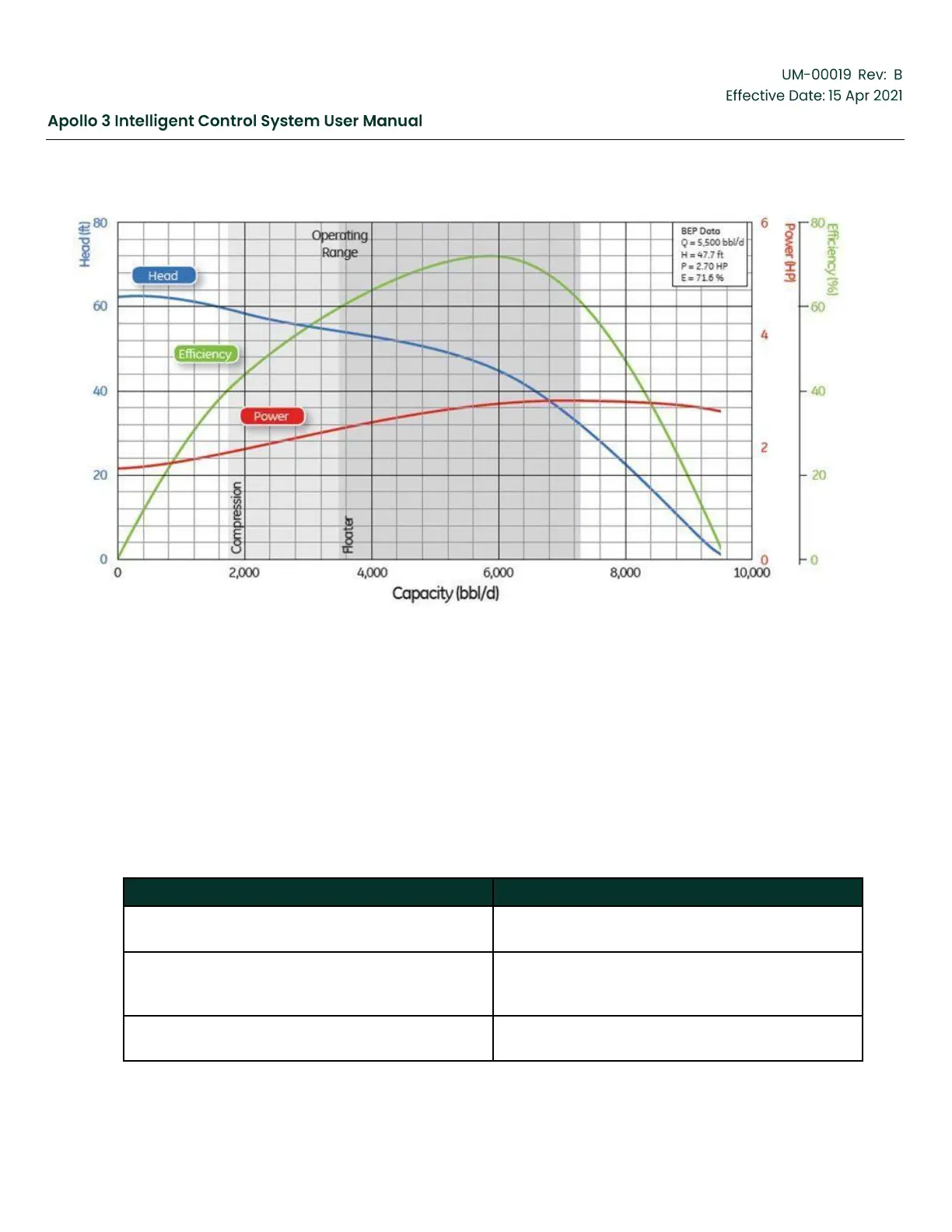

Figure 200: Pump Curve
Pump curves are published for each pump stage sold by Baker Hughes. They are published in the BH Product
Catalog
and maintained in Solutions Sizing Software. Applications engineers utilize these pump curves along with
customer
production requirements, fluid, and reservoir data to select the proper ESP or Surface Pumping System.
In the Apollo Control System, the pump curve is used in reverse. Apollo assumes the pump curve represents the
pump’s performance. Then, utilizing the real-time operating conditions of the pumping system, Apollo determines
where on the pump curve the pump is operating and uses that information to improve pump protection.
11.1
Pump Curve Terminology
Table 66: Pump Curve Terminology
Condition in which the pump is operating at a flow
rate lower than the BEP. Note that some down
thrust is permitted within the operating range.
