Part Number 3000252 consists of the Mounting Panel with the Apollo I/O Board Assembly

and Zenith Interface Unit.

•

Part Number 810822 is the Zenith Interface Unit only.

The Zenith Interface Unit card connects to the Apollo I/O Board via a Serial/USB adapter (PN

197349).

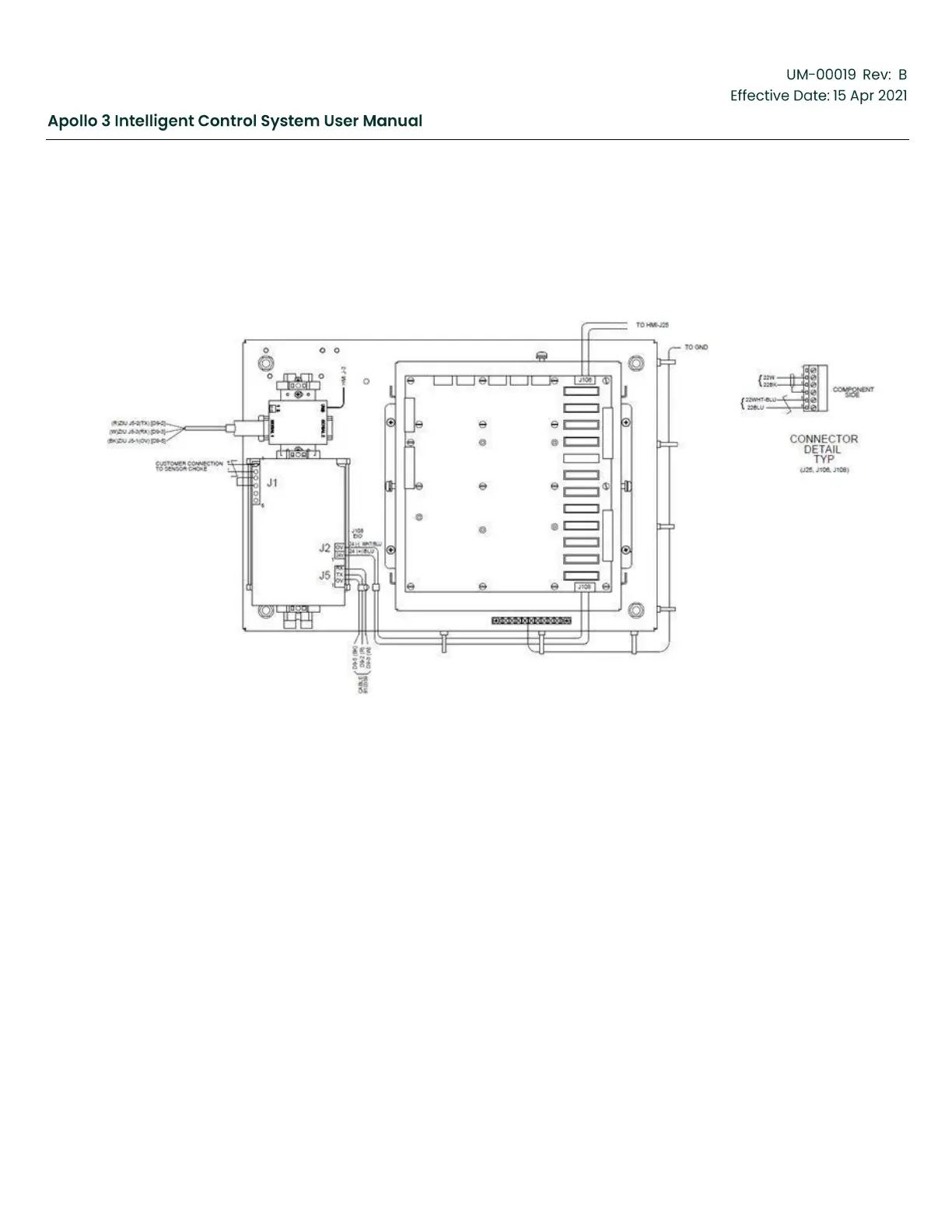

Figure 31: Zenith Configuration-Drawing 1
