2-163
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

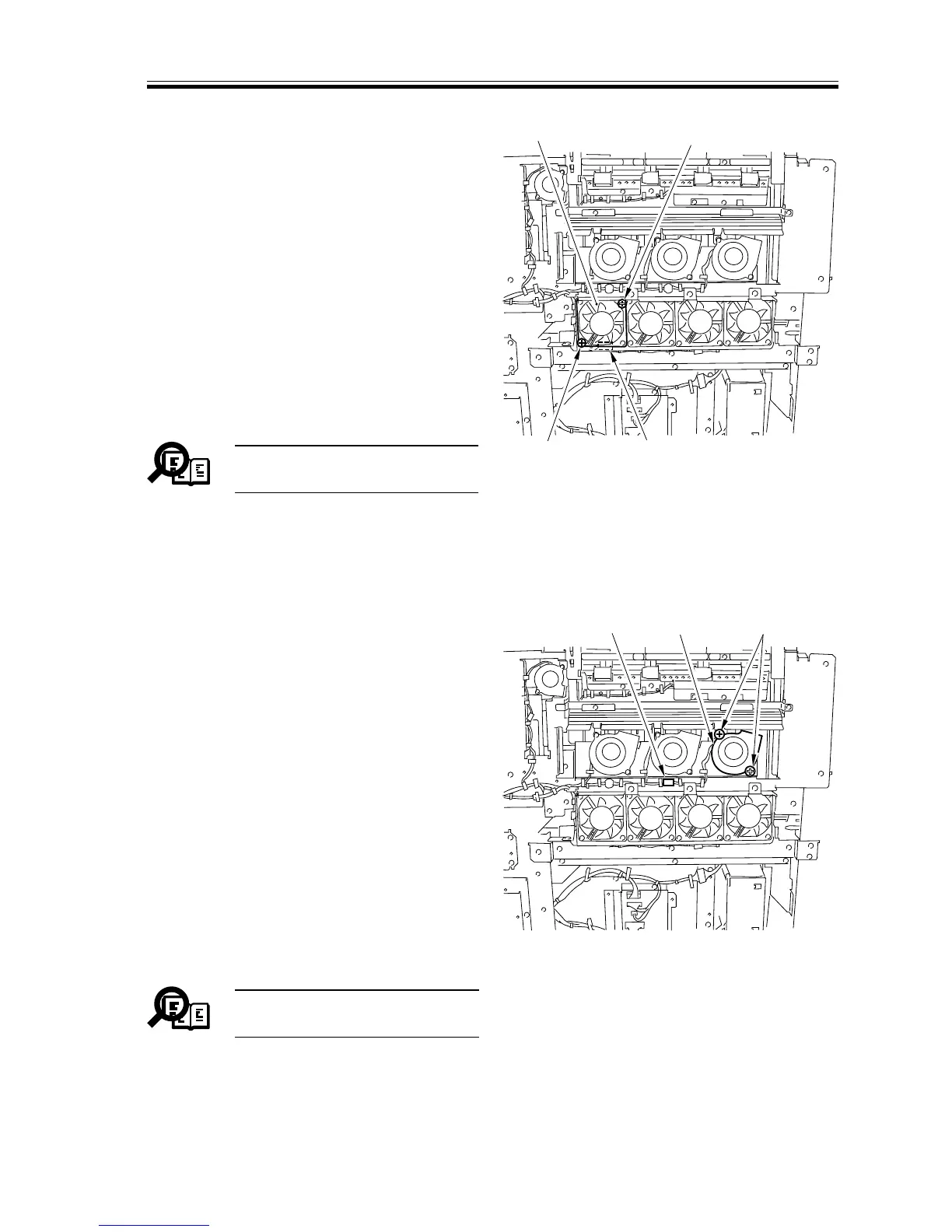

3) Remove the two screws [2], and discon-
nect the connector [3]; then, detach the
reversing assembly exhaust fan [4].
[2]
[2]
[3]
[4]
F02-706-09
f. Removing the Lower Delivery Cooling Fan
1) Remove the left cover.
2) Disconnect the connector [1], and re-
move the two screws [2]: then, detach
the delivery lower cooling fan [3].
[1]
[2]
[3]
F02-706-10
Memo
The remaining two fans may be
removed in the same way.
Memo
The remaining three fans may
be removed in the same way.
