2-165
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

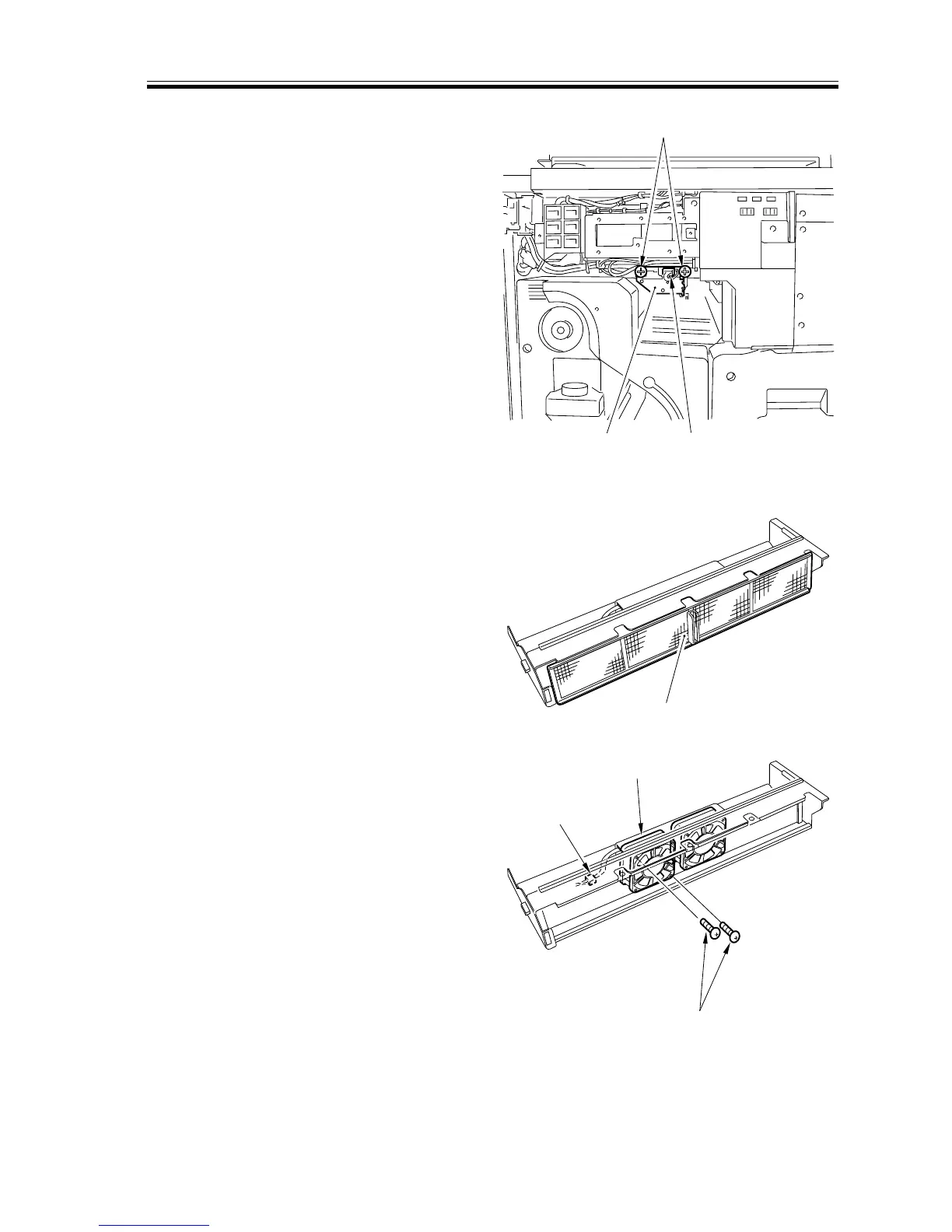

4) Remove the two screws [5], and discon-
nect the connector [7]; then, detach the
fan mounting plate [7].
[5]
[7] [6]
[8]
[9]
[10]
[11]
F02-706-13
5) Remove the filter [8].
F02-706-14
6) Remove the two screws [9], and discon-
nect the connector [10]; then, detach the
pre-fixing exhaust fan [11].
F02-706-15
