2-166
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

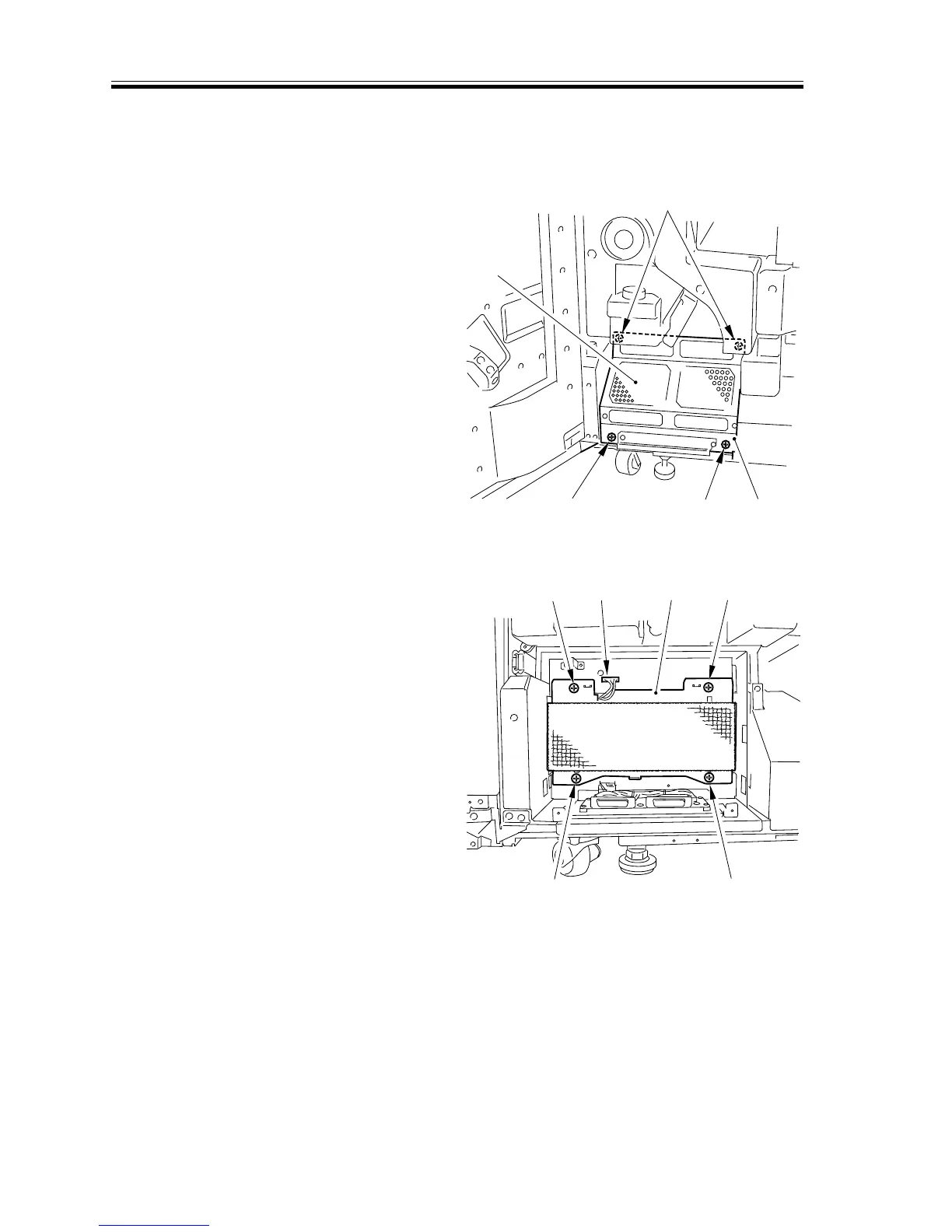

i. Removing the General Exhaust Fan
1) Open the front cover (left).
2) Slide out the transfer unit.
3) Remove the four screws; then, detach
the general exhaust fan cover [2] to-
gether with the download cover [3].
F02-706-16
4) Remove the four screws [4], and dis-
connect the connector [5]; then, de-
tach the general exhaust fan assembly
[7].
F02-706-17
[1] [1]
[3]
[1]
[2]
[4]
[5]
[6]
[4]
[4]
[4]
