• Disengagement Function
Separate the horizontal path feed rollers gearing with the correcting the skew function on the host machine.
Horizontal Path
Disengagement Motor 1
(M005)
Horizontal Path
Disengagement Roller 1
Horizontal Path
Disengagement Roller 2
Horizontal Path
Disengagement Motor 2
(M006)

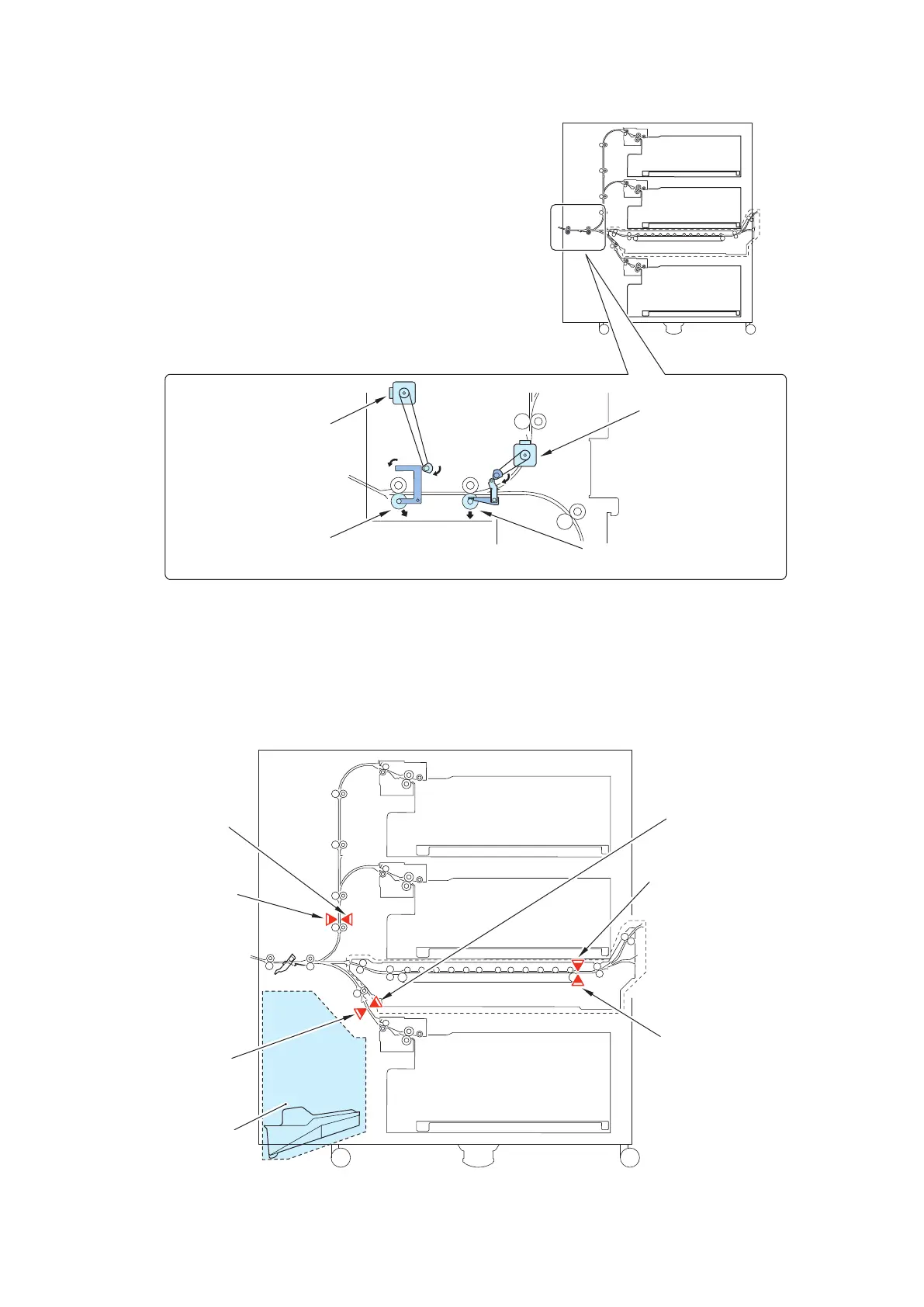

■ Double Feeding Detection Control
The Double Feeding Sensors (S501, F502/S503, S504) are installed at locations shown below to detect double-fed paper.
The Through Path Unit comes standard with the Through Path Double Feeding Sensors (S420, S421).
The Double Feeding Sensors transmit ultrasonic waves in bursts and determine double feeding by detecting their echo levels.
When two sheets of paper are fed, the echo level lowers due to a layer of air trapped between them. When this occurs, the double-
fed paper is sent to the Escape Unit.
Upper Double Feeding
Sensor (transmission)
(S502)
Through Path Double
Feeding Sensor (receive)
(S420)
Through Path Double
Feeding Sensor (transmission)
(S421)
Lower Double Feeding
Sensor (transmission)
(S504)
Upper Double Feeding
Sensor (receive)
(S501)
Lower Double Feeding
Sensor (receive)
(S503)
Escape Unit
