4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 5-7
Viewing the Input and Output Status
To View the Input and Output Status
Proceed as follows to view the status pages:
1. From the user interface of the D9854, click the Status tab, and then click the
Status icon from the sub-page.

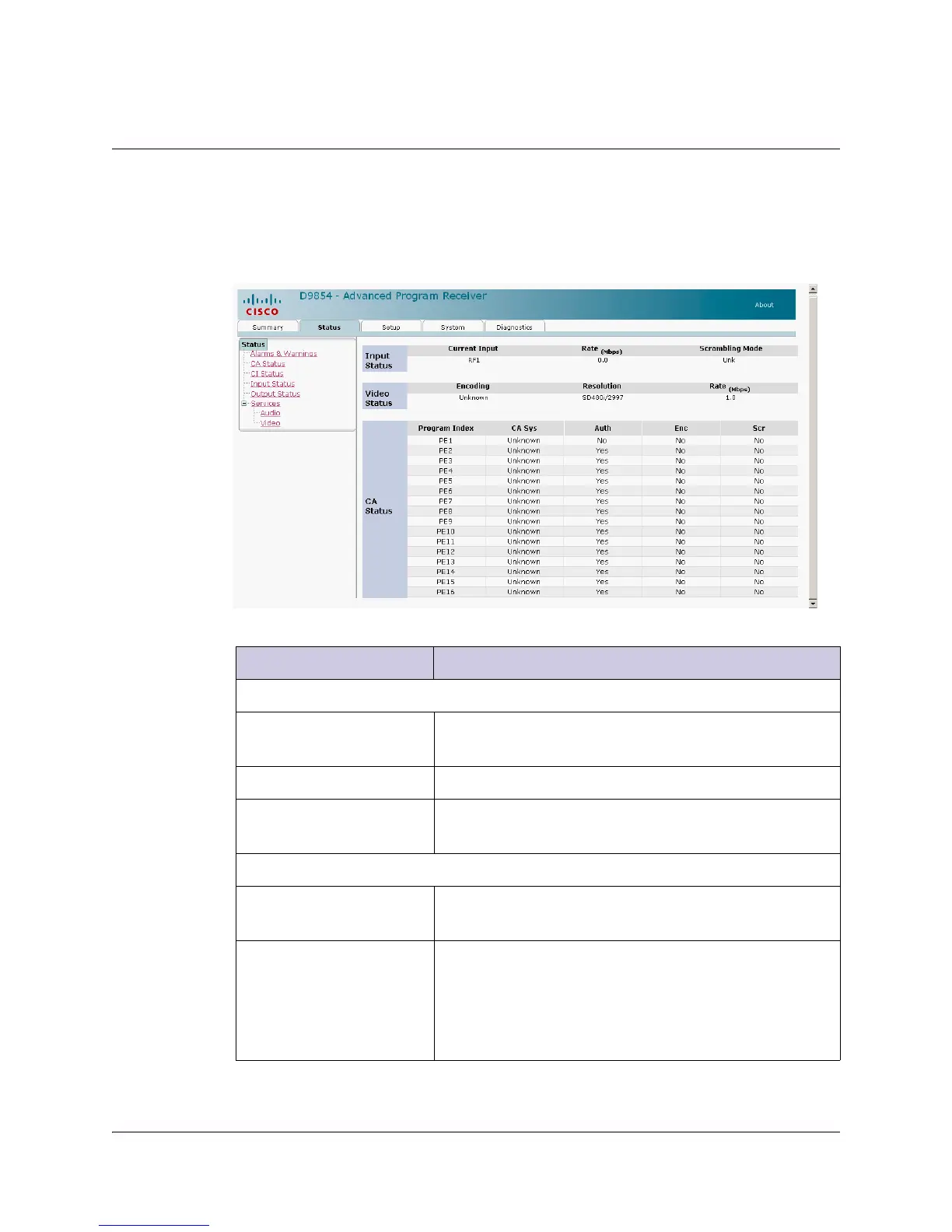

The following table describes the input, video, and CA statuses:
Status Description
Input Status
Current Input The active input port receiving the signal (RF1, RF2,
RF3, RF4, or ASI).
Rate (Mbps) Bit rate of the received input signal, in Mbps.
Scrambling Mode Indicates whether the received signal is scrambled
(Yes, No, or Unknown).
Video Status
Encoding The input stream type of the received signal/
program.
Resolution Source resolution of the received signal/program.
The possible parameters are: SD480i/2997, SD480i/
3000, SD576i/2500, HD720p/5000, HD720p/5994,
HD720p/6000, HD1080i/2500, HD1080i/2997,
HD1080i/3000, Unknown, or Unsupported.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
