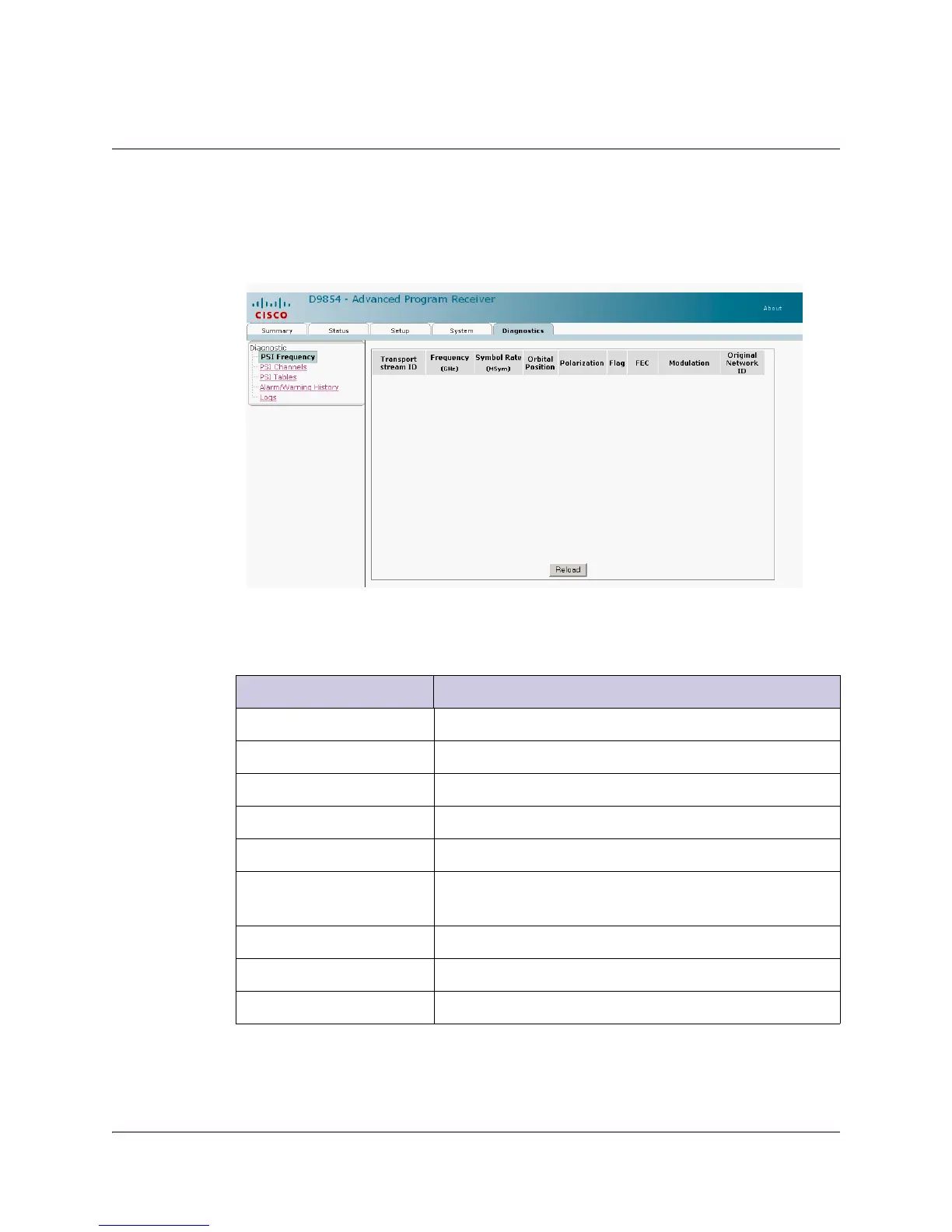

4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 5-79
Viewing PSI Frequency Information
To View the PSI Frequency Information
Proceed as follows to view the PSI Frequency table:
From the user interface of the D9854, click Diagnostics tab, and then the PSI
Frequency icon from the sub-page.
You cannot make any changes in the PSI Frequency table and can only view the
available frequency plans stored in the receiver. The following is a list of the various
columns:
Abbreviation Description
Transport Stream ID Transport ID
Frequency (GHz) Downlink Frequency (GHz)
Symbol Rate (MSym) Symbol Rate (Msym/s)
Orbital Position Orbital Position (in degrees)
Polarization Polarity of the received signal (H,V, or Off)
Flag Satellite position (in degrees), in combination with
the direction (East or West)
FEC Forward Error Correction inner code rate
Modulation Modulator constellation setting
Original Network ID Original Network ID
