Cisco D9854 User Manual

5-82 Model D9854 Advanced Program Receiver Installation and Operation Guide 4021470 Rev D
Viewing Alarm/Warning History
To View the Alarm and Warning History Information
Proceed as follows to view the Alarm/Warning History page:
From the user interface of the D9854, click the Diagnostics tab and then the Alarm/
Warning History icon from the sub-page.

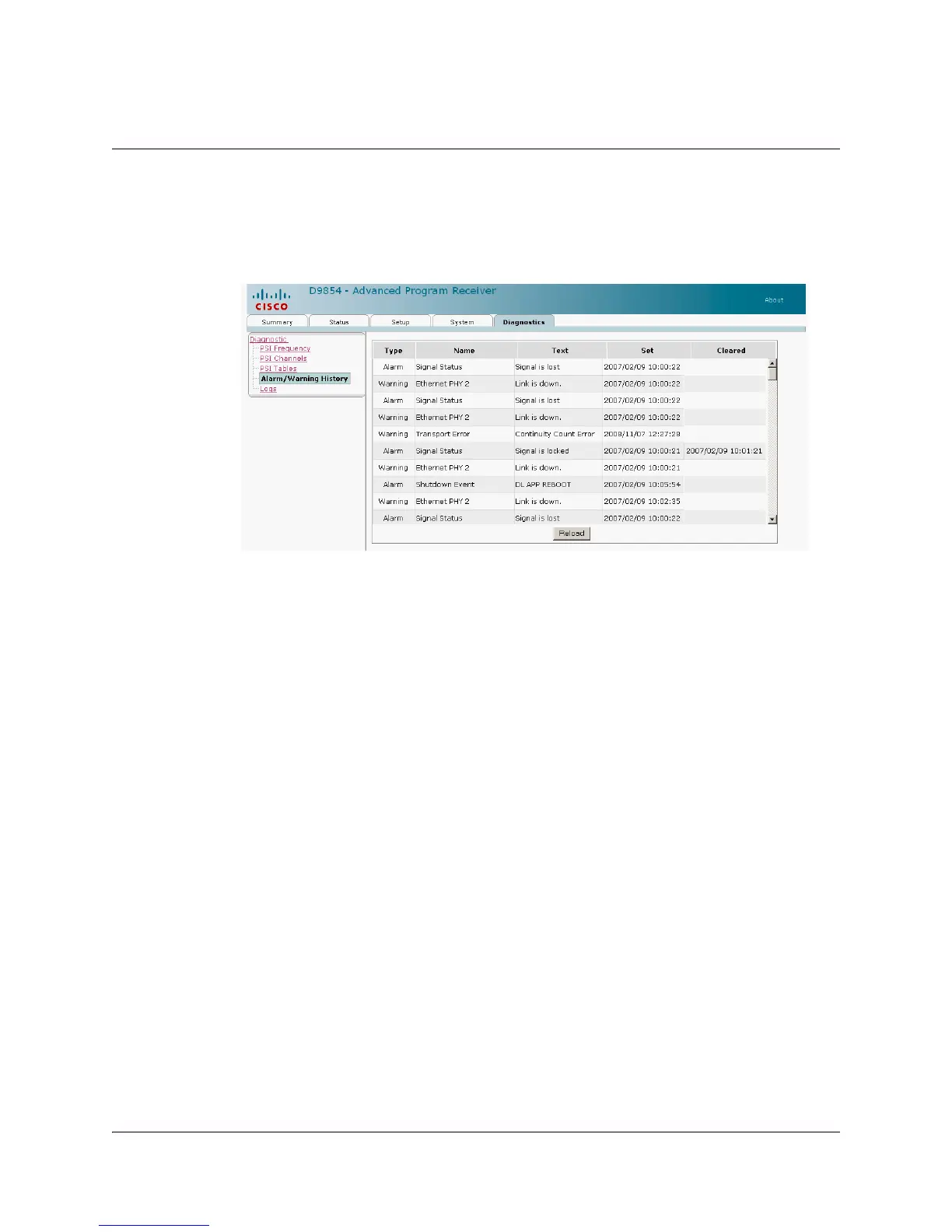

The Alarm and Warning History page displays all the past system event messages
and their set and cleared dates and times. For more information on the alarm
messages, refer to Messages, page 6-3.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
