4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 5-45
Setting up the TS Output: MPEGoIP
To Set up MPEGoIP for TS Output
Proceed as follows to set up MPEGoIP for TS Output:

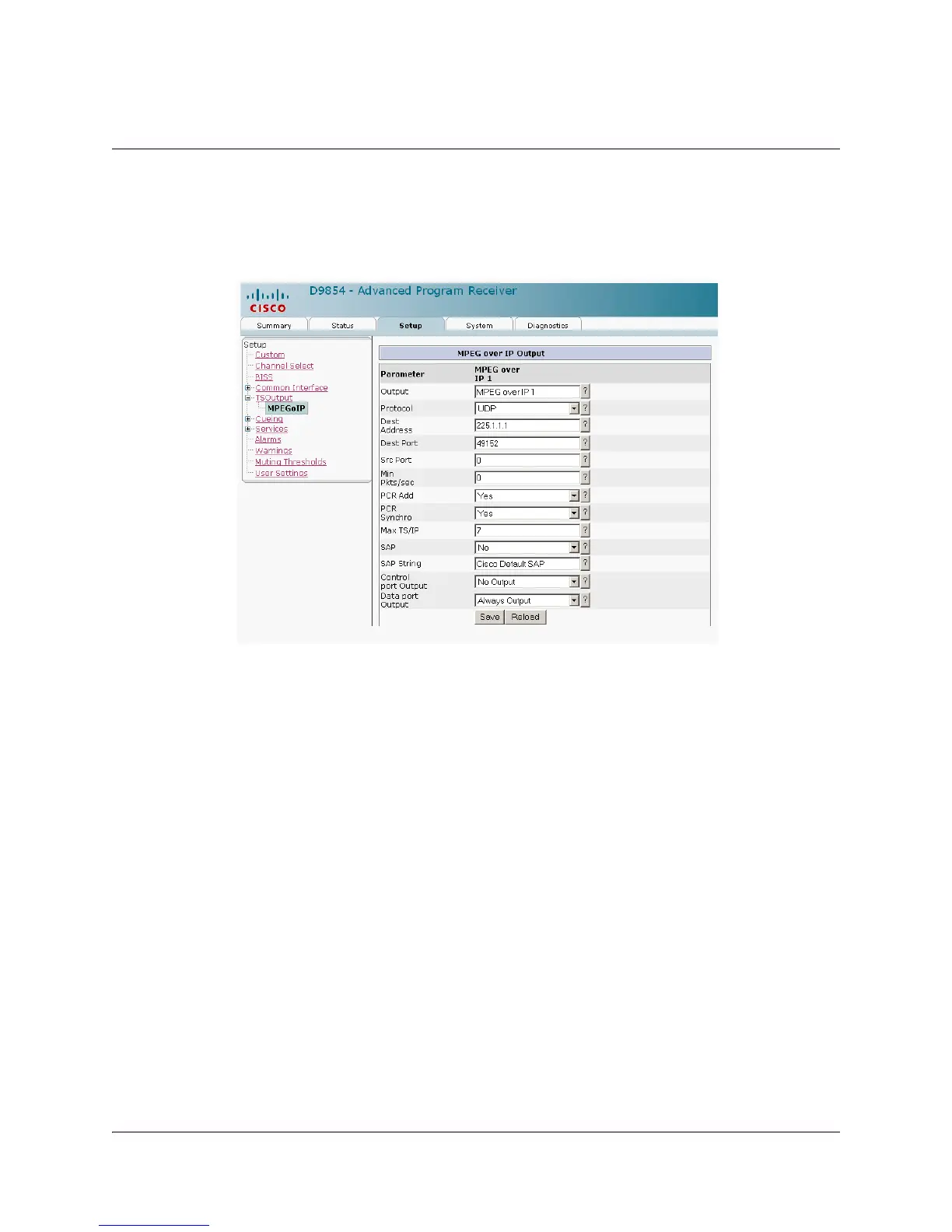

1. From the user interface of the D9854, click the Setup tab, expand TSOutput and
then click the MPEGoIP icon from the sub-page.
2. Enter a name assigned to the transport output for ease of reference. You can
enter up to 20 characters.
3. Select the transport Protocol to be used for the output stream (RTP or UDP).
4. In the DestAddress field, enter the multicast destination IP address in the range
from 0 to 255, in the format ###.###.###.###. For example, 225.1.1.1.
5. In the Dest Port field, enter the destination UDP port number, in the range from
1 to 65535.
Note: If RTP was selected for Protocol, you must enter an even destination port
number.
6. In the Src Port field, enter the source UDP port number, in the range from 1 to
65535.
7. In Min Pkts/sec, enter the minimum number of transport packets per IP packet.
You can enter 0 or in the range from 2 to 1000.
8. Select Yes in PCR Add to add a PCR to the output stream. Otherwise, select No.
9. From the PCR Synchro drop-down, select Yes to always transmit a new
Ethernet Packet when a new Program Clock Reference (PCR) arrives.
Otherwise, select No.
