4-38 Model D9854 Advanced Program Receiver Installation and Operation Guide 4021470 Rev D
Setup Menu: IP
Structure
To view the IP menu from the Main menu, press the RIGHT arrow key once and the
then the SELECT key to reach the Setup menu. Then press the RIGHT arrow key
twice and the SELECT key to view the IP menu.
The IP menu allows you to set the parameters for communicating with other
equipment via the Ethernet Data and Management ports for MPEGoIP and MPE
applications and upgrading application software.
For instructions on how to select and store settings, see About the Front Panel,
page 4-2.

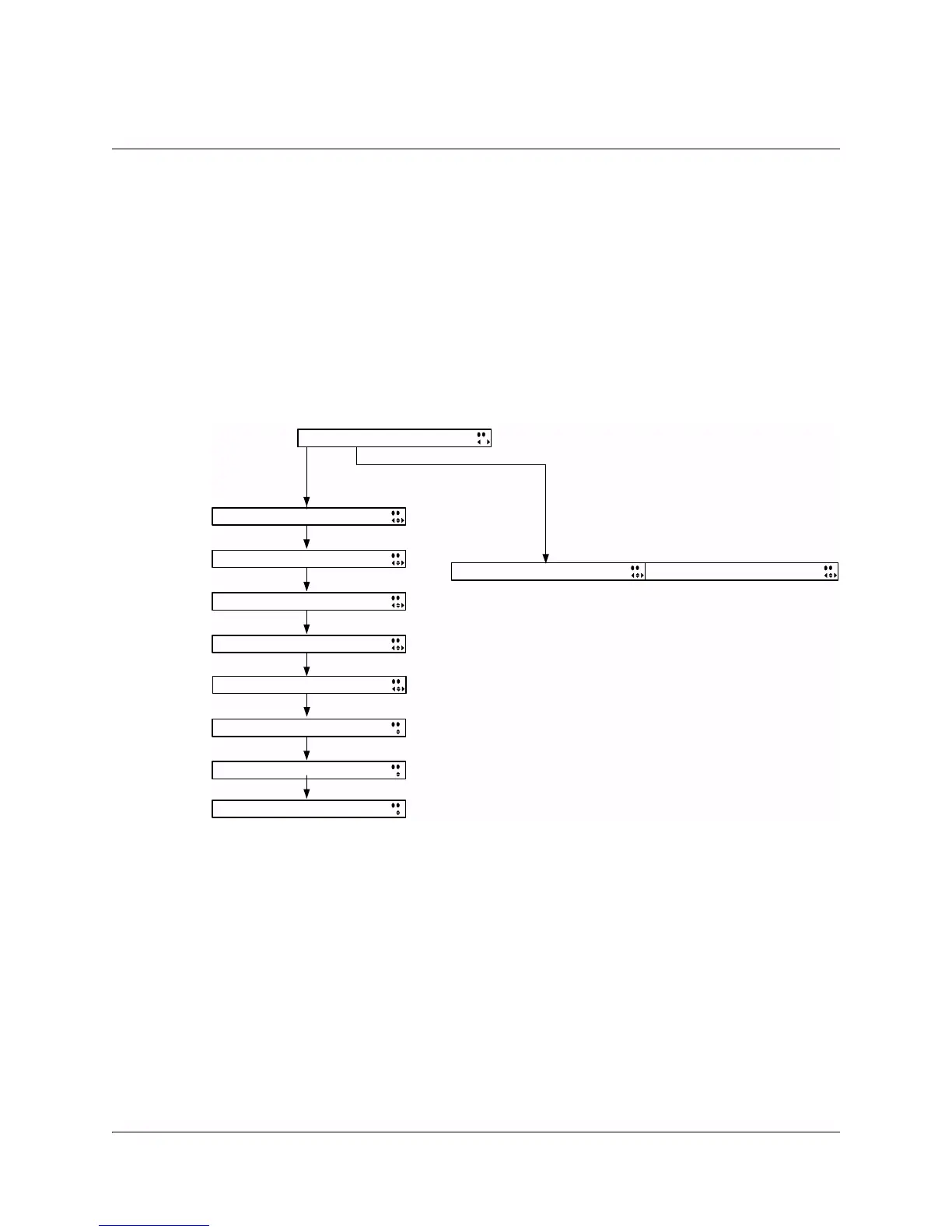

The IP menu has the following structure:
IP
Port ID
Description: Displays the ID for the Ethernet port.
Parameters: 1 or 2. The default is 1.
Description
Description: Sets the description or name for the Ethernet port.
Parameters: Up to 20 alphanumeric characters in length.
Trap Community String 2/2
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
i
s
Port ID MAC Address
1 3F:23:65:D2:41:AF
i
s
SNMP Read Community String
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
i
s
SNMP Write Community String
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
i
s
Port ID Gateway
1 192.168.131.254
i
s
Port ID V4/V6 IP Address Mask
1 IPv4 192.168.131.225 24
i
s
Port ID Description
1 management
i
s
Trap IP Address Ins Del 1/2
255.255.255.255
i
s
Main:Setup:IP
IP Trap Destinations
i
s
Reset Telnet Logins
i
s
Port ID Multicast Forwarding
1 Forward None
i
s
