4-8 Model D9854 Advanced Program Receiver Installation and Operation Guide 4021470 Rev D

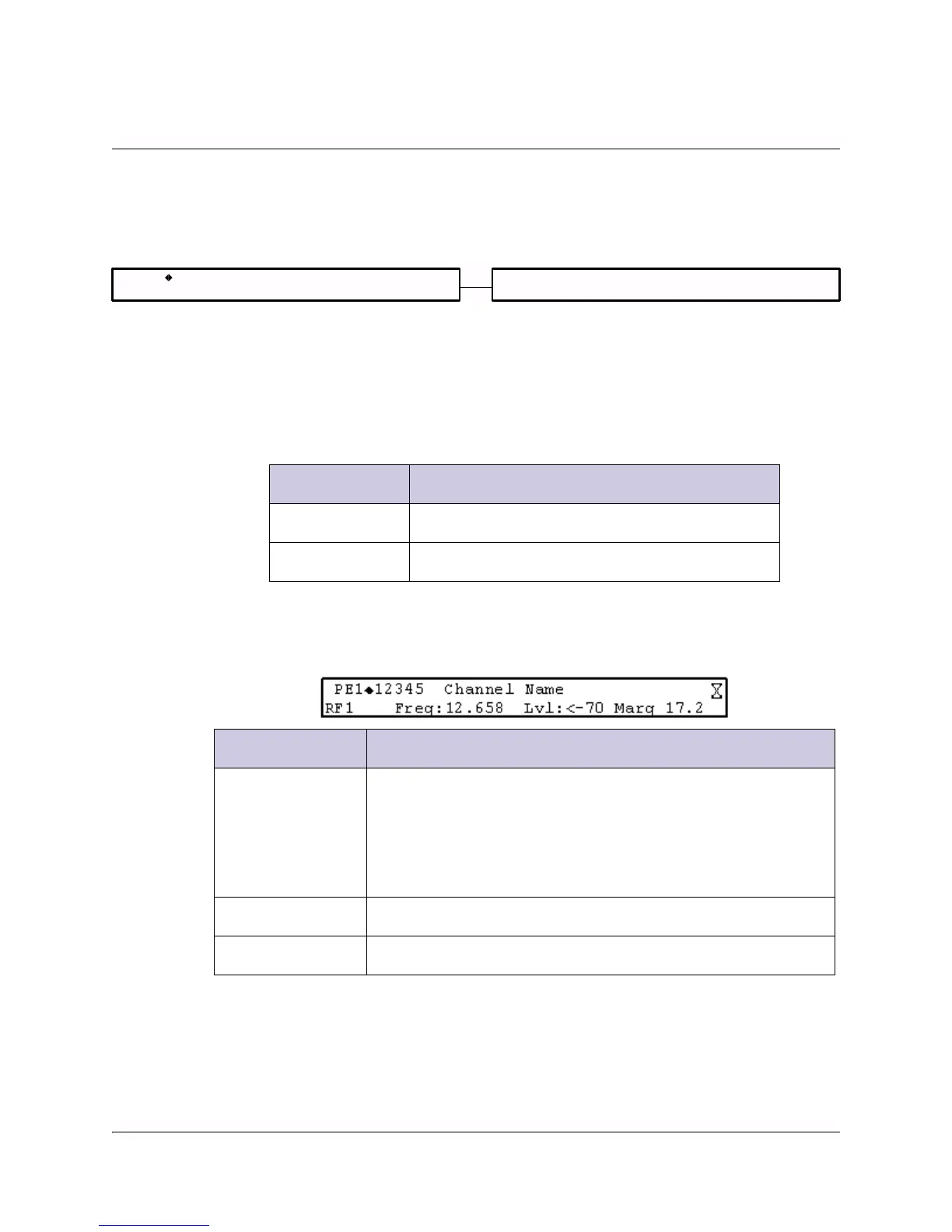

Startup Screen
Menu Structure
On power-up and initialization, the startup screen is displayed similar to that
shown below. The screen also indicates the signal status.
Startup Screen Channel Authorization Status Screen
Channel Authorization Status
From the startup screen, press the right or left arrow keys on the front panel keypad
to move to the PE entry authorization status screen. This screen indicates whether
the selected channel is authorized.
LCD Panel
The LCD panel displays basic signal and program information in the LCD display,
as described in the following illustration:
s
PE1 12345 Channel Name
RF1 Freq:12.658 Lvl:-50 Marg:11.6
PE: 1
Auth:Y
Auth Status Description
Y Indicates the channel is authorized.
N Indicates the channel is not authorized.
LCD Setting Description
PE Program Entry (PE). The receiver supports up to 16
program entries at the analog outputs.
PE1 is used by the PowerVu signal only.
PE2 to PE16 is used by the Conditional Access Module
(CAM) only.
12345 Channel for program monitoring.
Channel name Name of the monitored program.
