5-74 Model D9854 Advanced Program Receiver Installation and Operation Guide 4021470 Rev D
Setting up SNMP Trap Destinations
To Add a Trap Destination
Proceed as follows to add a Trap Destination:

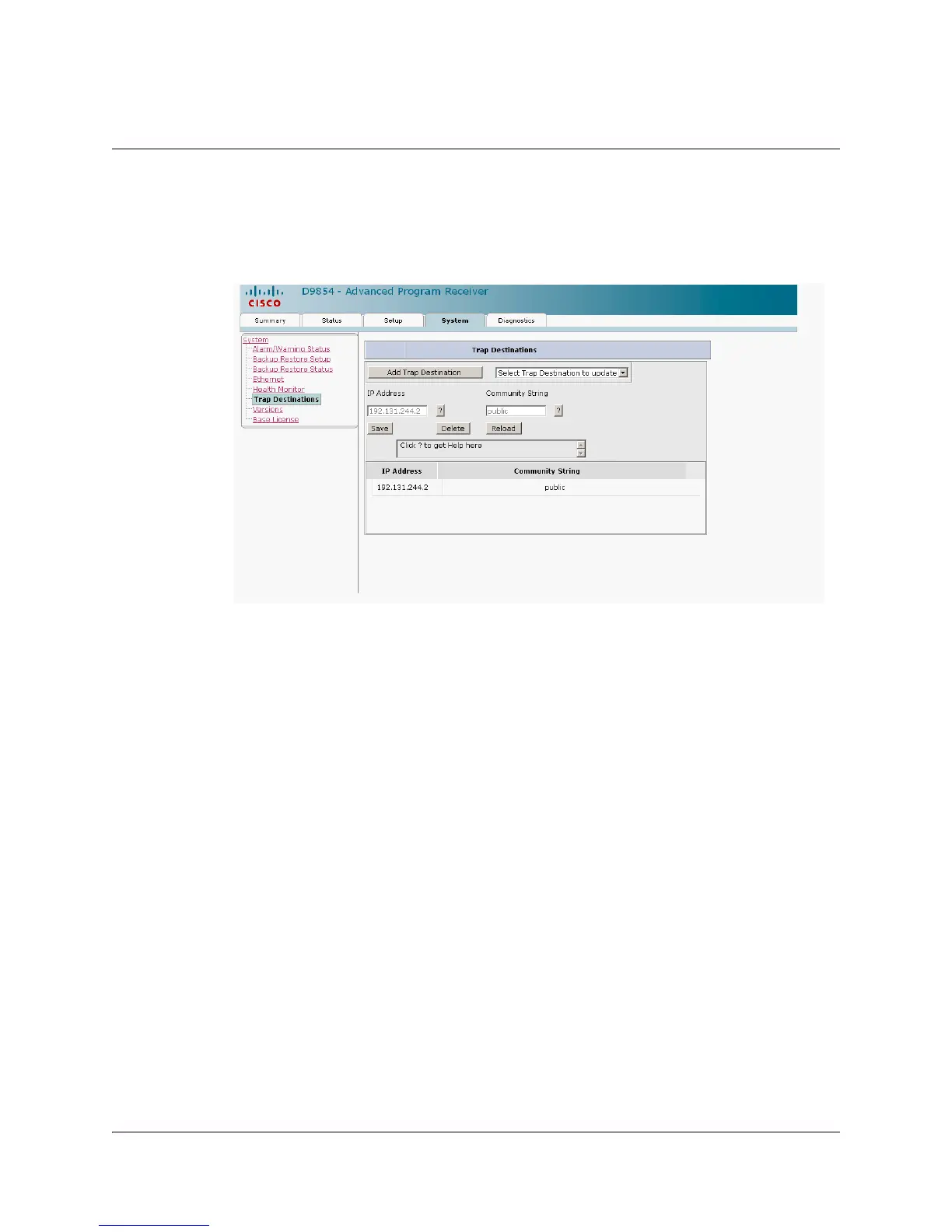

1. From the user interface of the D9854, click the System tab, and then the Trap
Destinations icon from the sub-page.
2. Click Add Trap Destination.
3. Type the IP Address that sets the destination for SNMP trap messages for
events (i.e. fault messages). You can enter up to 12 characters (e.g.,
155.128.100.200).
4. Type the Community String for the trap destination (IP Address entered
above).
Enter public or custom string. The default is public. You can enter a string up to
35 characters.
5. Click Save. The new trap destination is created and listed in the table below.
To edit an existing Trap Destination
Proceed as follows to edit an existing Trap Destination:
1. From the user interface of the D9854, click the System tab, and then the Trap
Destinations icon from the sub-page.
2. From the Select Trap Destination to update drop-down, select the trap
destination entry you want to edit.
3. Edit the IP Address and/or Community String for the SNMP trap messages.
4. Click Save. The entry is updated.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
