4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 5-59
Setting up Alarms
To Set Up Alarms
Proceed as follows to set up the alarms:
1. From the user interface of the D9854, click the Setup tab and then click the
Alarms icon from the sub-page.

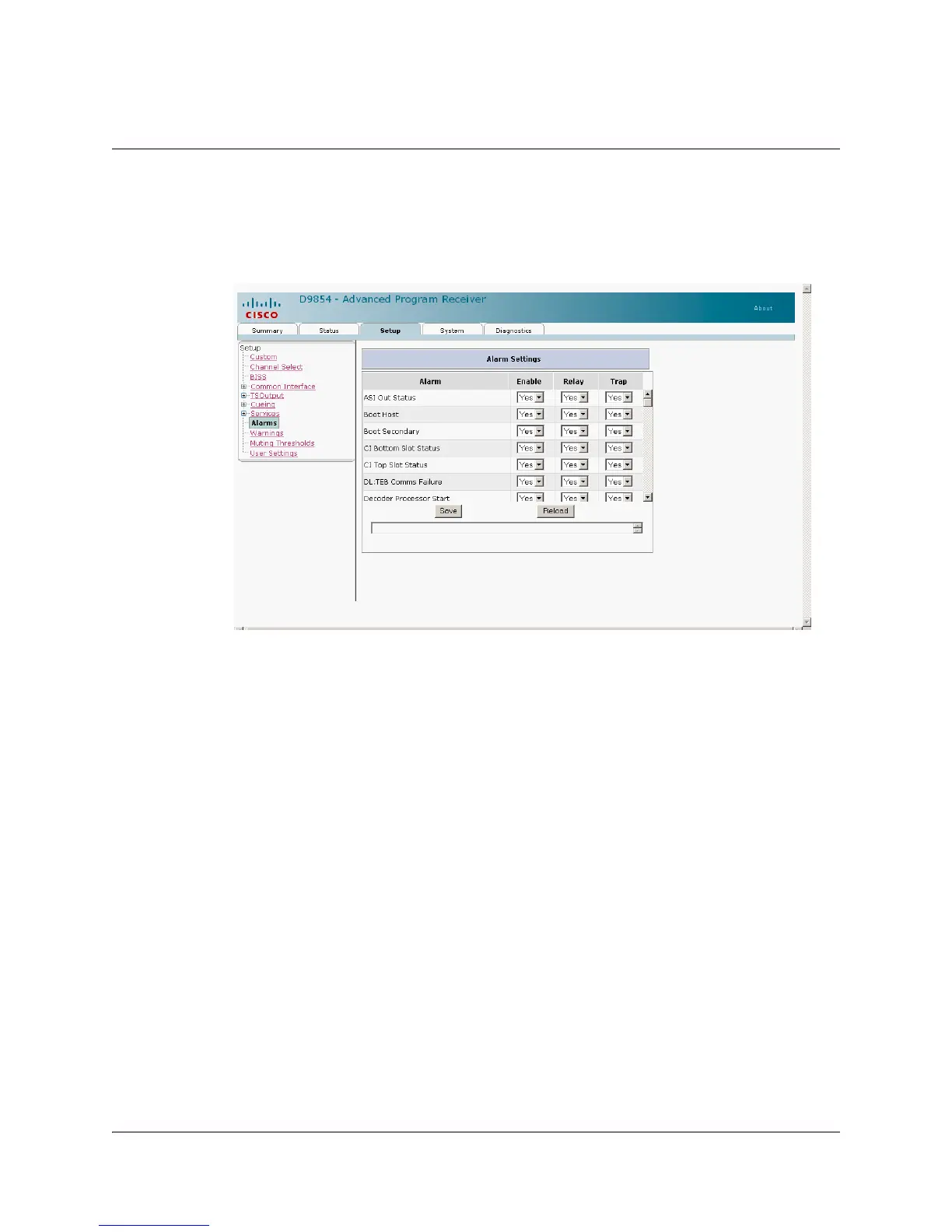

2. The Alarm Settings page displays a list of the alarm/fault messages. For more
information on alarm messages, refer to Messages, page 6-3.
3. Set Enable to Yes and the alarm message will be reported. Set to No and the
fault won’t be reported and the alarm relays will not be triggered or change
state.
Note: Enable must be set to Yes for the Relay and Trap settings to be functional.
4. Set Relay to Yes for the rear panel alarm relay to be triggered to enable external
equipment connected to the alarm port.
5. Set Trap to Yes and the SNMP trap message will be sent to the trap destination;
otherwise, the fault message will be ignored.
“No” indicates the trap or relay is enabled, but Enable is set to No, which will
prevent relay or trap operation.
6. Click Save.
