3-8 Model D9854 Advanced Program Receiver Installation and Operation Guide 4021470 Rev D
Section C - Connecting the Input/Output Signals
Connecting the RF Inputs
Do as follows to connect to the RF inputs:
1. Connect up to four LNB RF cables to the RF connectors labelled RF1 through
RF4 on the rear of the unit.
Use 75-ohm (braid/foil or braid/braid), low insertion loss coaxial cable.
Each input accepts an LNB signal input. RF2 to RF4 require an external LNB
power source
Connecting the ASI Input
Do as follows to connect to the ASI input:
1. If desired, connect to the ASI IN port to an asynchronous serial interface for
uplink monitoring.
Connecting the Video Outputs
Connector for the Video Output
The video output connectors are of the BNC type.
Video Connector
The following table shows the video connector.
To Connect the Component Video Output
1. Connect a video monitor to the connectors labeled Pr, Pb, and Y.
To Connect the Composite Video Output
Do as follows to connect to the Composite Video Output:
1. Connect a video monitor to the CVSB 1 and CVSB 2 connectors. The two outputs
are identical. Use a 75-ohm double-braided coax cable.
To Connect the HD-SDI Outputs
Connect HD rebroadcast equipment to the connectors labeled M1 and M2, and/
or if required, connect them to a video monitor.
There are two connectors to provide active loop-through possibility.

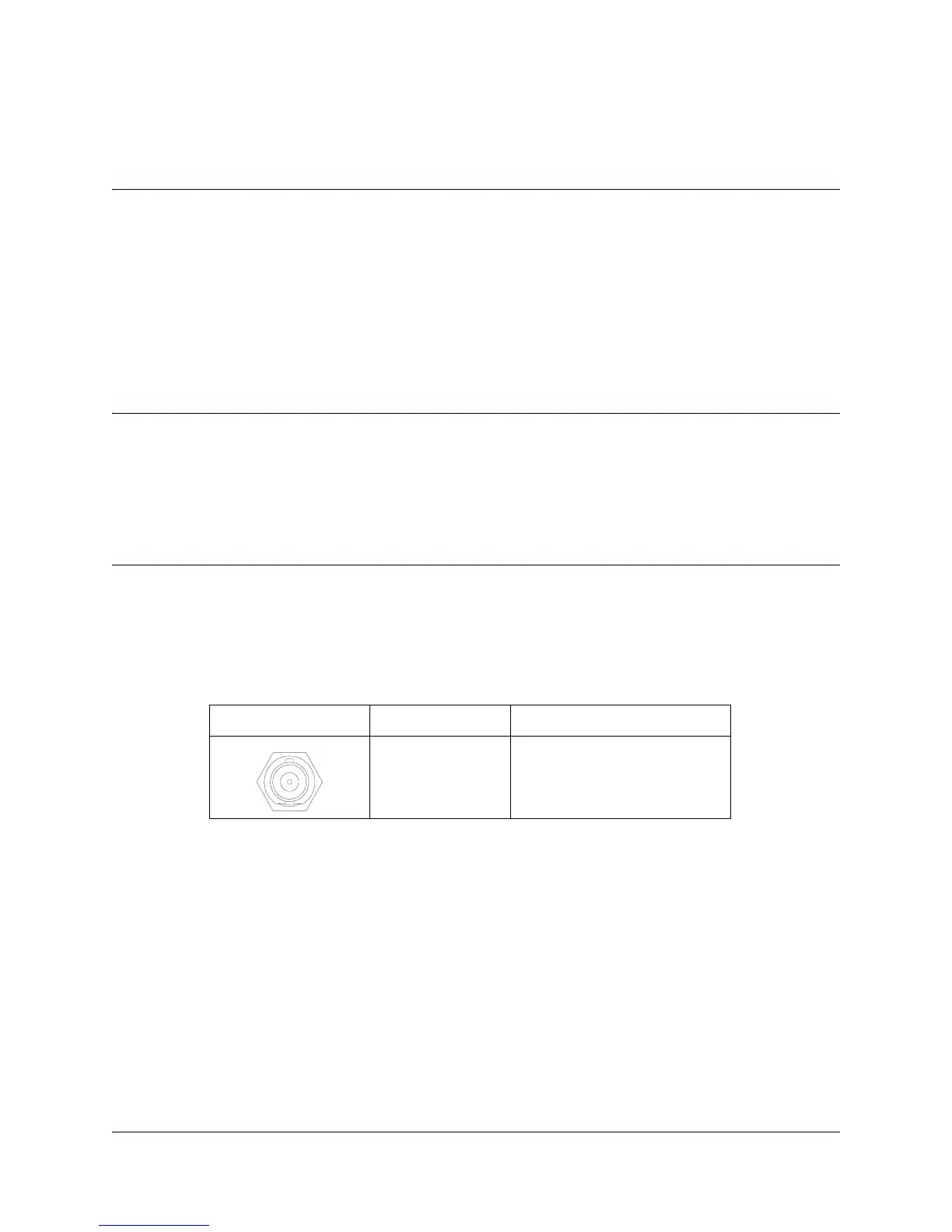

Connector Interface type Connector type
SMPTE 292M BNC female
