4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 5-47
Setting up Cueing Parameters
To Set Up Cueing Parameters
Proceed as follows to set up the cueing parameters:

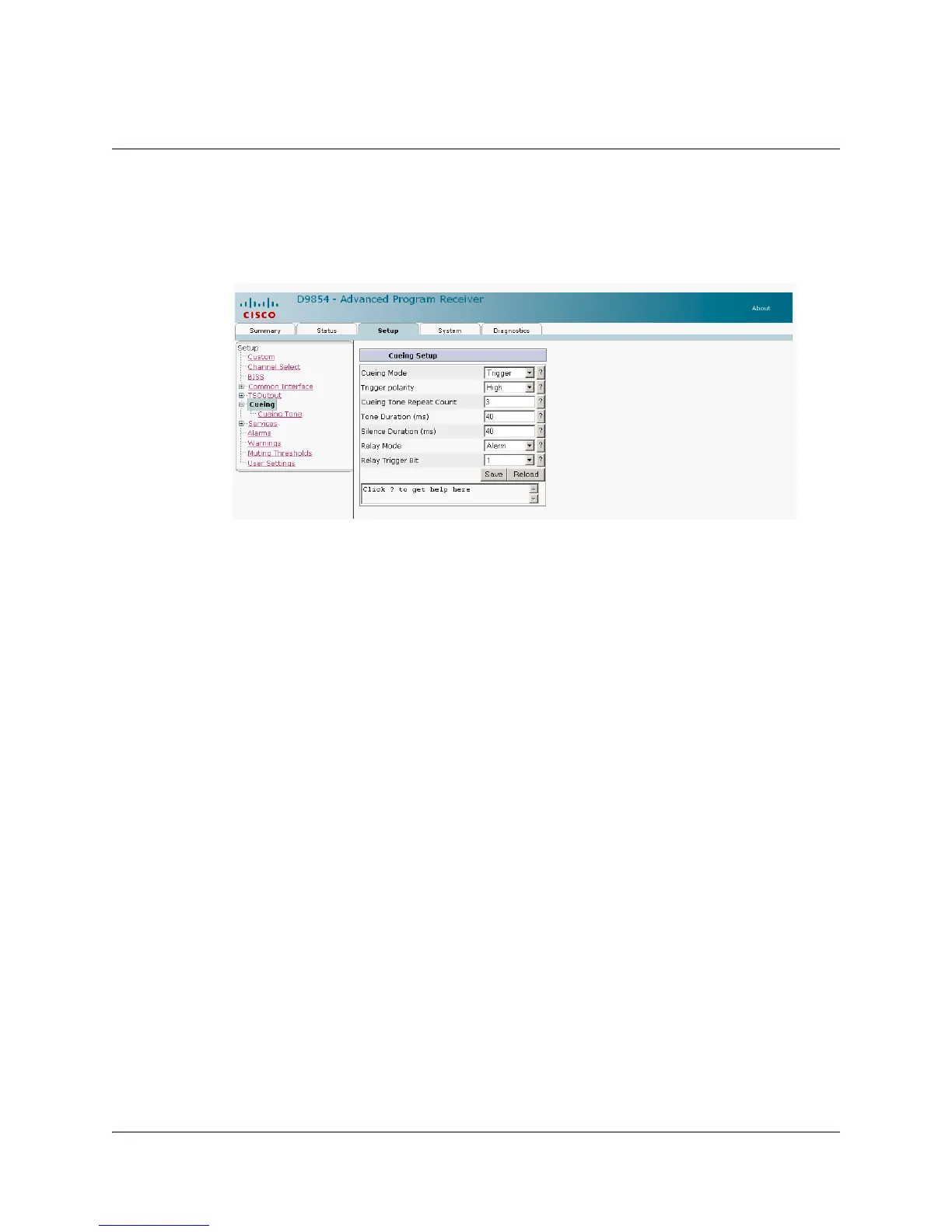

1. From the user interface of the D9854, click the Setup tab and then click the
Cueing icon from the sub-page.
2. Set whether the Cueing Mode is Cue Trigger or Cue Tone.
Cue tones are standard Dual-Tone Multi-Frequency (DTMF) tones. The tones
are generated at the Cue Tone/Relay output on the rear panel of the receiver.
Cue trigger refers to open-collector pins which can be generated at the Cue
Tone/Relay output on the rear panel of the receiver.
3. Set the Trigger Polarity. Select High and an active signal sent by the uplink
results in a floating or open collector. An inactive signal results in a GND signal.
Select Low, and the reverse of High is true.
4. Type the number of consecutive tone sequences are generated in the Cueing
Tone Repeat Count. You can enter 1, 2, or 3. The default is 3. The other values
are provided when a scenario demands repetition to ensure that the ad-insertion
equipment receives the signal.
5. Enter the Tone Duration, in milliseconds, in the range from 0 to 80. The default
is 40.
6. Enter the Silence Duration between the tones, in milliseconds. The duration is
in the range from 0 to 80. The default is 40.
