4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 5-71
Setting up Ethernet Ports
Setting up the Ethernet Ports
Proceed as follows to configure the Ethernet ports:
1. From the user interface of the D9854, click the System tab, and then Ethernet
icon from the sub-page.

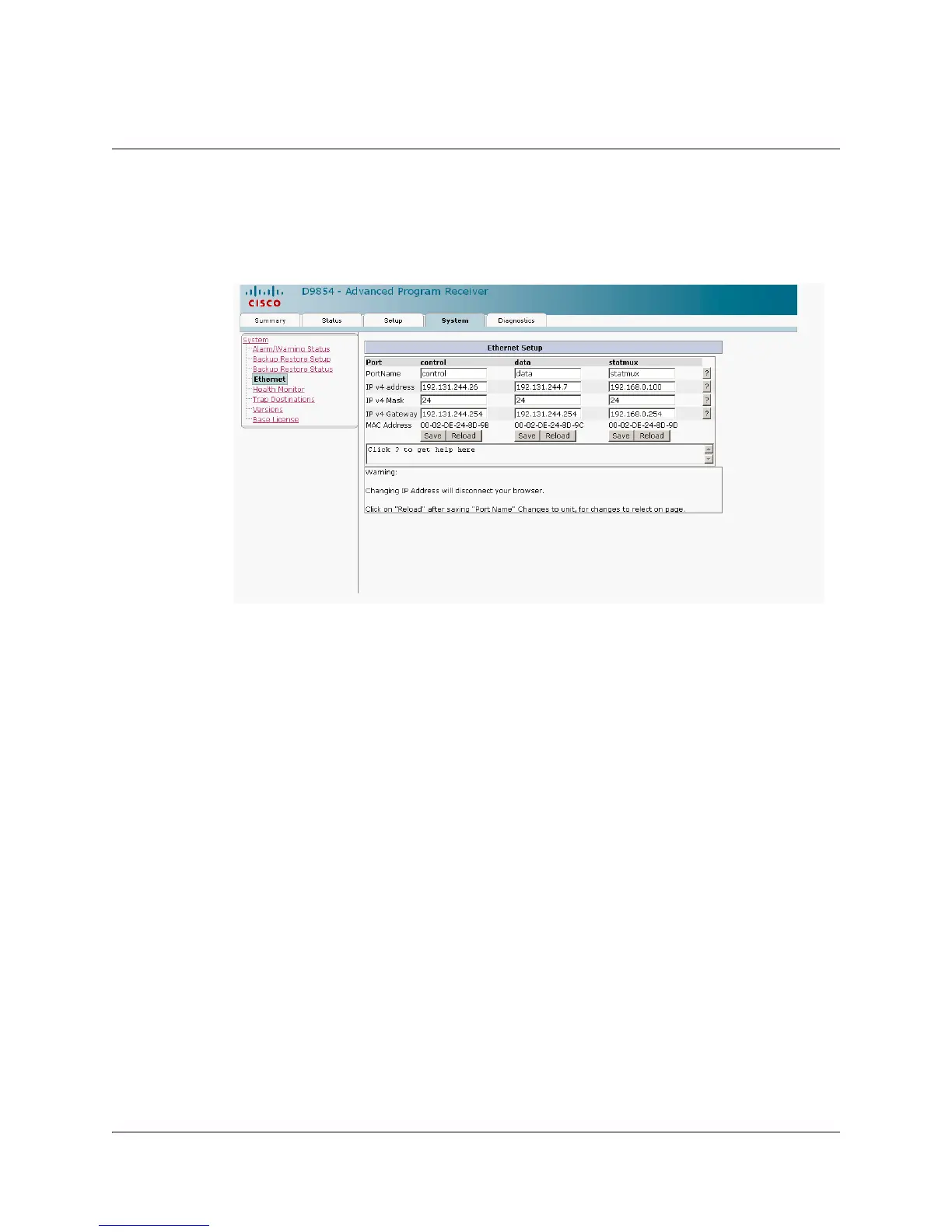

2. The Ethernet Setup page allows you to set the parameters for communicating
with other equipment via the Ethernet Data and Management ports for
MPEGoIP and MPE applications and upgrading application software.
3. In PortName, enter the description or name for the Ethernet port. You can enter
up to 20 alphanumeric characters in length.
4. Set the IPv4 address for its participation in a Network environment. The
address is 12 digits in length (###.###.###.###).
5. Enter the IP v4 Mask for its participation in a Network environment (8 to 30).

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
