5-50 Model D9854 Advanced Program Receiver Installation and Operation Guide 4021470 Rev D

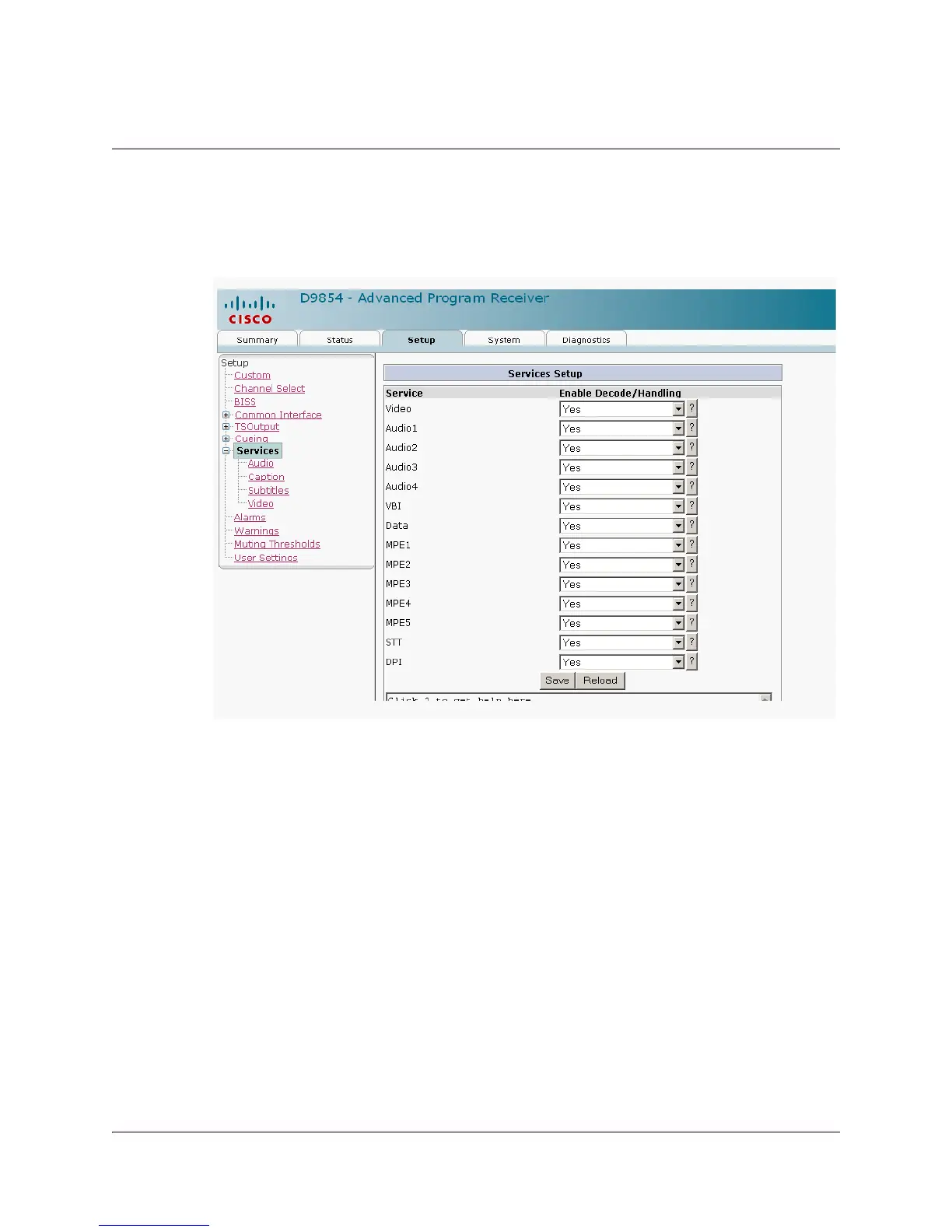

Setting up Services
To Set Up Services
Proceed as follows to set up the service to be decoded by the receiver.
1. From the user interface of the D9854, click the Setup tab and then click the
Services icon from the sub-page.
2. The Service column displays all the services that can be enabled to decode.
Select Yes or No in the Enable Decode/Handling column.
3. Click Save.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
