4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 5-27

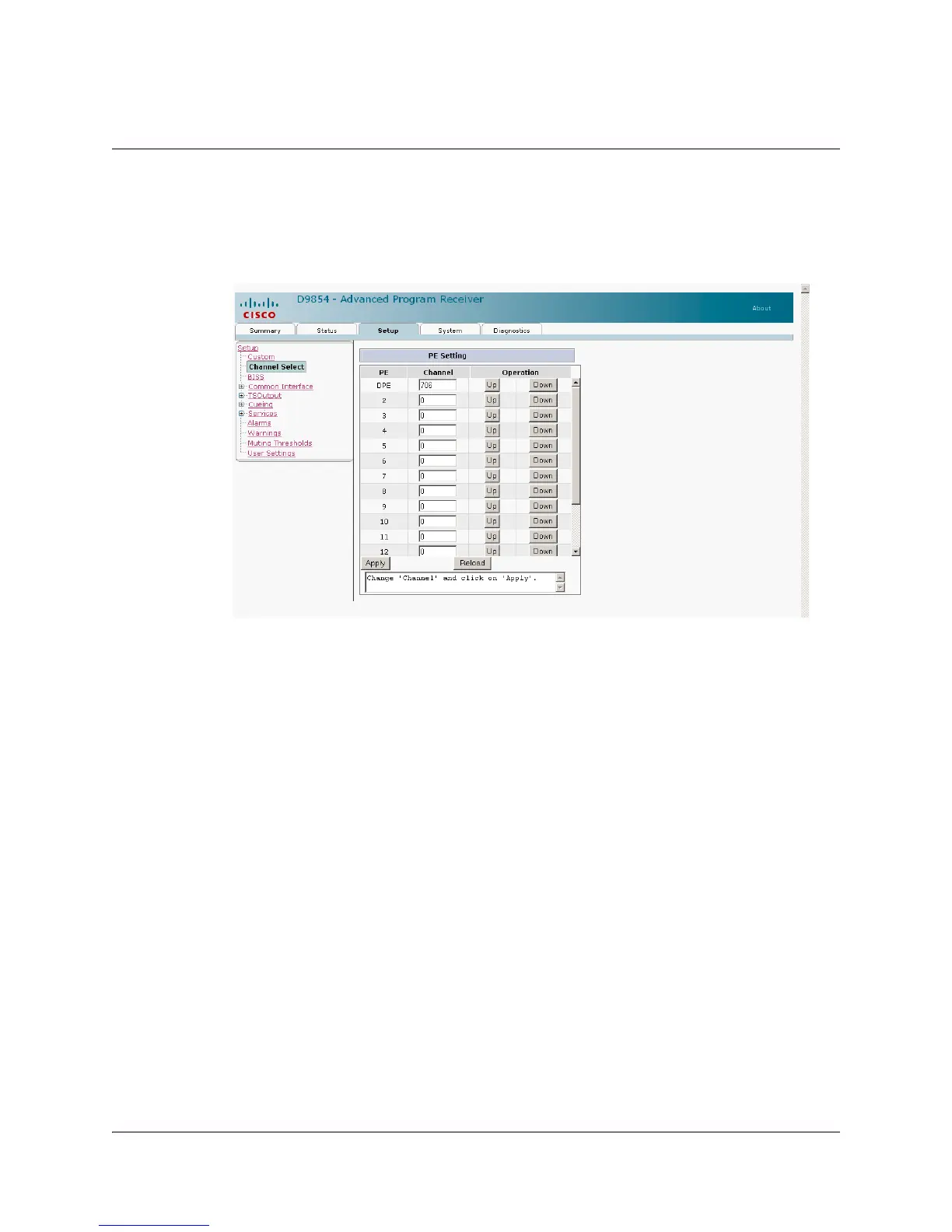

Setting up the Program Entry Configurations
To Set up the Program Entry (PE) Configurations
Proceed as follows to set up the Program Entry configurations:
1. From the user interface of the D9854, click the Setup tab and then click the
Channel Select icon from the sub-page.
2. Enter a channel number for up to 16 program entries. Alternatively, use the Up
and Down buttons to increase or decrease the channel number.
3. Click Apply.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
