3-14 Model D9854 Advanced Program Receiver Installation and Operation Guide 4021470 Rev D
Connecting the RS-232 Data Interface
The RS-232 Data Interface
The DCE DB-9 female connector is intended for low-speed data: 7 bits, even parity,
1 stop bit, up to 38.4 kb/s (default). These outputs are user-configurable via the
Setup Menu on the front panel.
The interconnect cable from the D9854 receiver to a PC should be straight through
(i.e., no handshaking), shielded and equipped with a DB-9 male connector at one
end to mate with the rear panel RS-232 Data interface, and a female DB-9 connector
to connect to the PC.

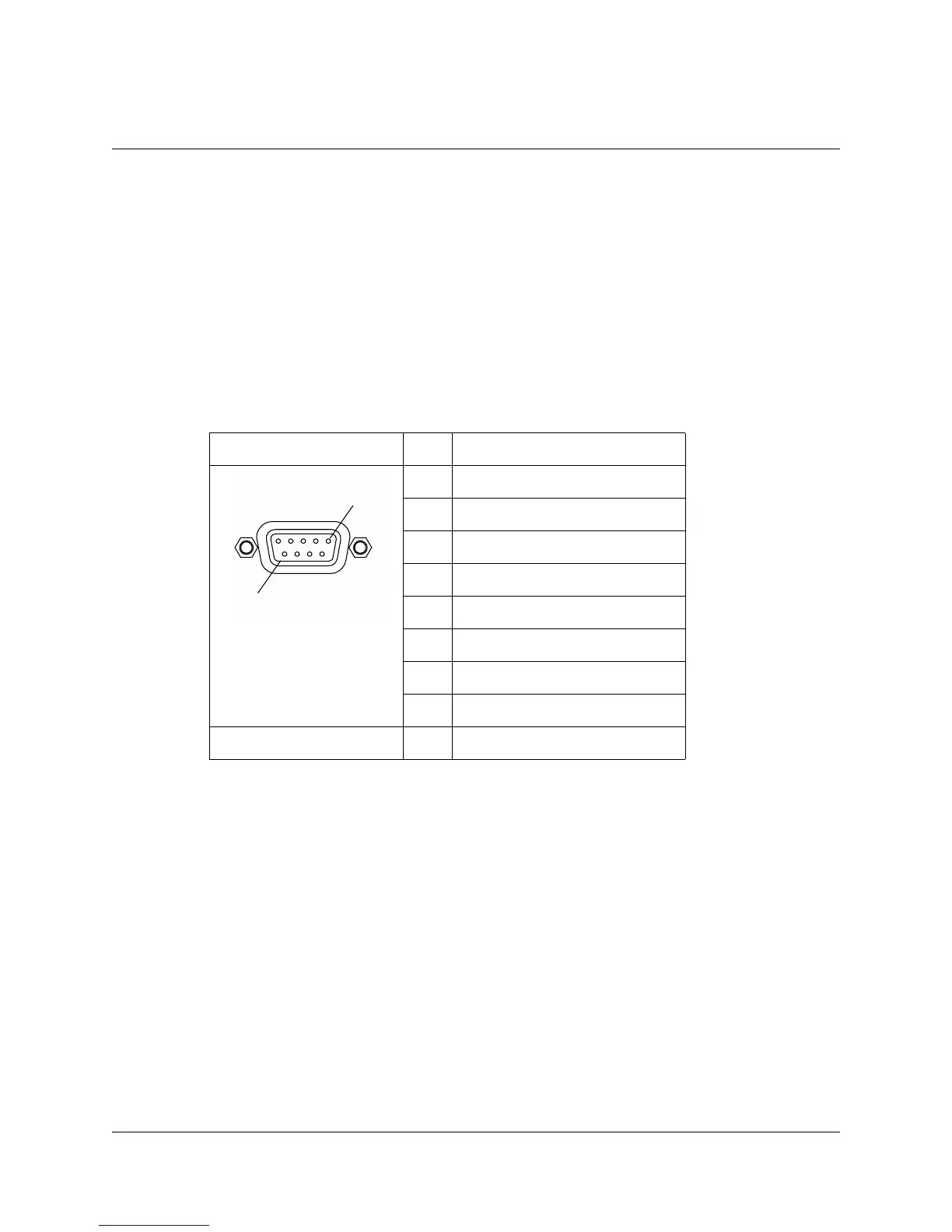

Pin Allocation, RS-232 Data Connector
The table shows the RS-232 Data connector and the pin allocation:
Connector Pin Pin allocation
1Not connected
2TxD
3RxD
4Not connected
5Ground
6Not connected
7Not connected
8Not connected
9Not connected
1
9
