5-60 Model D9854 Advanced Program Receiver Installation and Operation Guide 4021470 Rev D
Setting up Warnings
To Set Up Warnings
Proceed as follows to set up the warning parameters:
1. From the user interface of the D9854, click the Setup tab and then click the
Warnings icon from the sub-page.

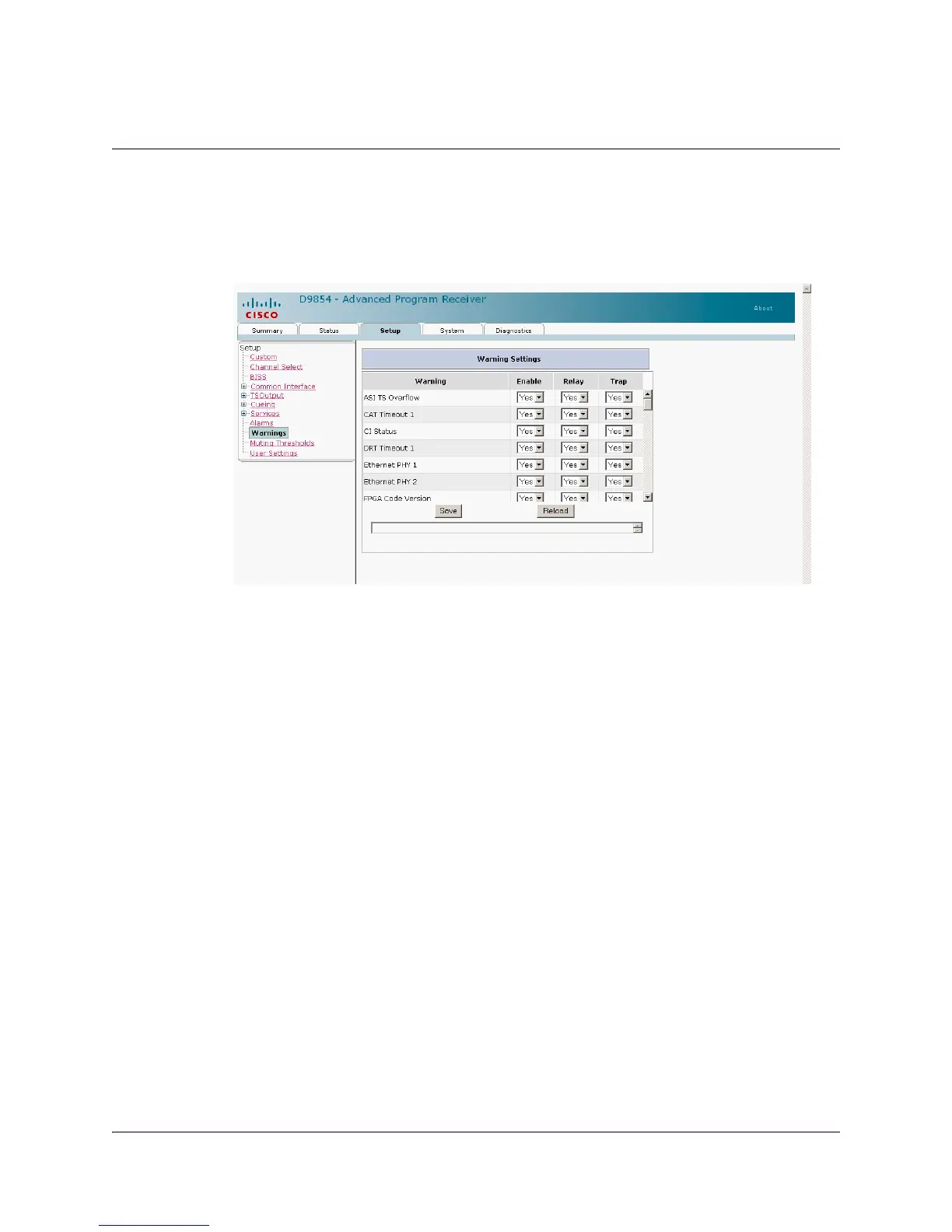

2. The Warning Settings page displays a list of the warning messages.
3. Set Enable to Yes and the warning message will be reported. Set to No and the
fault won’t be reported.
Note: Enable must be set to Yes for Relay and Trap messages reporting to be
functional.
4. Set Relay to Yes for the rear panel relay to be triggered to enable external
equipment connected to the alarm port.
5. Set Trap to Yes and the SNMP trap message will be sent to the trap destination;
otherwise, the warning message will be ignored.
“No” indicates the trap or relay is enabled, but Enable is set to No, which will
prevent relay or trap operation.
6. Click Save.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
