5-36 Model D9854 Advanced Program Receiver Installation and Operation Guide 4021470 Rev D
Configuring the Transport Stream: DPM Global
To Set up the DPM Transport Stream
Proceed as follows to set up the DPM:
Note: The following procedure defines all the available fields. For a typical setup of
the DPM, see Typical set up for Digital Program Mapping (DPM), page 5-42.

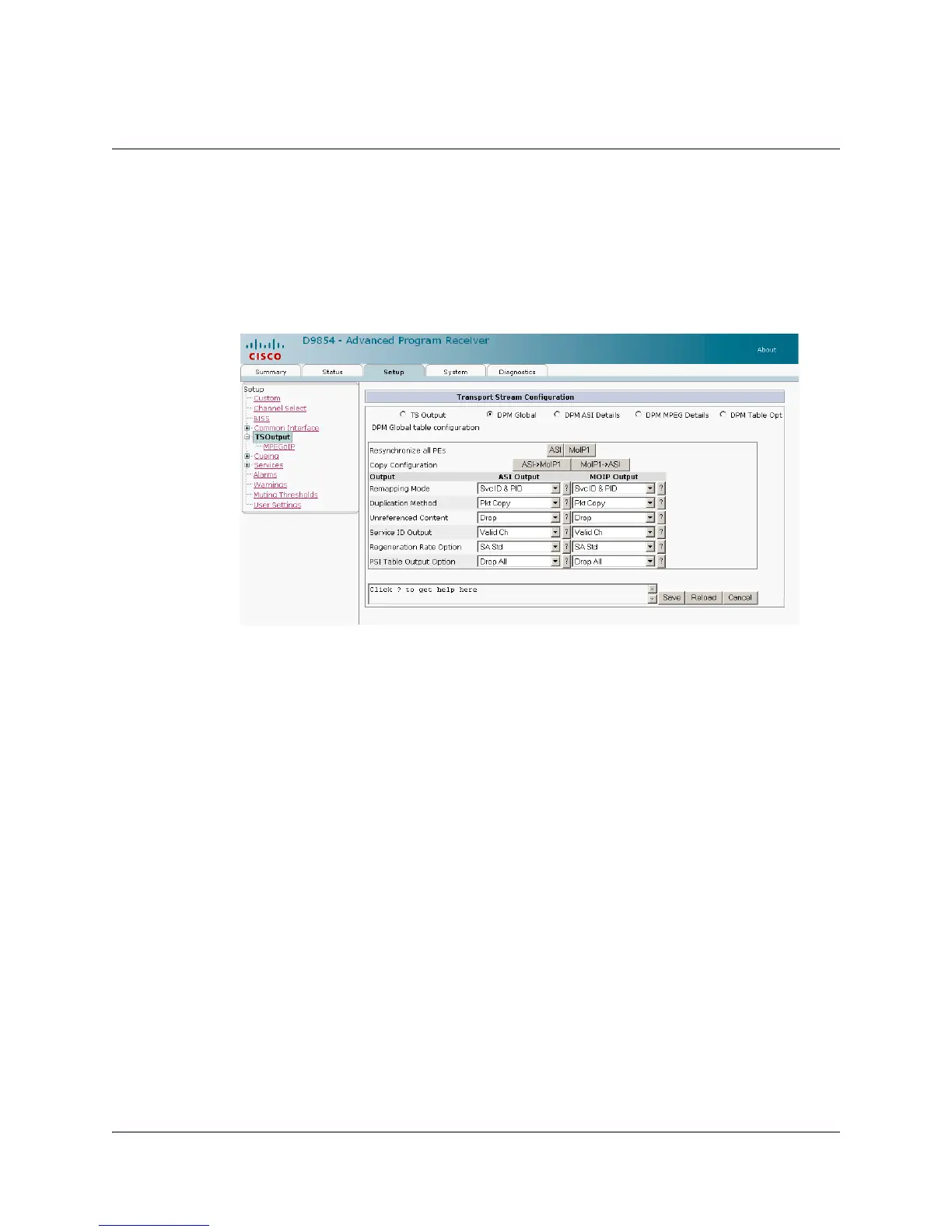

1. From the user interface of the D9854, click the Setup tab and then click the
TSOutput icon from the sub-page and select DPM Global radio button.
2. Click ASI or MOIP1 to resychronize all DPM output with the PMT data for all
program entries.
Note: Any changes made to the DPM Global table configuration automatically
changes the Output Mode to Full DPM Control in the Transport Stream
Configuration page.
When you initially make a change, the page refreshes and the Transport Stream
Configuration page appears with the Output Mode changed to Full DPM
Control. Click Save and continue to edit the DPM Global table parameters.
3. Click ASI->MOIP1 to copy all DPM data from ASI output to the MOIP1 output.
Click MOIP1->ASI to copy the MOIP1 output to the ASI output.
4. There are two different transport stream configurations: ASI and MOIP1. The
following describes both ASI and MOIP1 columns.
