Cisco D9854 User Manual

5-78 Model D9854 Advanced Program Receiver Installation and Operation Guide 4021470 Rev D
Viewing the Program Entry Stream Information
To View the PE Stream Information
Proceed as follows to view the PE stream information:
From the user interface of the D9854, click Diagnostics tab.

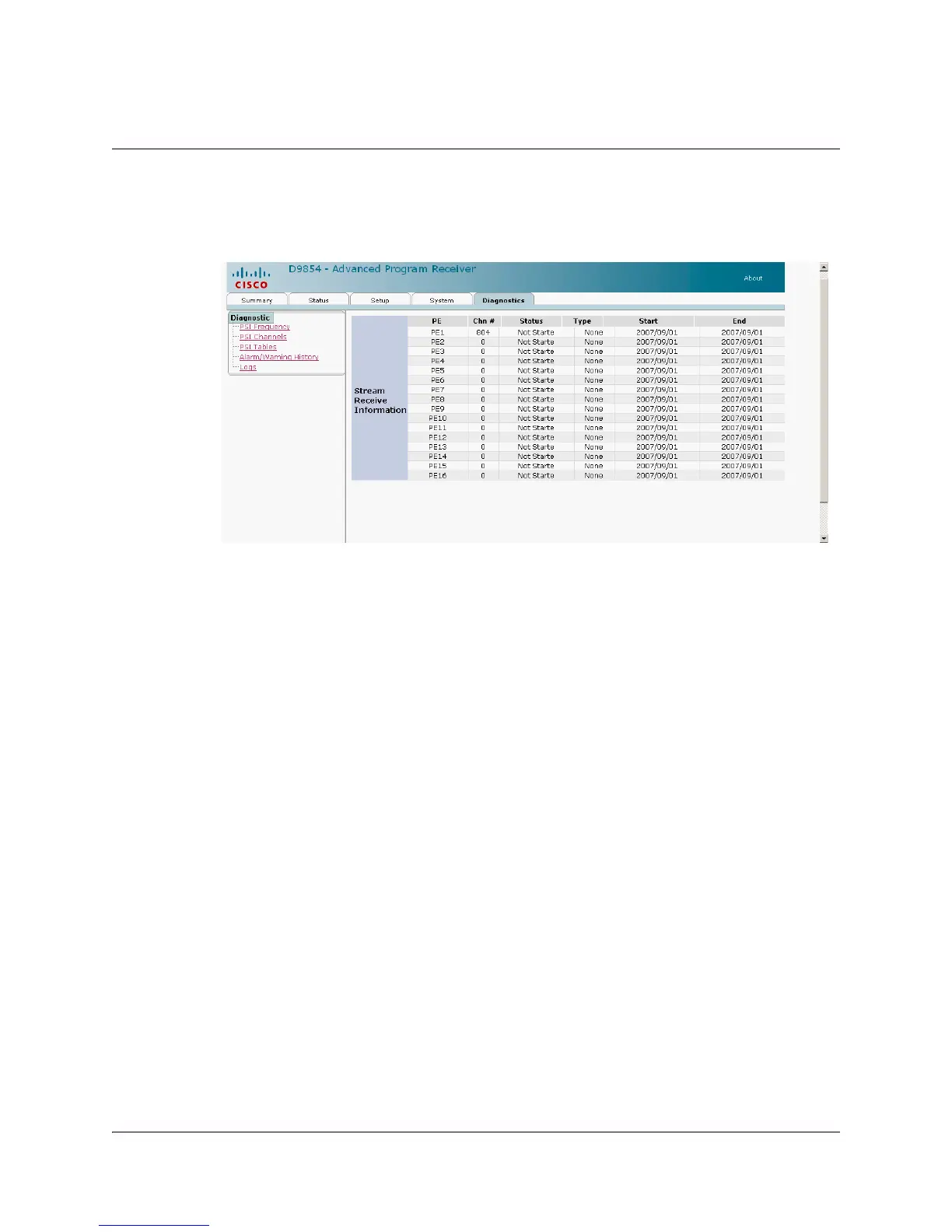

The Stream Receive Information page displays the channel number, status and type
of the program entries (PE).

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
