4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 1-9

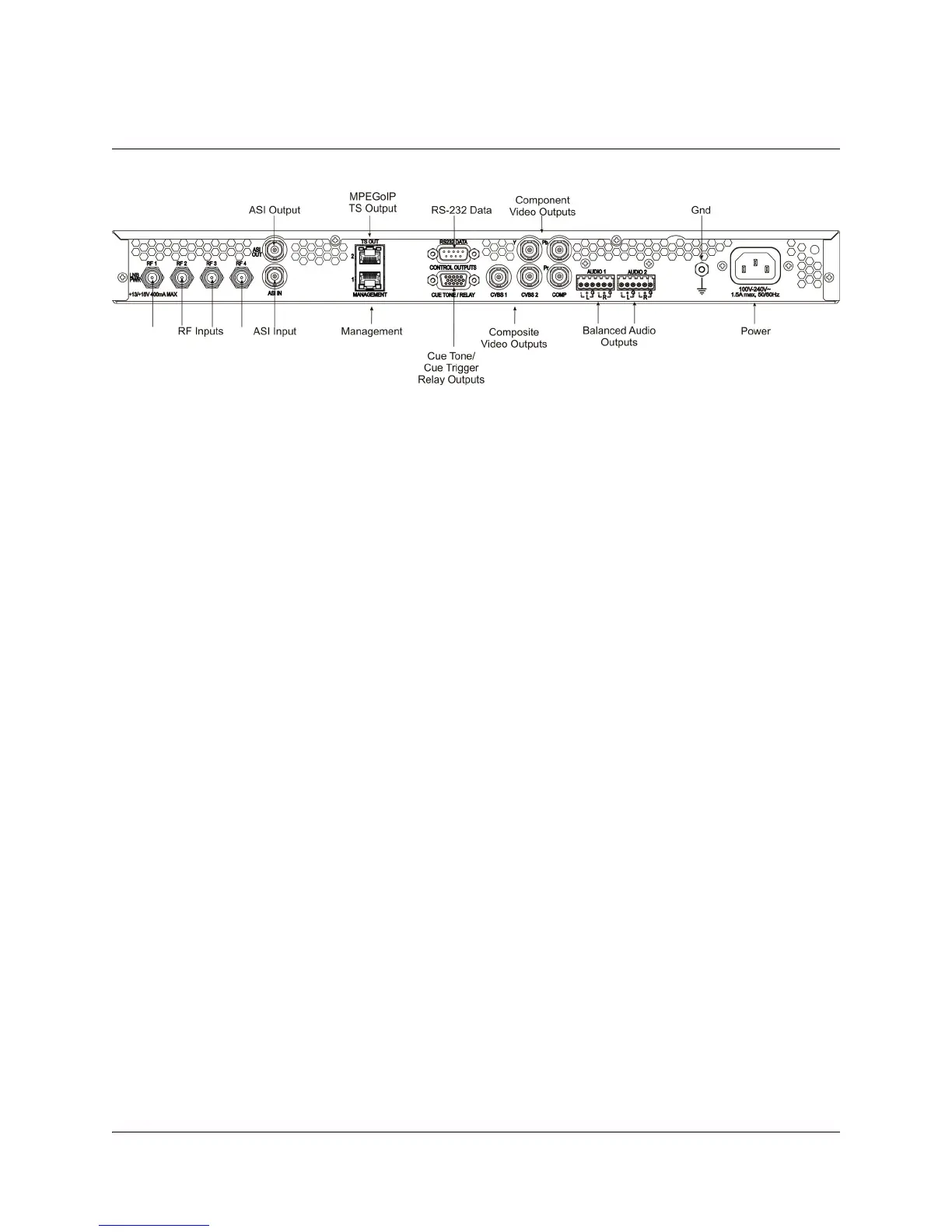

MOIP Outputs (Base Model)
Base Model
1. Press MENU to move to the Main Menu.
2. Press
! to move to the Setup menu. Press SELECT.
3. Press
# to move to the Outputs menu. Press SELECT.
4. Press
! to move to the TS Out menu. Press SELECT.
5. Press
! to move to the MOIP menu. Press SELECT. Press !. Press SELECT for
Rate Control. Use
"# to select “USER”. Selecting “Auto” for Rate Control
results in the device setting the output rate to be the same as the input rate. Press
SELECT. Press
! to move to the User Rate menu. Press SELECT and use the
keypad to enter the desired bit rate. Press SELECT to save changes.
6. Press
# to move to the Output Mode. Press SELECT. Use "# to choose the
output mode for your application. Press Select. Press
! to move to
Descrambling Mode menu. Press SELECT. Use
"# to select the scrambling
mode. Press SELECT.
7. Press
#. Press ! to move to Insert Null Packet. Press SELECT. Use "# to
change the selection to “No”. Press SELECT.
8. Press
# two times. Press SELECT. Use "# to change the selection to UDP or
RTP. Press SELECT.
9. Press
#. Press SELECT. Enter the Destination Address using the keypad. Press
SELECT. Press
! to move to the UDP Port. Press SELECT and enter the Port
number using the keypad. Press SELECT to save the change. Press
! to move to
the source port. Press SELECT and enter the Port number using the keypad.
Press SELECT to save the change. The default is zero, which allows the system
to assign a port.
10. Press #. Press ! two times to move to PCR@IP Start menu. Press SELECT.
Press
# to set value to “No”. Press SELECT to save the value.
11. Press
# two times. Press ! to move to PCR Addition. Press # to select “No”.
12. Press MENU to exit the menu level and save the changes.
