4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 5-29
Configuring the Common Interface (CI) Information

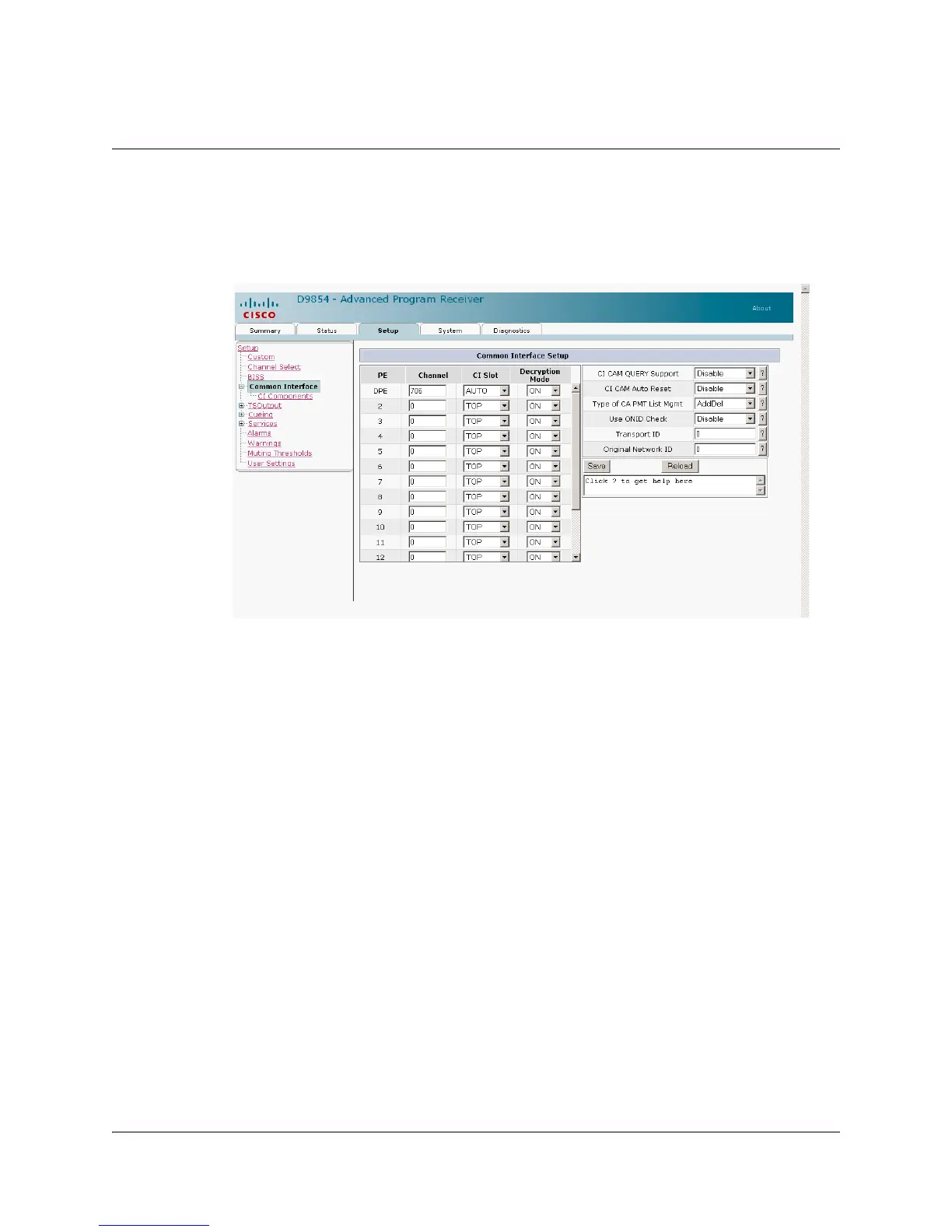

To Configure the Common Interface (CI)
Proceed as follows to configure CI:
1. From the user interface of the D9854, click the Setup tab and then click the
Common Interface icon from the sub-page.
2. For PE1 (DPE), ensure that the CI Slot to Auto and the Decryption mode to On
(default) for the software to automatically assign the top or bottom slot that
matches the stream. COMP and OFF Decryption modes are invalid.
3. If you use PE2 to PE16, you must select to decrypt the CAM that is located in the
Top or Bottom slot in the CI Slot drop-down.
4. The Decryption Mode determines whether to decrypt the program selected for
the PE on the selected CAM (Yes, No, Comp). Select Comp to customize the PID
or stream type to decrypt.
5. If you selected Comp, you must configure the parameters in the CI Components
Setup page. For details, see Setting up the Common Interface: CI Components,
page 5-31.
6. Select Enable in the CI CAM Query Support drop-down to query the CAM
prior to decryption to ensure that the card can be decrypted. The default is
Disable.
7. Select Enable in CI CAM Auto Reset to automatically reset the card. The default
is Disable.
8. In the Type of CA PMT List Mgmt, select AddDel (default) to add or delete
programs individually in the CAM. Set to Update All to automatically update
and reset all the programs each time you add or modify the programs available
via the CAM.
