4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 5-49
Setting up Cueing: Cue Tones
To Set Up Cue Tones
Proceed as follows to set up cue tones:

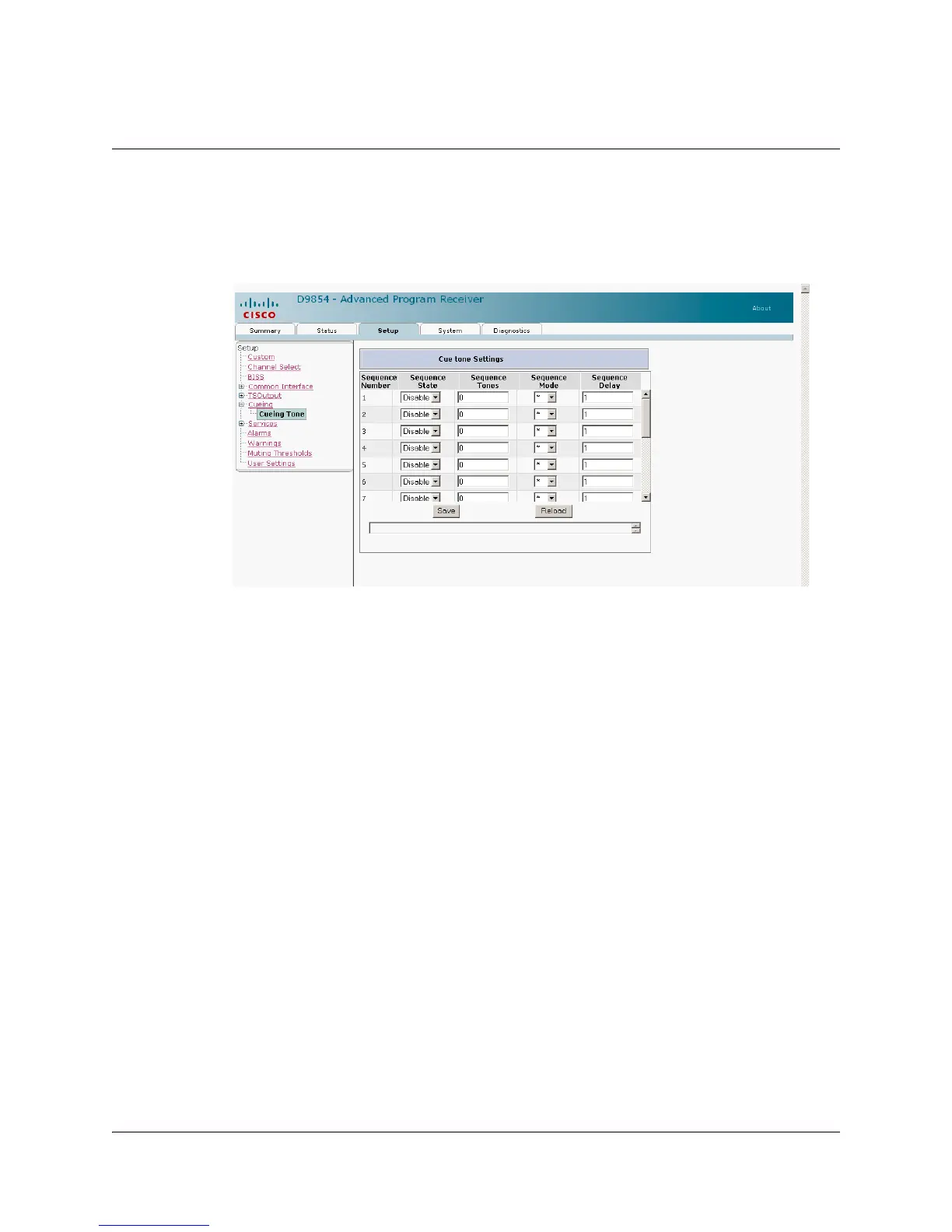

1. From the user interface of the D9854, click the Setup tab, expand Cueing, and
then click the Cueing Tone icon from the sub-page.
2. The Sequence Number lists the tone sequences. The receiver supports up to 16
tone sequences. You can configure the state, tones, mode, and delay for each
tone sequence.
3. Set the Sequence State (Enabled or Disabled). When disabled, no cue tone is
output.
4. Enter the Sequence Tones, which are the cue tone digits used in your network
(1 to 999).
5. Select the Sequence Mode, which specifies what to transmit in the sequence.
Select * for Start Tone, # for the End Tone, and */# for transmitting the Start
Tone and then the End Tone after waiting the specified delay time in the option
below.
6. Enter the Sequence Delay, in seconds, that is sent when */# is used in the Mode
option above. You can enter a value in the range from 1 to 255. The default is 30.
7. Click Save.
