4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 5-57
Setting up the Video Service
To Set up the Video Service
Proceed as follows to set up the video service:

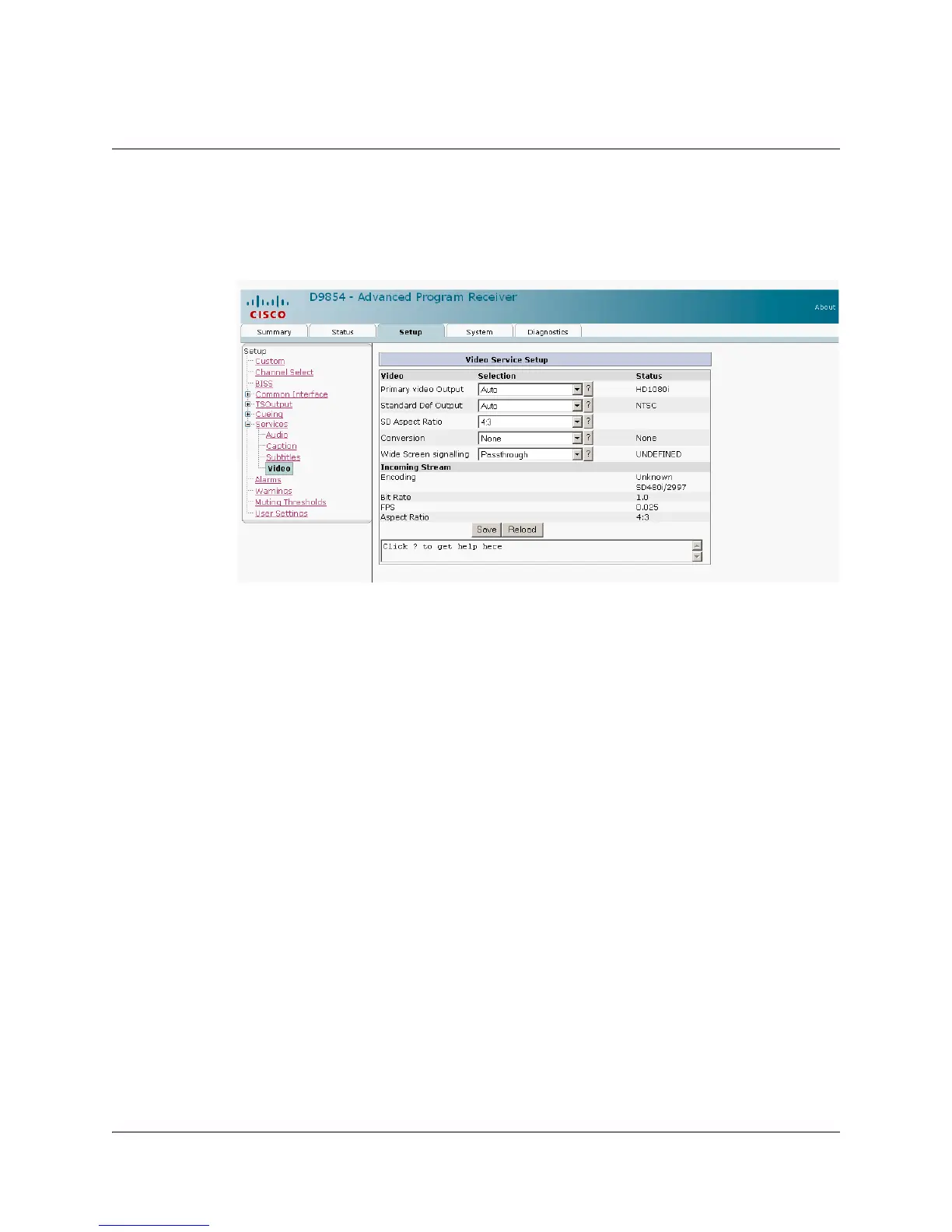

1. From the user interface of the D9854, click the Setup tab, expand Services and
then click the Video icon from the sub-page.
2. The Status column displays the current settings and the Selection column allows
you to change the video settings as follows:
3. Select the Primary Video Output format. The options are Auto, HD 720p, or HD
1080i.
4. In the Standard Def Output drop-down, select the video format for the output
when the input video is SD format. The options are Auto, NTSC, PAL-N (AR),
PAL-M, or PAL-B/G/I/D. You must use NTSC for 525-line systems and PAL-
B/G/I/D for 625-line systems.
5. Select the SD Aspect Ratio of your TV (4:3 or 16:9, wide aspect ratio). The
default is 4:3. Set it to the corresponding value.
6. Select the Conversion that the receiver will perform on the incoming signal for
the picture to be displayed correctly (i.e., to correspond to the aspect ratio of
your TV) on your TV, based on your selection.
The options are None, Auto, Auto AFD (Auto setting using Active Format
Descriptor), 16:9 L/B (letter box), 4:3 P/B (pillar box), 14:9, 4:3 CCO, and 16:9
Scale. The default is Auto.
