4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 5-23
Setting up the TS Input
To Set up the Transport Stream (TS) Input
Proceed as follows to set up the TS Input:

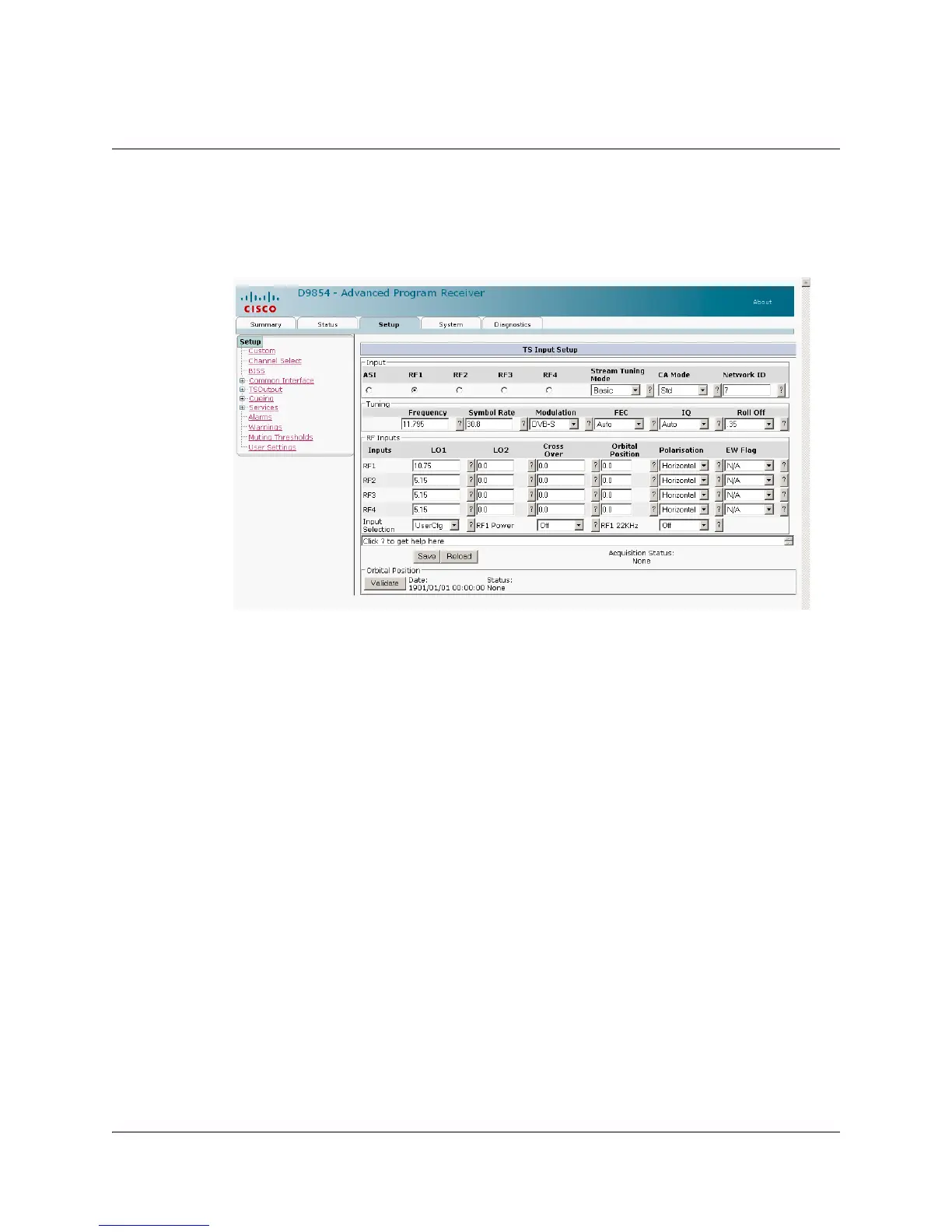

1. From the user interface of the D9854, click the Setup tab and then click the Setup
icon from the sub-page.
2. Select a TS input to activate (ASI, RF1, RF2, RF3, or RF4).
3. From the Stream Tuning Mode drop-down, select the mode used to build
channel lists from allowed service lists. The selections are Auto, Basic, FixPID, or
Custom. The default is Basic.
4. Select the type of Conditional Access (CA Mode) to determine which programs
can be viewed via the receiver from the CA Mode drop-down. Select Std
(standard) for PowerVu signal or Open conditional access for free-to-air (e.g., in-
the-clear signals). The default is Std.
5. Enter the Network ID of the uplink signal the receiver is to receive when using
this preset. The receiver’s Network ID must match the Network ID associated
with the transmitted signal. You can enter a value in the range from 1 to 65535.
The default is 1.
6. Enter the current downlink operating Frequency used by the receiver for tuning
the received digital signal. You can enter a value in the range from 0.0 to 15.0
GHz.
7. Type the Symbol Rate. The symbol rate must match that of transmitted signal.
You can enter a value in the range from 1.0 to 45.0 Ms/s for DVB-S, 1.0 to 30.0
for DVB-S2 if Pilot Present is set to Yes on the Front Panel, or 5.0 to 30.0 for DVB-
S2 if Pilot Present is set to No on the Front Panel.
8. Select the Modulation Type for the received signal (DVB-S or DVB-S2).
