Viewing the Output Status
To View the Output Status
Proceed as follows to view the Output Status page:
From the user interface of the D9854, click the Status tab, and then click the Output
Status icon from the sub-page.

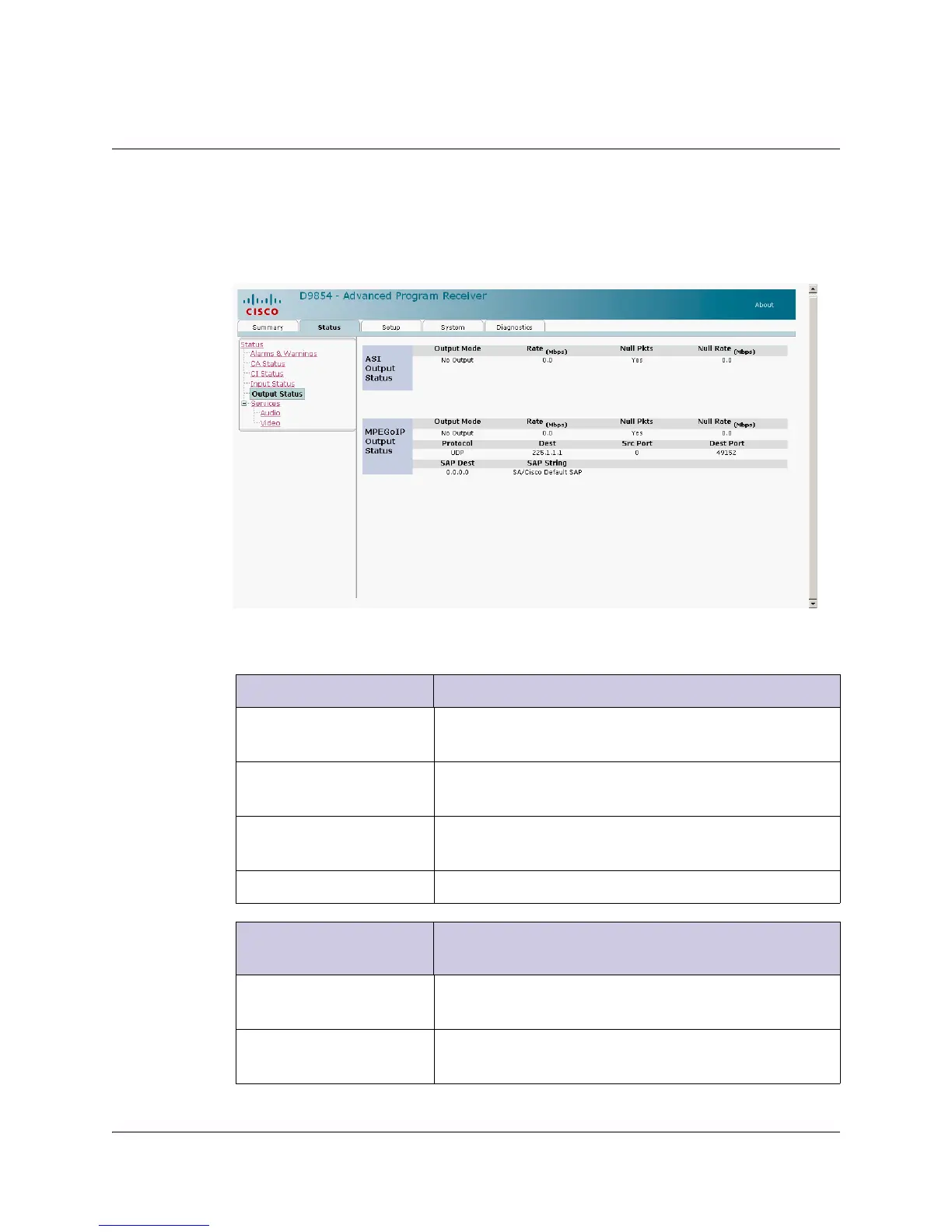

The Output Status page displays the following ASI and MPEGoIP Output Status
information:
ASI Output Status Description
Output Mode The DPM output mode. For a description of each
output mode, see Output Mode, page 5-17.
Rate (Mbps) The output rate (0 to 213 Mbps). It is only used if
Rate Control is set to User.
Null Pkts Displays whether to insert null packets in the output
stream (Yes or No).
Null Rate (Mbps) The null packet rate, in Mbps.
MPEGoIP Output
Status
Description
Output Mode The DPM output mode. For a description of each
output mode, see Output Mode, page 5-17.
Rate (Mbps) The output rate (0 to 999.99999 Mbps). It is only
used if Rate Control is set to User.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
