5-66 Model D9854 Advanced Program Receiver Installation and Operation Guide 4021470 Rev D
Viewing the System Status
To View the System Status
Proceed as follows to view the System status page:
1. From the user interface of the D9854, click the System tab, and then the System
icon from the sub-page.

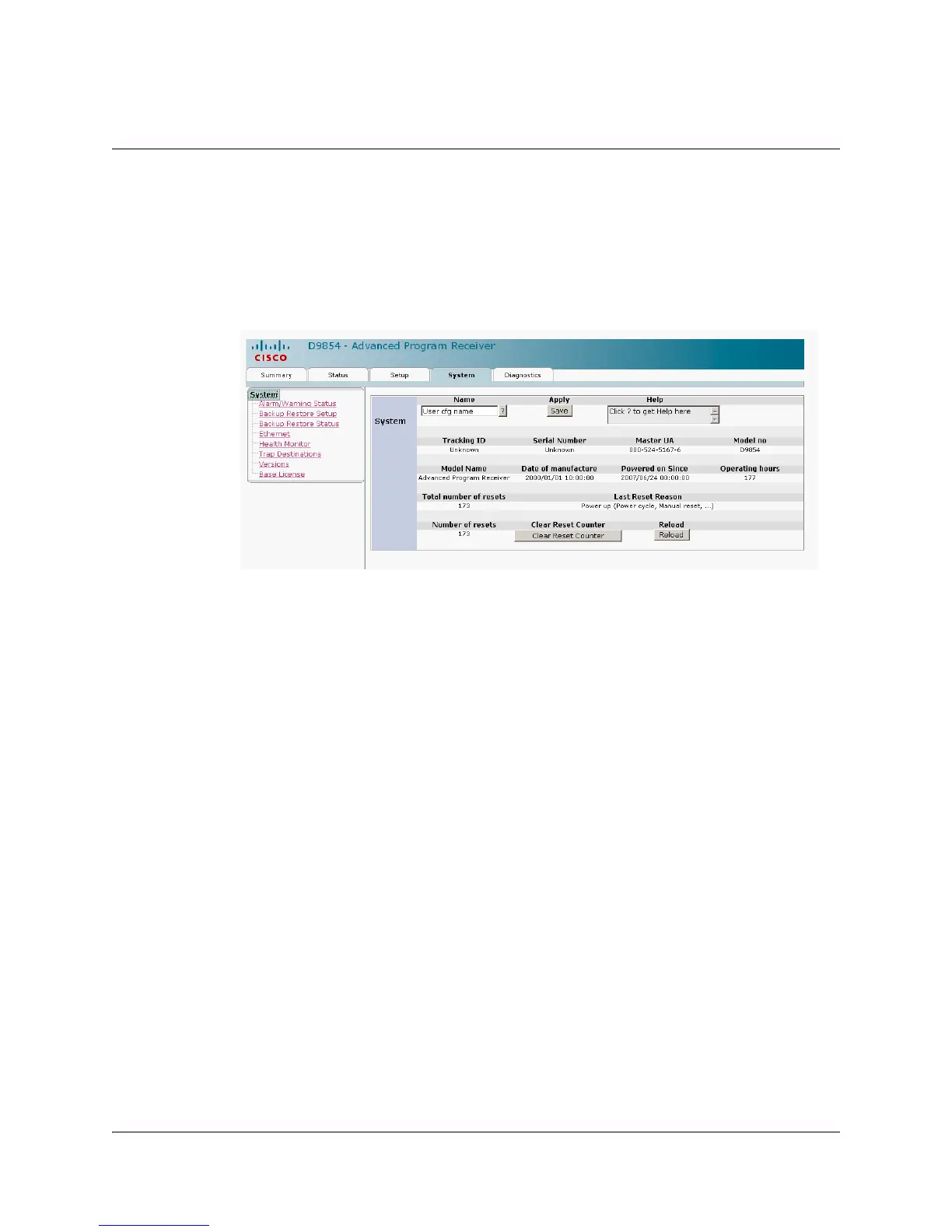

The System page displays the parameters associated with the D9854 system,
such as serial number, model number, number of resets and reset reason.
2. You may optionally change the device Name and click Save. The default name
is D9854.
3. Click Clear Reset Counter to clear the Number of resets field and it resets the
counter back to 0.
