4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 3-9
Connecting the Audio Outputs
Connectors for the Digital Audio Output
The configuration of the D9854 receiver outputs two stereo channels. The D9854
receiver also supports encoding of audio embedded in the HD-SDI video signal.

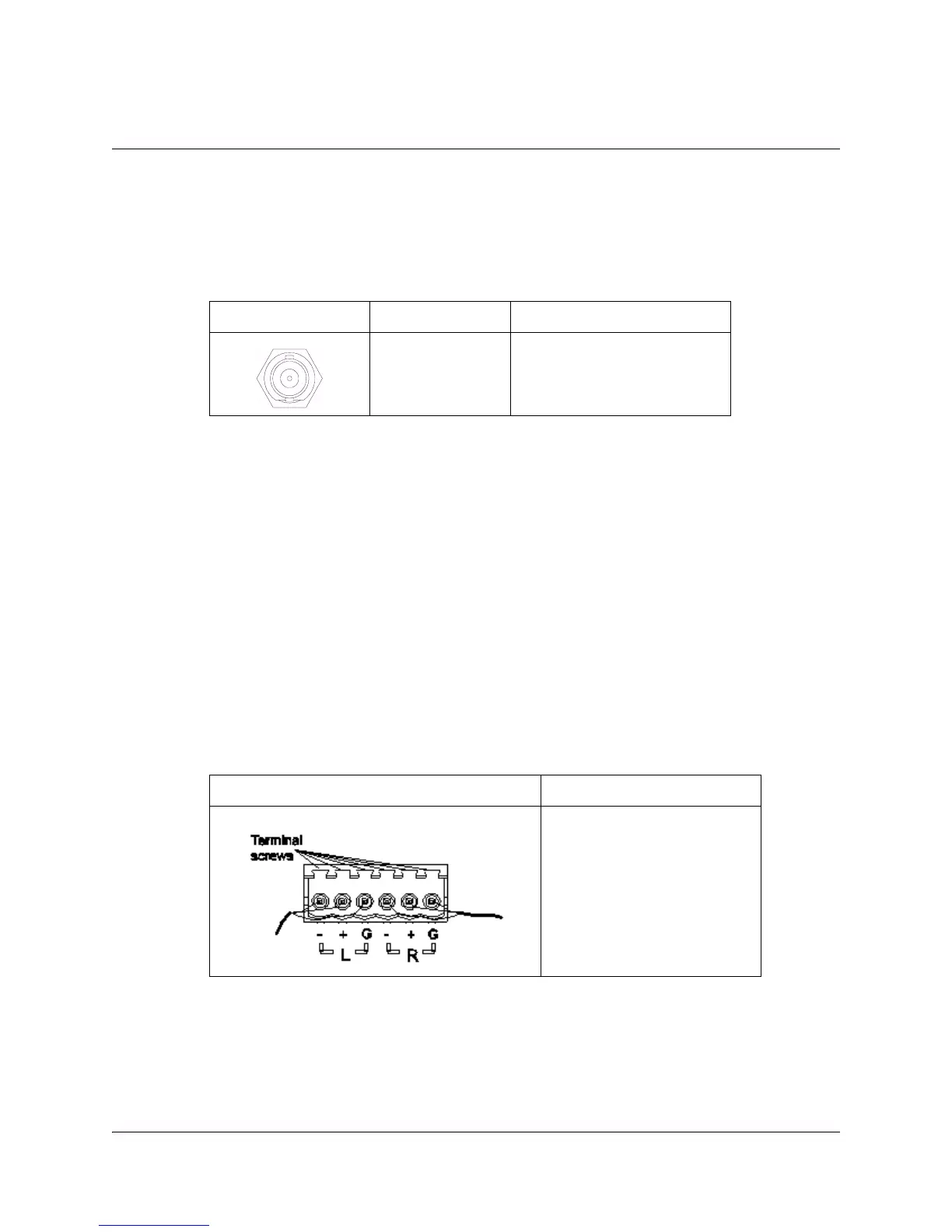

The following drawing shows the audio connector.
Note: The digital audio output is always 75-ohm single-ended.
To Connect the Digital Audio Outputs
Connect the audio outputs as follows:
1. Connect digital audio output broadcast equipment to the AES-3id connectors.
The two stereo channels are useful for Dolby Digital 5.1 passthrough
applications. Use a high-quality, double-shielded RJ6 coaxial cable.
Hint: For digital audio connections, use a balanced cable designed for 110-ohm
AES-EBU digital audio.
To Connect the Balanced Audio Output
1. Connect the AUDIO 1 and AUDIO 2 balanced audio outputs to monitoring
equipment. Use a multi-conductor, pluggable cable from the receiver's AUDIO 1
and AUDIO 2 (Left and Right) terminals to your equipment, as shown in the
following illustration.
2. Feed the stripped ends of the positive, negative and ground wires into the
appropriate terminals as labelled, and then screw the terminal screws (located
on the top of the terminal block) finger tight to each wire.
Connector Interface type Connector type
AES 292M BNC female.
Connector Connector type
Terminal Block
