4021470 Rev D D9854 Advanced Program Receiver Installation and Operation Guide 4-9
Startup Screen, Continued
LCD Symbol
Various symbols will periodically appear in the top right-hand corner of the LCD
panel, indicating which user actions are currently acceptable. The following

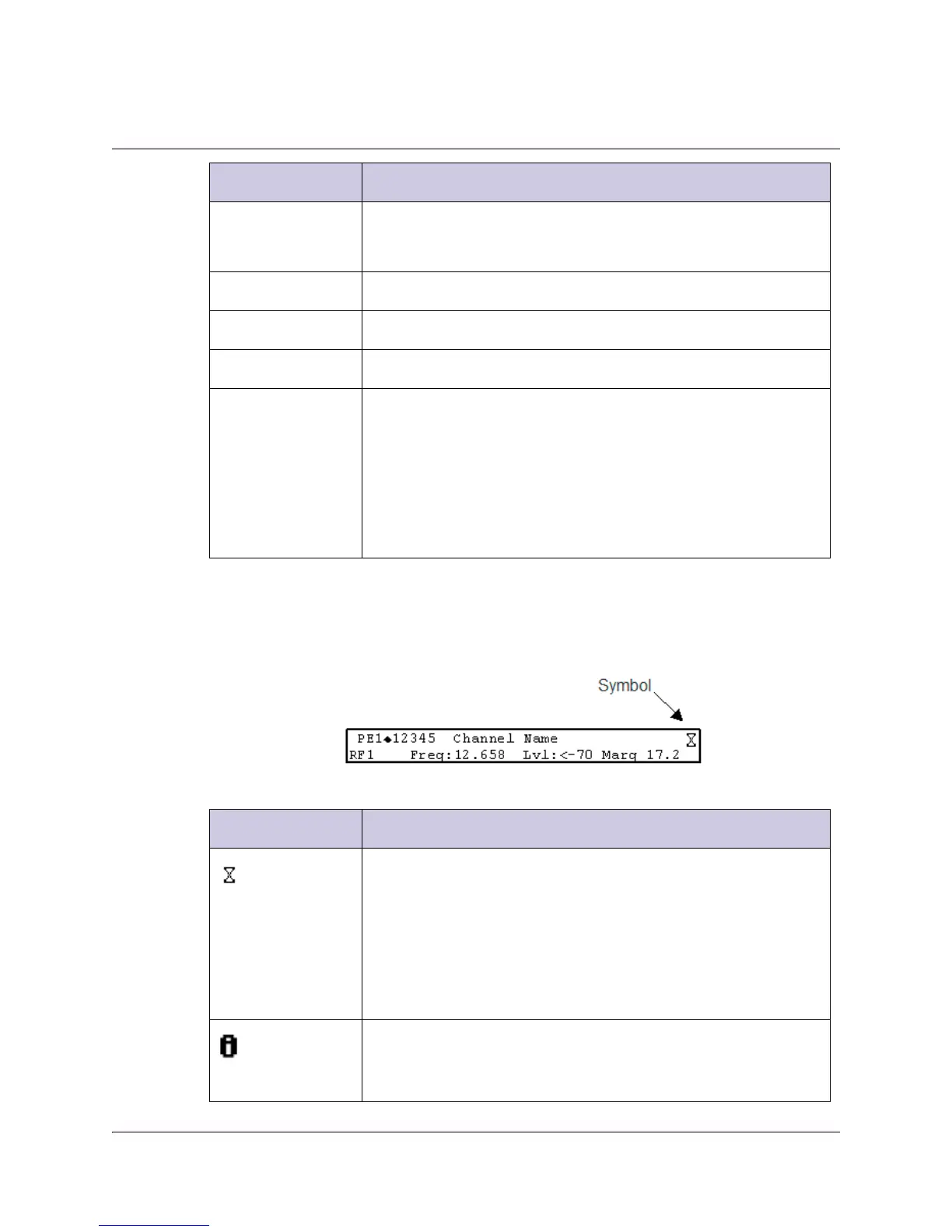

displays the location of the symbol:
The following table describes the various symbols:
LCD Setting Description
RF Active RF input port.
Note: ASI will be shown if the ASI input port is active.
Freq: Downlink frequency of the tuned signal in GHz.
Lvl: Signal level in dBm.
Marg: Carrier-to-noise (C/N) margin in dB.
DEGD The Degraded indicator only appears if there is a degraded
tuning information in use. This occurs if the SI tables are not
consistent on the incoming stream. The receiver will
attempt to identify the service list based on the information
available. Check the SI acquisition and stream information
to ensure that the channels, network, and tuning
information is operating as expected.
LCD Symbol Description
The Hourglass indicates that parameters are being saved in
the background. You can continue to perform any operation
desired.
Note: If a power-cycle/interruption occurs while the
hourglass is displayed, some parameters may not be saved.
Refrain from powering off the unit while the hourglass is
displayed.
The Info symbol indicates that the INFO key is active. In
most cases, this will display contextual information on the
LCD screen.
