Chapter 8 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling
Configuring Layer 2 Protocol Tunneling on the Switch

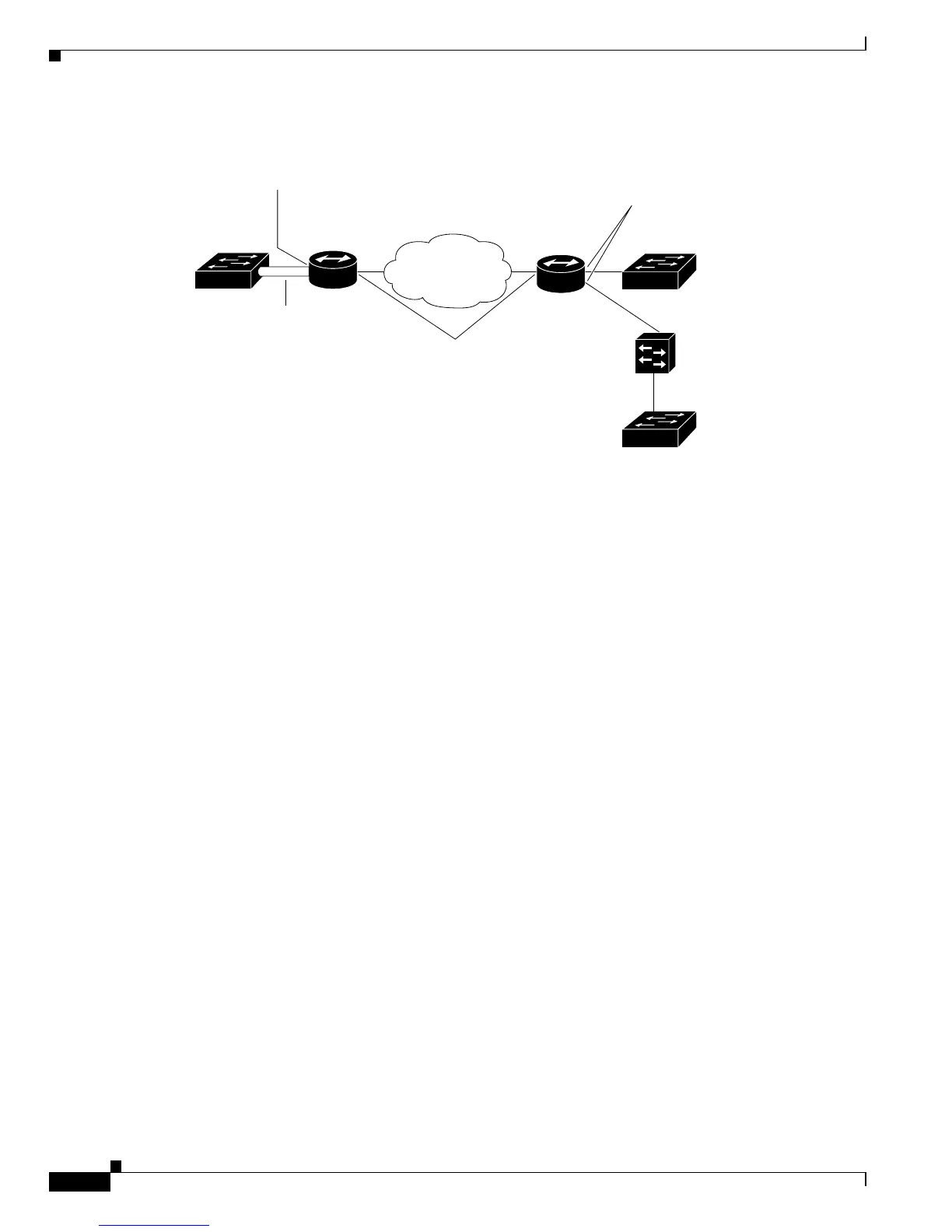

Figure 8-2 Layer 2 Protocol Tunneling on Trunks Network Example
Specifying Drop and Shutdown Thresholds on Layer 2 Protocol Tunneling Ports
The shutdown threshold provides a type of rate limiting that prevents the edge switch from being
overwhelmed by attached customer switches. We recommend that you configure a shutdown threshold
value whenever you use Layer 2 protocol tunneling ports with 802.1Q tunneling.
We recommend that the maximum value for the shutdown threshold is 1000. This value reflects the
number of PDUs that an edge switch can handle per second (without dropping any) while performing
egress and ingress tunneling. For an edge switch, the shutdown threshold value determines the number
of Layer 2 protocol tunneling ports that can be connected to customer switches and the number of
customer VLANs per Layer 2 protocol tunneling port. In determining the recommended maximum value
of 1000, egress tunneling from the service provider network was also taken into consideration.
To determine the number of Layer 2 protocol tunneling ports (links) and the number of customer VLANs
per Layer 2 protocol tunneling port (VLANs per link) that an edge switch can handle, multiply the
number of Layer 2 protocol tunneling ports by the number of VLANs. The result should be less than or
equal to 1000. Some acceptable configurations are as follows:
• 1 Layer 2 protocol tunneling port x 1000 VLANs
• 2 Layer 2 protocol tunneling ports x 500 VLANs
• 5 Layer 2 protocol tunneling ports x 200 VLANs
• 10 Layer 2 protocol tunneling ports x 100 VLANs
• 20 Layer 2 protocol tunneling ports x 50 VLANs
• 100 Layer 2 protocol tunneling ports x 10 VLANs
