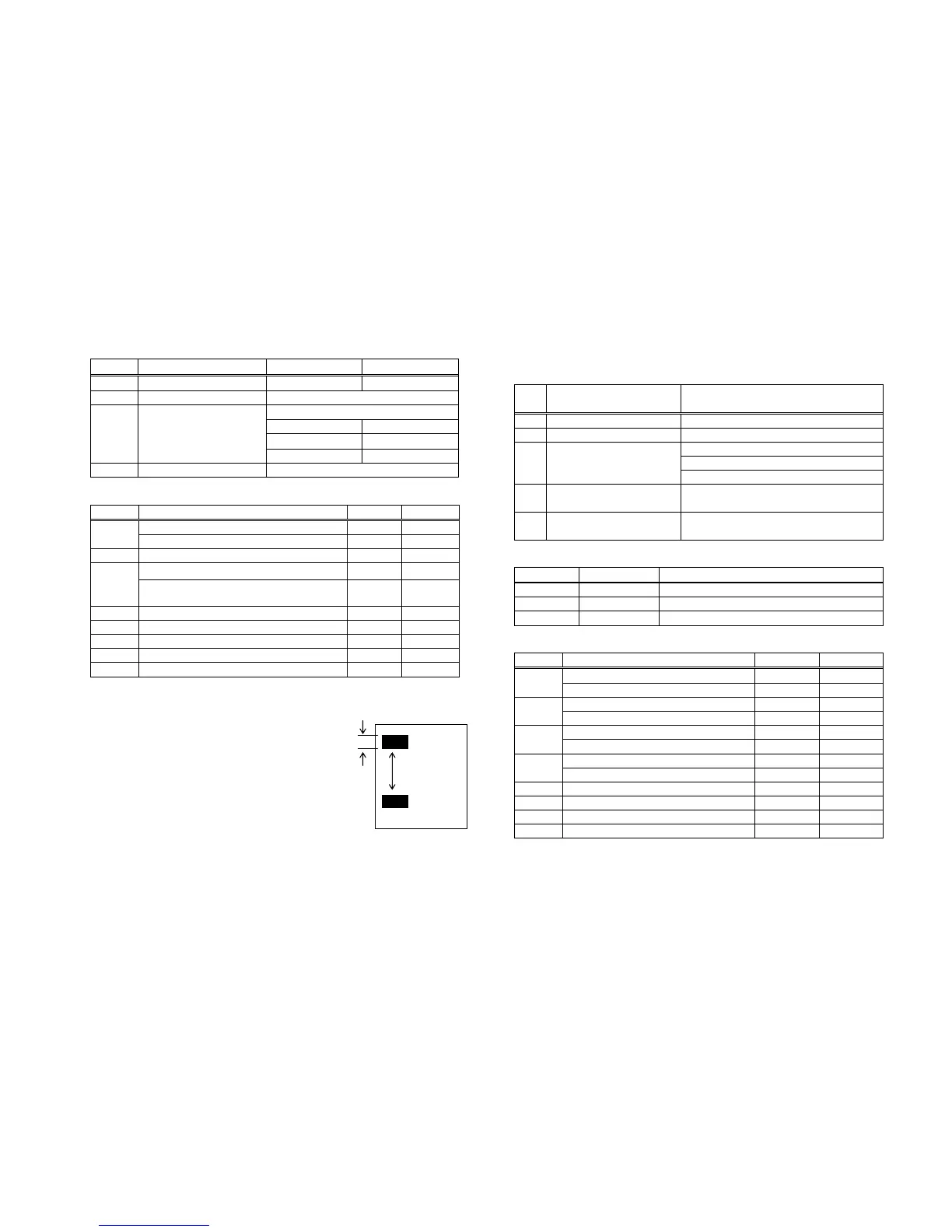

- 347 -
PMU series
n Type of Printer ID Specification Value (Hex.)
1, 49
Model ID
PMU series 3DH
2, 50 Type ID Refer to table “Type ID” below
Differs by ROM version.
PMU2XXX 90H
PMU2XXXII A0H
3, 51 ROM version ID
PMU2300III B0H
4, 52 Black mark Length Depends on Black mark paper (mm)
• Type ID If n=2, 50 is specified:
Bit Meaning Hex. Decimal
Not equipped for 2 byte code support 00H 0
0
Equipped for 2 byte code support 01H 1
1 Fixed 00H 0
Thermal paper 00H 0
2
Black mark paper
(when Black mark paper is selected)
04H 4
3 Reserved 00H 0
4 Fixed 00H 0
5 Reserved 00H 0
6 Reserved 00H 0
7 Fixed 00H 0
n = 4, 52 specified (only for B.M specs)
The Black mark length/label gap length and mark interval/label length
currently used are returned in 4-byte code. All fractional parts in
millimeters are rounded off.
Byte 1 + Byte 2 x256 = Black mark interval
Byte 3 + Byte 4 x256 = Black mark length mm
Black mark paper
• Printer information configuration on and after transmitted n=65 is shown
below.
n
Kind of Printer
Information
Information
65 Firmware version Differs by firmware version.
66 Manufacturer name CITIZEN
PMU2XXX
PMU2XXXII
67 Model name
PMU2300III
69
Kinds of multi-language
fonts
Japanese Kanji specifications:
KANJI JAPANESE
112 State of DSW
Refer to table “DSW” below
(only serial model)
• Sends printer information specified by n=65 or more.
Hex. Number of Data
Header 5FH 1
Data 20H to 7FH Subject to item to be responded
NULL 00H 1
• DSW If n=112 is specified:
Bit Function Hex. Decimal
Dip switch [DSW5] is OFF
00H 0
0
Dip switch [DSW5] is ON 01H 1
Dip switch [DSW6] is OFF 00H 0
1
Dip switch [DSW6] is ON 02H 2
Dip switch [DSW7] is OFF 00H 0
2
Dip switch [DSW7] is ON 04H 4
Dip switch [DSW8] is OFF 00H 0
3
Dip switch [DSW8] is ON 08H 8
4 Reserved 00H 0
5 Reserved 00H 0
6 Fixed 40H 64
7 Fixed 00H 0
*only serial model
(1)
(2)
