Interface
After connecting the DNI the serial interface must be congured accordingly. Open the Serial
Interfaces dialog via Setup > Interfaces > Serial.

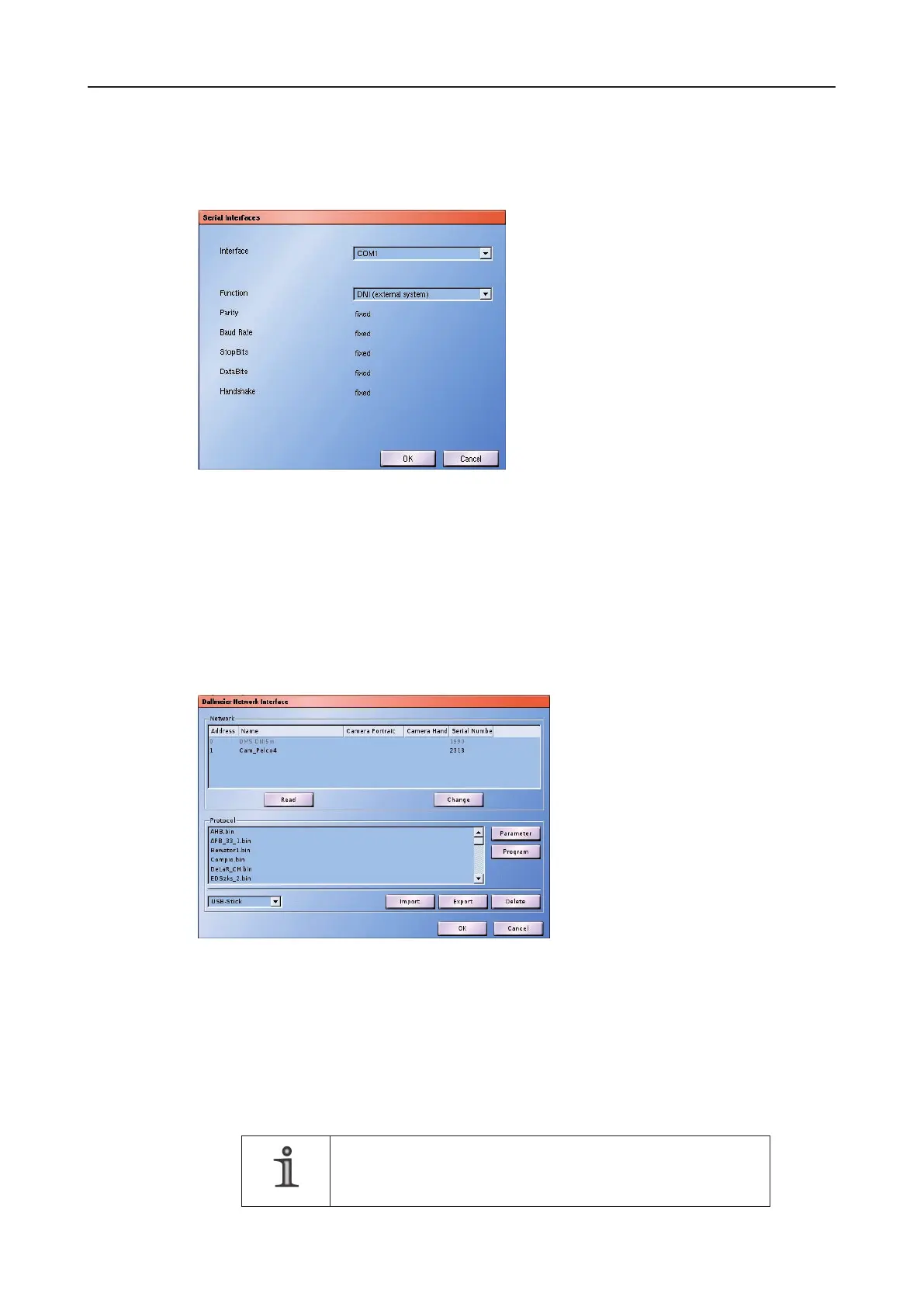

Fig. 14-7: Serial Interfaces dialog
Ø Select the COM port to which the DNI is connected as the Interface.
Ø Set DNI (external system) as the function.
Ø Conrm with OK.
Protocol
The next step is to congure the DNI itself. Open the Dallmeier Network Interface dialog
via Setup > Interfaces > DNI Setup.
Fig. 14-8: Dallmeier Network Interface dialog
Ø First open the data for the DNI Network by clicking on Read.
Ø Mark the relevant DNI in the Network box.
Ø Select the required Protocol.
Ø Congure the DNI by clicking on Program.
Ø Conrm with OK.
NOTE
A precise description of the procedure is set out in the appro-
priate DNI documentation.
