12 Contact IN
Ø Open the Contact In dialog via Setup > Interfaces > Contact IN to congure the contact
inputs.

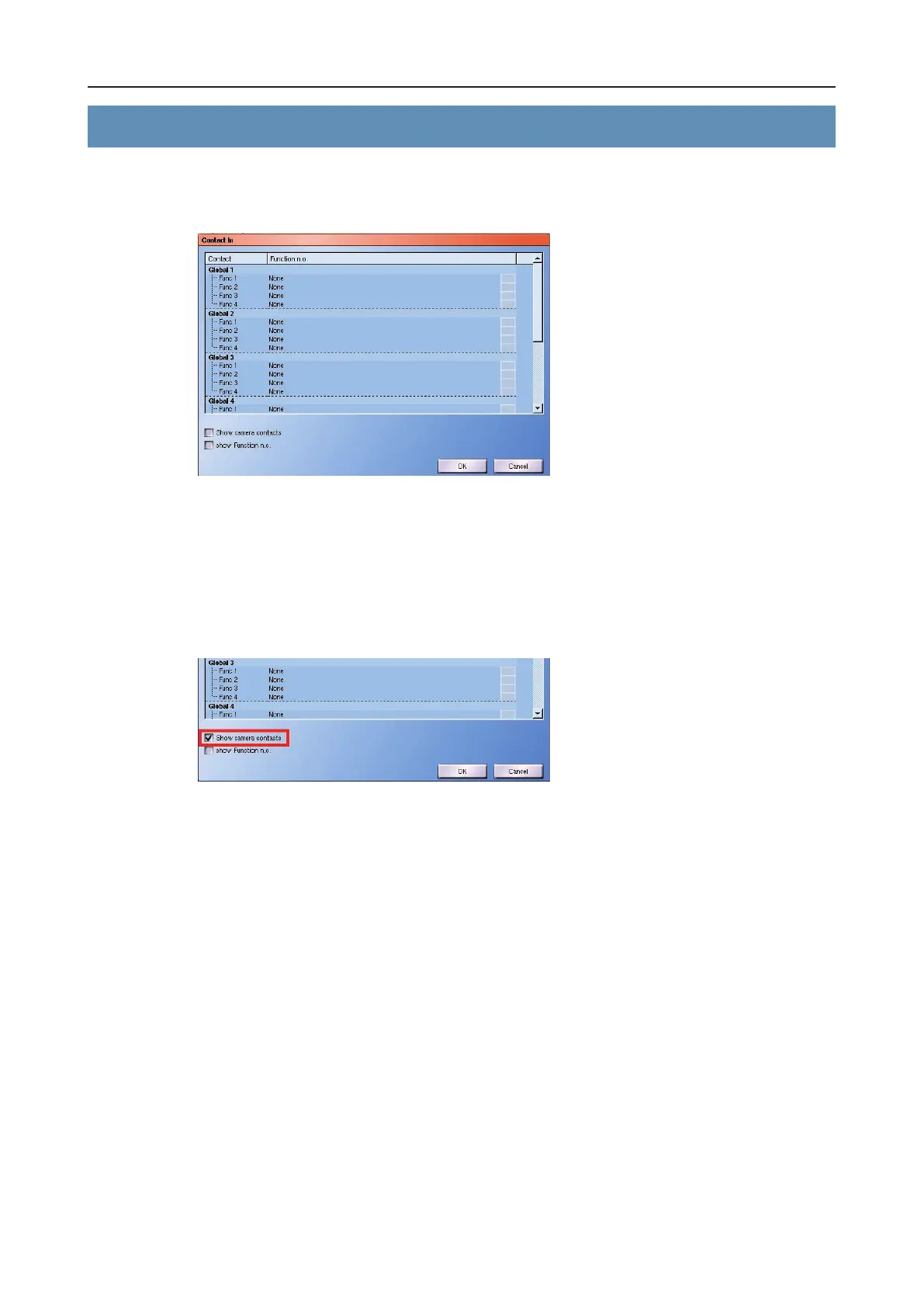

Fig. 12-1: Contact In dialog
12.1 Global and camera-related contacts
First of all only the freely congurable global contacts will be displayed (Global 1 – 6).
The camera-related contact inputs (camera 1 to max. 16) are displayed if you check the
Show camera contacts checkbox.
Fig. 12-2: Show camera contacts
The camera contacts can be preset using Start camera. Therefore the recording of the
relevant camera is started if the required recording settings have also been made.
Make the required recording settings under Setup > Recording > Cameras/Tracks (see
also the chapter entitled Recording Settings).
If you do not wish to record a camera using the Contact recording mode, the function can
be changed in the same way as the global contacts (see below).
12.2 Make and break contact functions
First of all only the conguration of the so-called Make contact function (function n.o.)
of the contact inputs will be displayed. The functions that are executed when the contact
switches (normally when it closes) are dened here.
In addition, however, functions can also be dened that are executed when the contact is
released (normally when it is opened).
