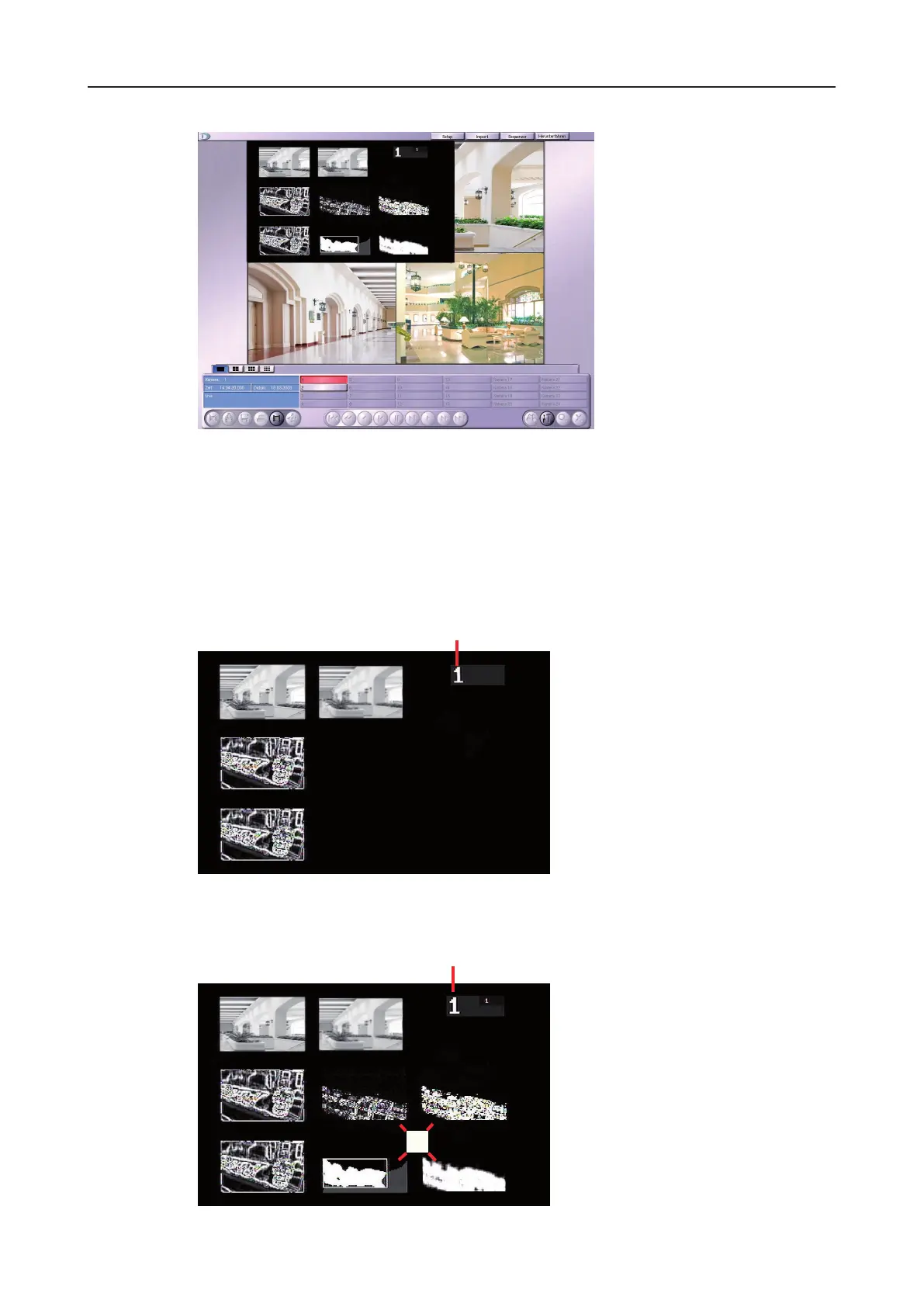

Fig. 7-9:Example output of test results (compare)
7.4.2.1 Compare
The Compare test mode shows the results of the picture comparison (motion detection)
function in four different views.
The output alternates between all the analog cameras that are congured for Picture com-
parison recording mode.
Fig. 7-10: Example of test mode Compare (without detection)
Please note that the numbering (A) of the cameras starts at 0 (camera 1 = 0, camera 2 =
1, etc.).
Fig. 7-11: Example of test mode Compare (with detection)
A
B
C
