8.3.1 Camera and track name
In the Camera Name column all cameras are displayed as buttons. Connected analogue
cameras are labeled with a yellow symbol.

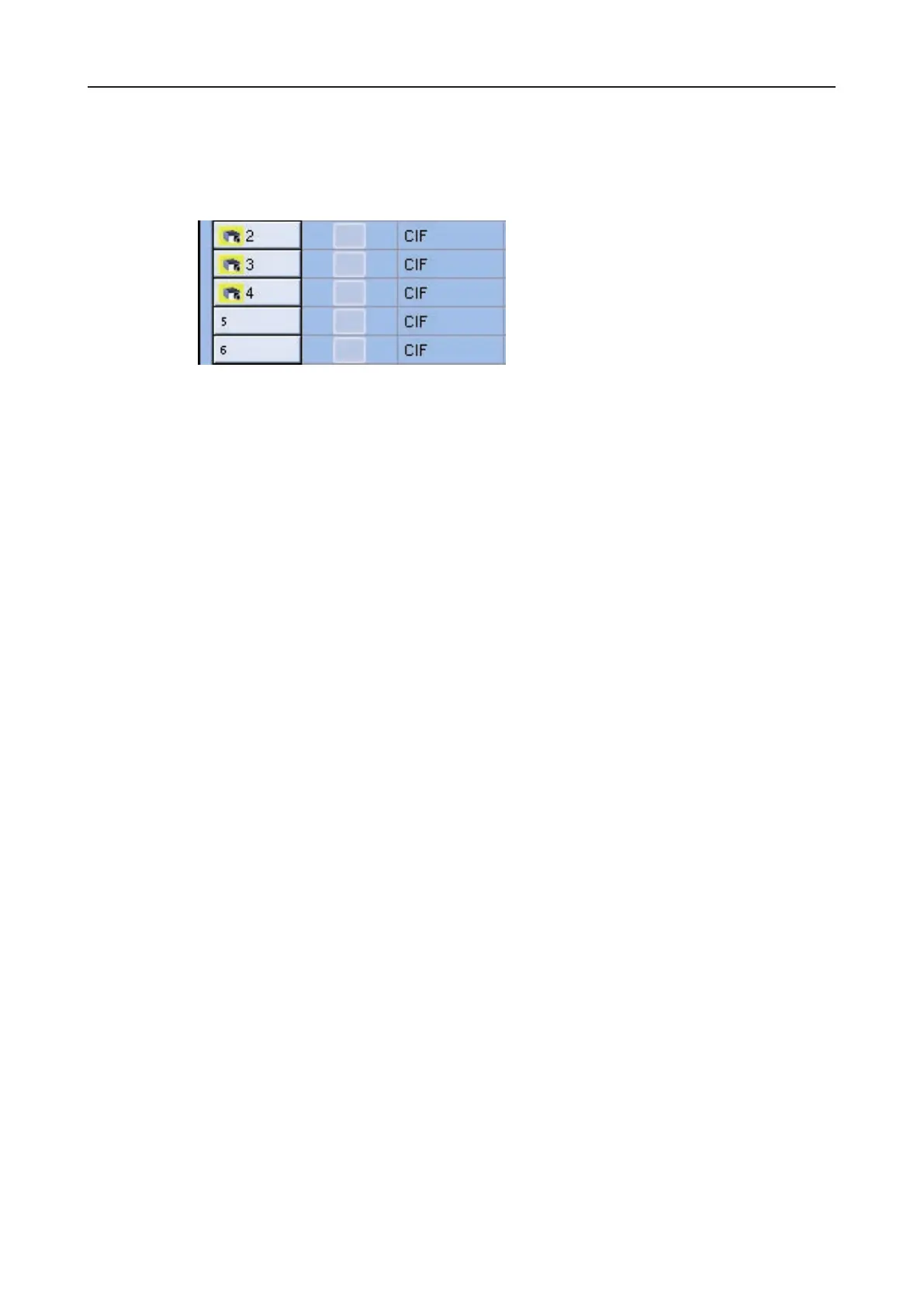

Fig. 8-7: Camera names
The recording of every camera is done in a dedicated track. Therefore camera and track
name are the same. The camera or track name initially is the number of the corresponding
video input.
Preview image
It is possible to display the current image of a camera for verication.
Ø Right-click on a camera button.
The Preview Camera x dialog will be displayed.
Ø Check the image.
Ø Conrm with OK.
Camera name
The camera name may consist of 2 x 8 alphanumeric characters (connected with a minus
sign).
Ø Left-click on a camera button.
The virtual keyboard will be displayed.
Ø Enter the camera name.
Ø Conrm with OK.
8.3.2 Camera timer
The Camera Timer allows the time-based recording of a camera in the LP-track and in
the S-track.
Note that . . .
. . . the camera timer always is activated (without inactive times) in default conguration.
. . . the camera timer can be activated or deactivated in a camera’s recording settings dialog.
