DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS
70Dallmeier electronic
Wile the previously described camera name is displayed in the live picture, the camera or
recorder description is used to clearly identify the pictures during playback.
When playing back pictures that were recorded after activating the search items, the detailed
description is displayed at the upper right.

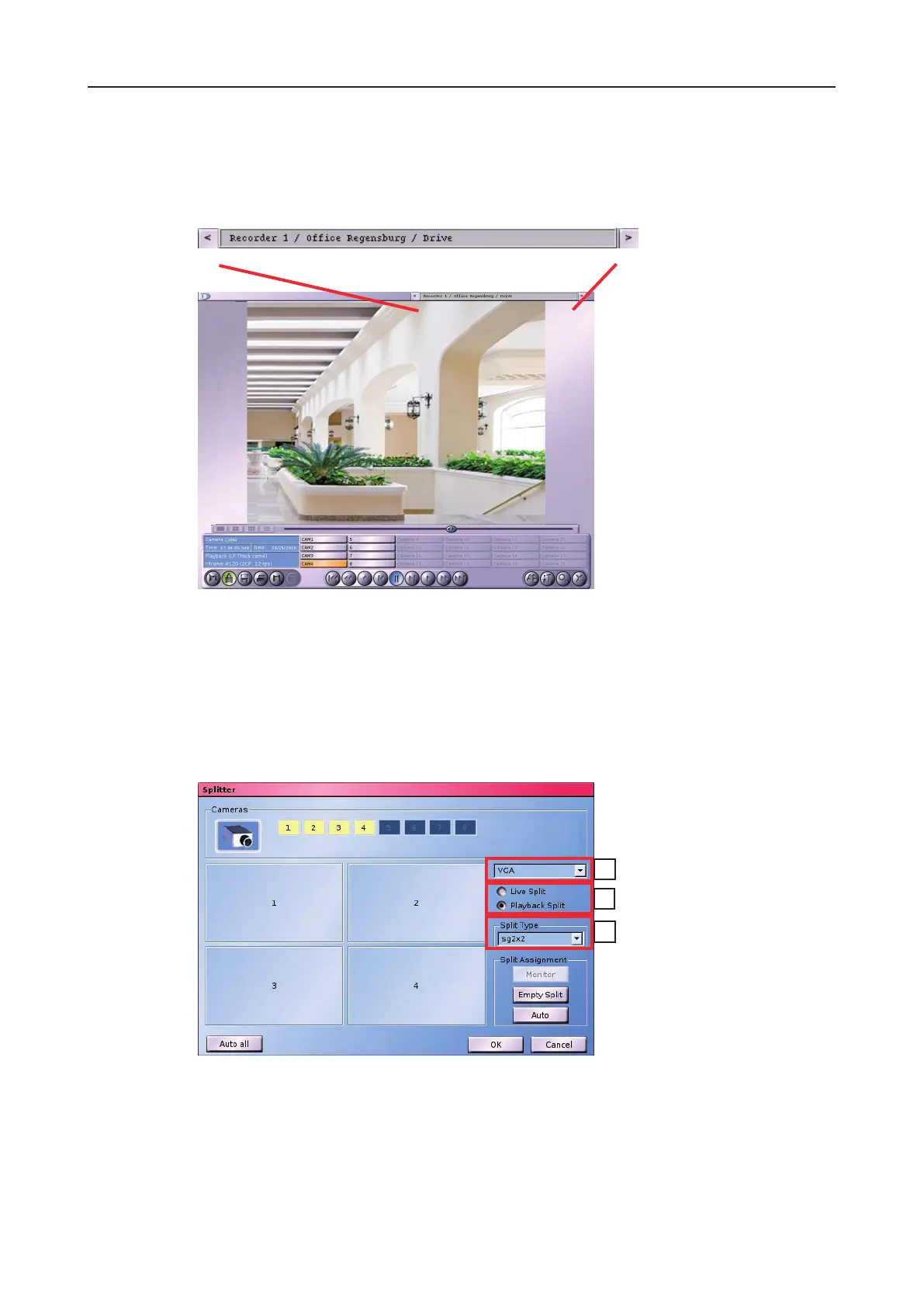

Fig. 9-3: Display during playback
9.2 Splitter
The Splitter function allows pictures from several cameras to be displayed on a single
monitor. Each camera is displayed in a so-called split.
Ø Open the Splitter dialog using Setup > System > Display > Splitter.
Fig. 9-4: Splitter dialog
All the available cameras will be displayed by a yellow button in the Cameras box.
Ø Select the cameras for which the settings are to be made (A).
A
B
C
